Description

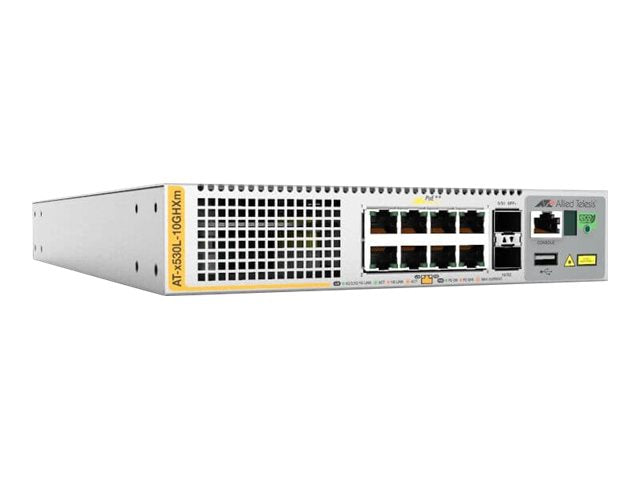

The Allied Telesis AT-X530L-10GHXM is a high-performance, stackable Layer 3 managed switch designed for next-generation enterprise and smart building networks. Equipped with 8 x multi-gigabit PoE++ ports supporting up to 5G speeds and a powerful 500W PoE budget, it efficiently powers access points, security cameras, and IoT devices. Dual 10G SFP+ uplinks ensure high-speed network aggregation, while advanced features such as AlliedWare Plus™, AMF, VCStack™, and robust Layer 3 routing protocols provide flexibility, reliability, and automation for mission-critical environments. Compact, rack-mountable, and built with full Layer 3 capabilities, it’s an ideal switch for high-density edge deployments.
| Category | Details |
|---|---|
| Model | AT-X530L-10GHXM-10 |
| Device Type | Managed Layer 3 Stackable Switch |
| Form Factor | 1U Rack-mountable |
| Ports | 8 x 100/1000/2.5G/5G RJ-45 PoE++ ports, 2 x 1/10G SFP+ uplinks |
| PoE Budget | 500 Watts (PoE++) |
| Performance | 120 Gbps switching capacity, 89.2 Mpps forwarding rate |
| Stacking | Up to 8 units, 40 Gbps stacking bandwidth |
| Memory | 1 GB DDR3 SDRAM, 256 MB Flash |
| MAC Address Table | 16K entries |
| Jumbo Frame Support | Up to 10KB |
| Operating System | AlliedWare Plus™ |
| Security & Encryption | AES (128/192/256-bit), SHA-1/2, MD5, RADIUS, TACACS+, 802.1X, DoS prevention |
| Management Protocols | SNMP (v1–v3), SSH, HTTP/HTTPS, RMON, CLI, Telnet, SFTP, SCP, NTP |
| Routing Protocols | OSPF, RIP, BGP, VRRP, PIM, ECMP, IGMP, MLD, Policy-Based Routing |
| Environmental | 0°C to 50°C (operating), -25°C to 70°C (storage), 5–90% RH (non-condensing) |
| Power Supply | Internal, AC 100–240V, 50/60Hz, 8A |
| Dimensions (WxDxH) | 21 cm x 36.2 cm x 4.25 cm |
| Weight | 3.5 kg (unit), 4.8 kg (shipping) |
| Compliance | IEEE 802 standards, FCC Class A, UL, CE, RoHS, FIPS 140-2 |
