Description

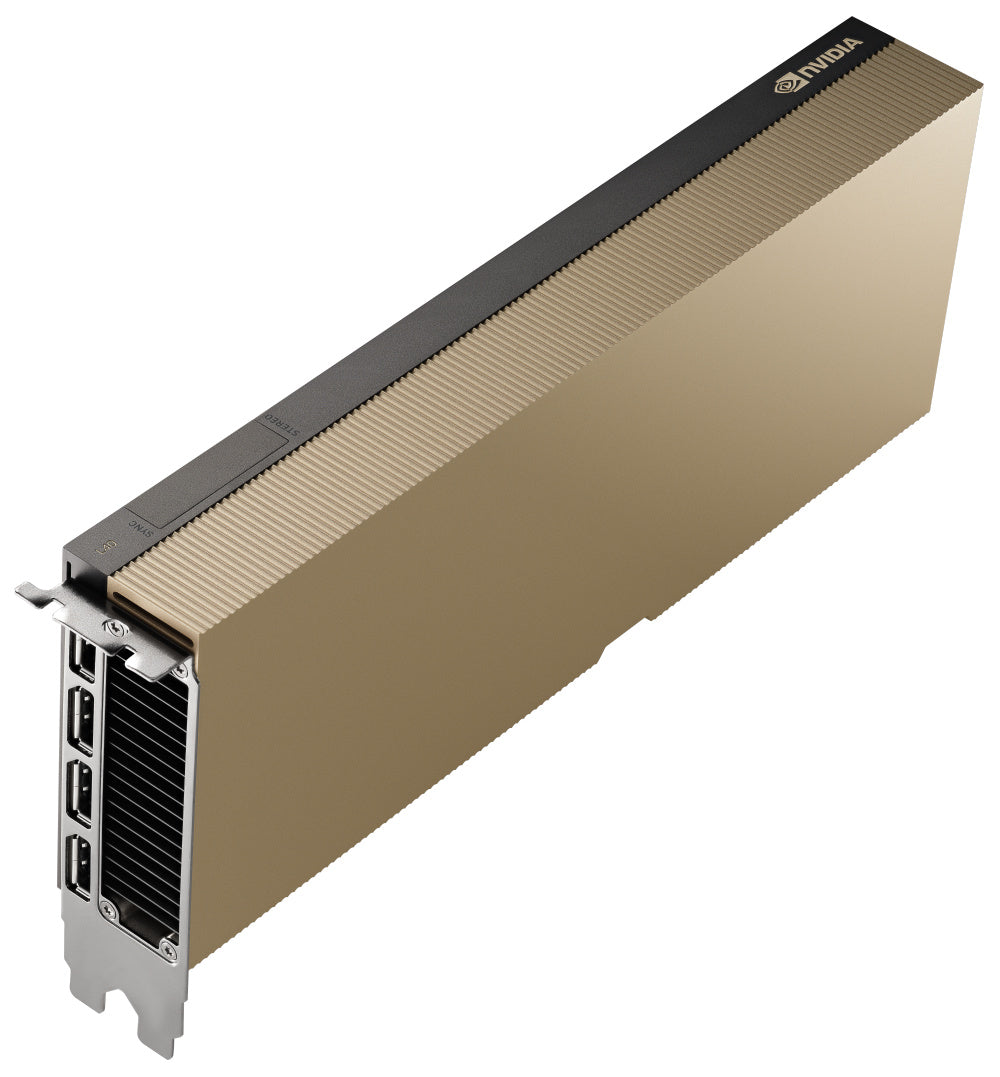

The Lenovo ThinkSystem NVIDIA L40S 48GB PCIe Gen4 Passive GPU is a high-performance data center graphics accelerator designed for demanding AI, generative AI, large language model inference and training, professional graphics, rendering, visualization, and video workloads.
Built on the NVIDIA Ada Lovelace architecture, the L40S combines 18,176 CUDA cores, 568 fourth-generation Tensor Cores, 142 third-generation RT Cores, and 48GB of GDDR6 memory to provide powerful acceleration across a wide range of enterprise applications.
With a PCIe Gen4 x16 interface, 864 GB/s memory bandwidth, hardware-based security capabilities, and support for NVIDIA RTX Virtual Workstation software, this GPU is suited for AI development, virtual workstations, 3D visualization, digital twins, media processing, and other GPU-intensive data center environments. Its passive thermal design is intended for compatible Lenovo ThinkSystem servers with appropriate system airflow and GPU enablement.
Key Features
- NVIDIA Ada Lovelace GPU architecture
- 48GB GDDR6 GPU memory
- 864 GB/s memory bandwidth
- 18,176 NVIDIA CUDA cores
- 568 fourth-generation Tensor Cores
- 142 third-generation RT Cores
- Up to 91.6 TFLOPS FP32 performance
- Up to 733 TFLOPS FP8 Tensor performance, or 1,466 TFLOPS with structural sparsity
- PCIe Gen4 x16 system interface
- Passive cooling design
- 350W maximum power consumption
- ECC memory support
- Support for NVIDIA vPC, vApps, and RTX Virtual Workstation
- Four DisplayPort 1.4a connectors, disabled by default
- Designed for generative AI, LLM workloads, rendering, visualization, video, and virtual workstations
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Lenovo |
| Product Family | ThinkSystem |
| Product Type | Data Center GPU |
| SKU / Part Number | 4X67A90669 |
| Feature Code | BYFH |
| NVIDIA Part Number | 900-2G133-2780-030 |
| GPU Model | NVIDIA L40S |
| GPU Architecture | NVIDIA Ada Lovelace |
| CUDA Cores | 18,176 |
| Tensor Cores | 568, 4th Generation |
| RT Cores | 142, 3rd Generation |
| GPU Memory | 48GB GDDR6 |
| Memory Bandwidth | 864 GB/s |
| ECC Support | Yes |
| Host Interface | PCIe 4.0 x16 |
| System Interface | PCIe Gen4, x16 lanes |
| Form Factor | PCIe Full Height, Full Length, Double Width |
| Dimensions | 10.5 × 4.4 in |
| NVIDIA Form Factor | 5.5 |
| Cooling | Passive |
| Maximum Power Consumption | 350W |
| Peak FP32 Performance | 91.6 TFLOPS |
| Peak FP16 Tensor Performance | 362.05 TFLOPS / 733 TFLOPS with structural sparsity |
| Peak TF32 Performance | 183 TFLOPS / 366 TFLOPS with structural sparsity |
| Peak BF16 Tensor Performance | 362.05 TFLOPS / 733 TFLOPS with structural sparsity |
| Peak FP8 Tensor Performance | 733 TFLOPS / 1,466 TFLOPS with structural sparsity |
| Peak INT8 Performance | 733 TOPS / 1,466 TOPS with structural sparsity |
| Peak INT4 Performance | 733 TOPS / 1,466 TOPS with structural sparsity |
| RT Core Performance | 209 TFLOPS |
| NVIDIA NVLink | Not Supported |
| Multi-Instance GPU (MIG) | Not Supported |
| SR-IOV | Supported, up to 256 Virtual Functions |
| Display Connectors | 4 × DisplayPort 1.4a, disabled by default |
| Maximum Displays | Up to four 5K displays at 60Hz or two 8K displays at 60Hz |
| Graphics APIs | DirectX 12 Ultimate, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3 |
| Compute APIs | CUDA 12.0, DirectCompute, OpenCL 3.0 |
| vGPU Software Support | NVIDIA vPC, NVIDIA vApps, NVIDIA RTX Virtual Workstation |
| Secure Boot | Supported |
| Hardware Root of Trust | Supported |
| Secure Firmware Upgrade | Supported |
| Firmware Rollback Protection | Supported |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 75°C |
| Operating Humidity | 5% to 85% |
| Storage Humidity | 5% to 95% |
| Warranty | 1-Year Limited Warranty |
| Included | NVIDIA L40S GPU with full-height adapter bracket and documentation |
| Auxiliary Power Cable | Not Included; server-specific cable may be required |
| Regulatory Approvals | RCM, BSMI, CE, FCC, ICES, KCC, cUL, UL, VCCI |
