Description

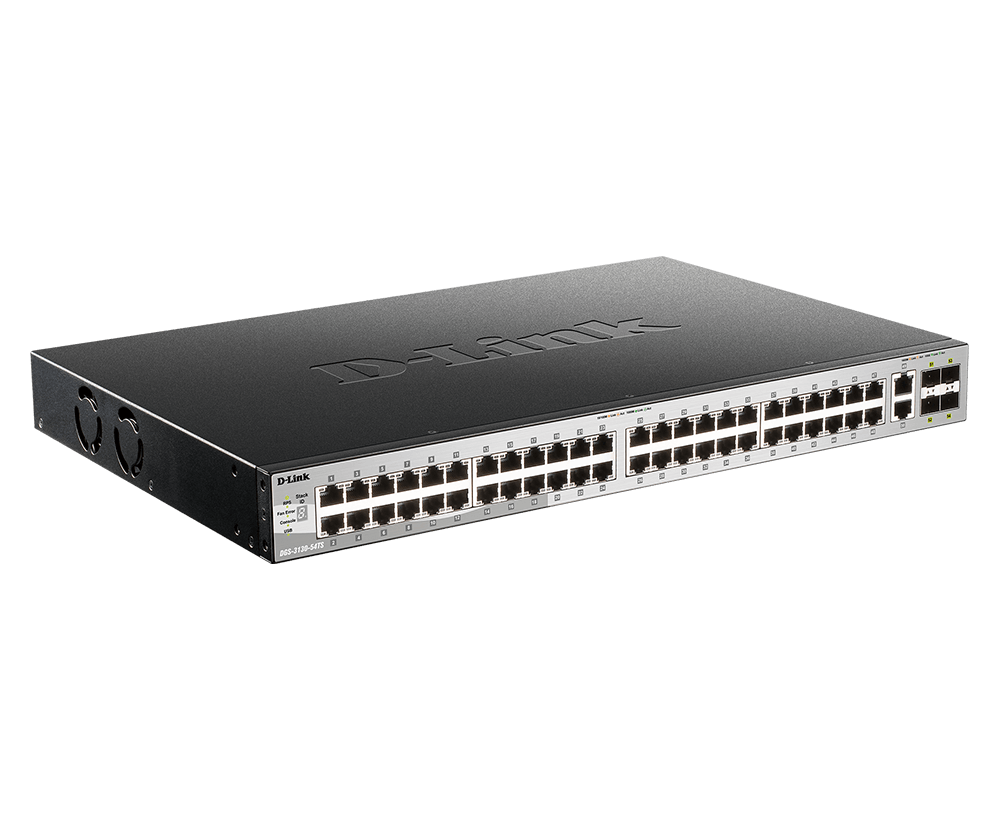

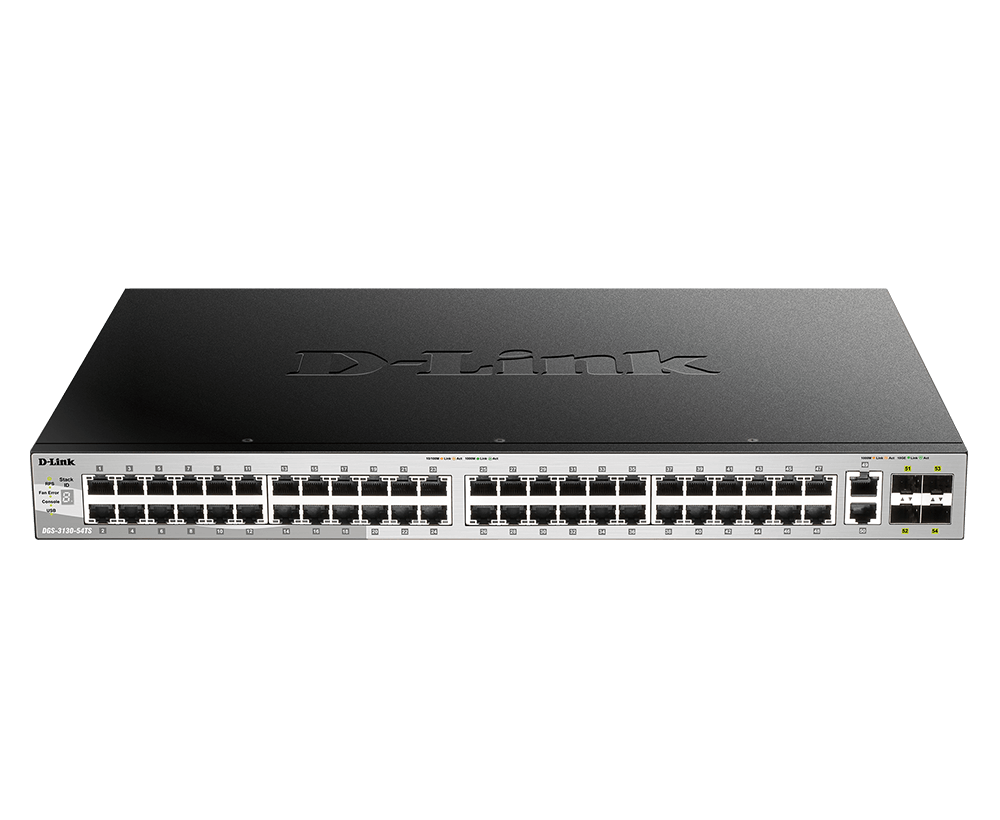

The D-Link DGS-3130-54TS is a high-performance Layer 3 stackable managed switch designed for enterprise and metro Ethernet environments that demand scalability, resilience, and advanced routing capabilities. Equipped with 48 Gigabit Ethernet ports and high-speed 10G uplinks, this switch delivers reliable access layer connectivity while supporting bandwidth-intensive applications such as VoIP, video conferencing, and IP surveillance.
Built for uptime and flexibility, the DGS-3130-54TS supports physical stacking, enabling multiple switches to operate as a single unit for simplified management and increased redundancy. Advanced Layer 3 features such as static routing, RIP, and OSPF provide efficient traffic handling across complex networks, while robust security features ensure controlled and protected access.
With integrated QoS, multicast support, and comprehensive management tools, this switch is ideal for organizations seeking a scalable, secure, and high-performance network foundation.
| Specification | Details |
|---|---|
| Switch Type | Layer 3 Stackable Managed Switch |
| Ports | 48 x 10/100/1000BASE-T Ethernet Ports |
| Uplink Ports | 2 x 10GBASE-T, 4 x 10G SFP+ |
| Stacking Capability | Supports physical stacking with up to 6 units |
| Switching Capacity | 216 Gbps |
| Forwarding Rate | 161 Mpps |
| Packet Buffer Memory | 4 MB |
| Routing Features | Static Routing, RIP/RIPng, OSPFv2/v3 |
| VLAN Support | Up to 4,000 VLAN groups, 802.1Q, Q-in-Q |
| QoS Features | 8 queues per port, traffic shaping, DSCP/CoS prioritization |
| Security Features | ACLs, DHCP Snooping, IP-MAC-Port Binding, 802.1X Authentication |
| Multicast Support | IGMP/MLD Snooping, Multicast VLAN |
| Link Aggregation | IEEE 802.3ad (up to 32 groups) |
| Redundancy | External redundant power supply support |
| Management Interfaces | Web GUI, CLI, SNMP v1/v2c/v3, Telnet, SSH |
| USB Port | 1 x USB 2.0 Type-A |
| Power Input | 100 to 240 VAC, 50/60 Hz |
| Max Power Consumption | 46.19 W |
| Dimensions | 440 x 310 x 44 mm |
| Weight | 4.2 kg |
| Operating Temperature | 0°C to 50°C |
| Humidity | 10% to 90% non-condensing |
