Description

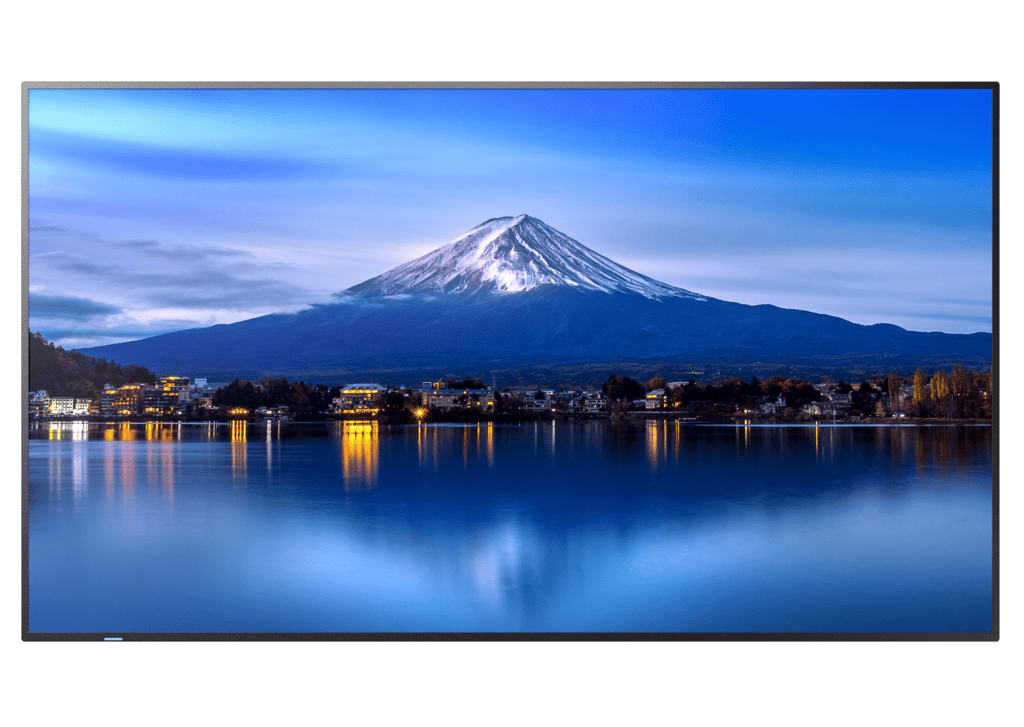

The Sharp MultiSync® P436 (PN-P436) is a 43-inch professional large format display engineered for mission-critical environments and premium commercial signage. Designed for reliability, security, and uncompromising visual performance, it delivers precision imaging backed by Sharp’s advanced SpectraView™ Engine.
With 700 cd/m² brightness and a Pro high-haze panel (25%), the P436 ensures exceptional readability in bright and high-traffic environments, reducing glare while maintaining accurate color reproduction. Its 4K UHD resolution (3840 × 2160) and IPS panel technology provide outstanding clarity, wide viewing angles, and consistent image quality across control rooms, passenger information systems, retail spaces, and corporate signage applications.
Built for 24/7 operation, the P436 features a durable all-metal chassis, flame-resistant construction, and enterprise-grade security including IEEE 802.1X LAN authentication. Native HDMI and DisplayPort daisy chaining, AV over IP compatibility, and support for Intel® SDM and Raspberry Pi compute modules offer flexible integration into modern AV ecosystems.
Designed for longevity and seamless deployment, the Sharp MultiSync® P436 delivers precision performance, day after day.
| Specification | Details |
|---|---|
| Model | PN-P436 |
| Product Series | Sharp MultiSync® P6 Series |
| Screen Size | 43" (42.5" viewable) |
| Panel Technology | IPS with Direct LED Backlight |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 700 cd/m² |
| Contrast Ratio | ≥ 8000:1 |
| Color Depth | 10-bit (1.073 billion colors) |
| Viewing Angle | 178° horizontal / 178° vertical |
| Haze Level | 25% (Pro high-haze panel) |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Supported Orientation | Landscape, Portrait, Face Up, Face Down |
| Connectivity | HDMI (In/Out), DisplayPort (In/Out), USB-C (65W), USB-A, LAN, RS-232C |
| Daisy Chaining | HDMI and DisplayPort loop-through |
| Compute Module Support | Intel® SDM (Large/Small up to 66W), Raspberry Pi (MPi4/MPi5 Kit) |
| Integrated Speakers | 10W + 10W |
| VESA Mount | 300 × 300 mm |
| Dimensions (W × H × D) | 965 × 557.2 × 66.5 mm |
| Weight | 13.5 kg |
| Operating Hours | 24/7 rated |
| Power Supply | 100–240V AC, 50/60 Hz |
| Security | IEEE 802.1X LAN, Disable HW Buttons, Emergency Notification |
| Warranty | 3 Years (including backlight) |
