Description

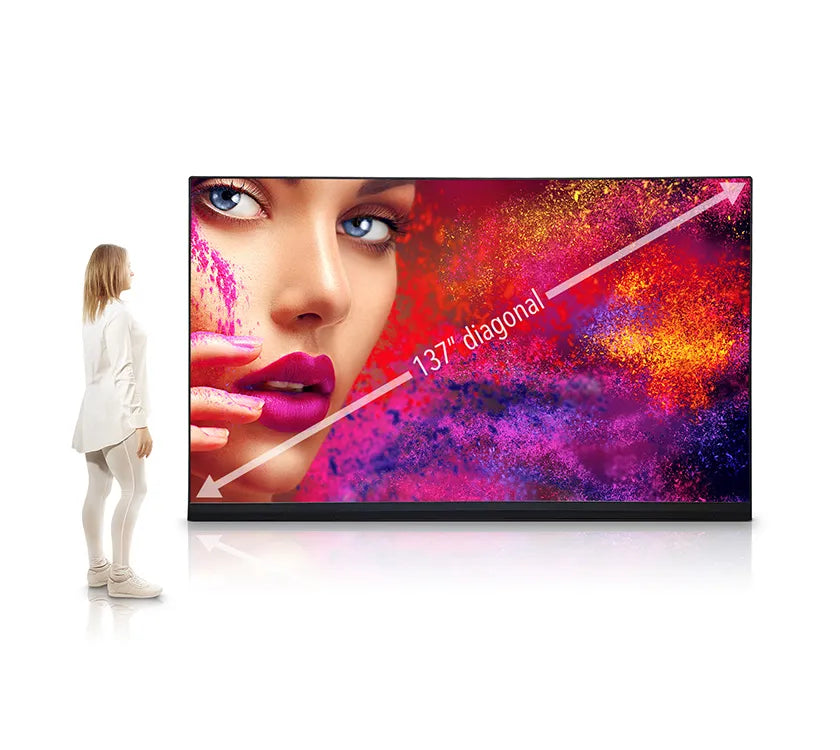

The Sharp LD-FA152-F 137-inch Direct View LED display delivers an exceptional visual experience with fine-pitch 1.58mm pixel technology and Full HD resolution. Designed for high-performance indoor environments, this all-in-one LED kit provides vibrant color accuracy, superior brightness, and seamless image clarity ideal for control rooms, corporate environments, retail displays, broadcast studios, and public venues.
Engineered with advanced Multi-Color SMD LEDs and a high refresh rate of up to 3840 Hz, the LD-FA2 Series ensures smooth, flicker-free visuals with industry-leading color depth and uniformity. Built-in data and power redundancy maximize uptime, while front-serviceable modules and hot-swappable pixel cards simplify maintenance without interrupting operations.
This complete LED solution includes everything required for deployment, from LED cabinets and controllers to mounting hardware and spare components. With its slim profile, lightweight design, and ADA-compliant installation flexibility, the LD-FA152-F is a reliable and scalable solution for mission-critical visual applications.
| Specification | Details |
|---|---|
| Display Type | Direct View LED |
| Screen Size | 137 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 1.58 mm |
| LED Type | Multi-Color SMD (1010) |
| Brightness (Typical) | 800 cd/m² |
| Brightness (Max) | 880 cd/m² |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 85° horizontal / 85° vertical |
| Refresh Rate | Up to 3840 Hz |
| Color Processing | Up to 16-bit |
| Displayable Colors | 281 trillion |
| Dimming Capability | 256 levels |
| Lifetime | 100,000 hours |
| Active Screen Area | 119.5 x 67.5 inches |
| Connectivity | HDMI, DVI-D, 3G-SDI, LAN, RS232, USB |
| External Control | GenLock, LAN |
| Power Consumption (Typical) | 1425W |
| Power Consumption (Max) | 3125W |
| Power Consumption (Min) | 700W |
| Dimensions (WxHxD) | 120.2 x 71.6 x 3.2 inches |
| Weight (Net) | 416.7 lbs |
| Serviceability | Front service access |
| IP Rating | IP20 (Indoor use) |
| Operating Temperature | -20°C to 40°C |
| Operating Humidity | 10% to 80% |
| Certifications | CCC, CE, ETL, FCC Class A, RoHS |
| Included Components | LED modules, dual controllers (redundant), wall mount, overframe kit, spare parts kit, power bar, service tool |
| Warranty | 3-year limited warranty |
