Description

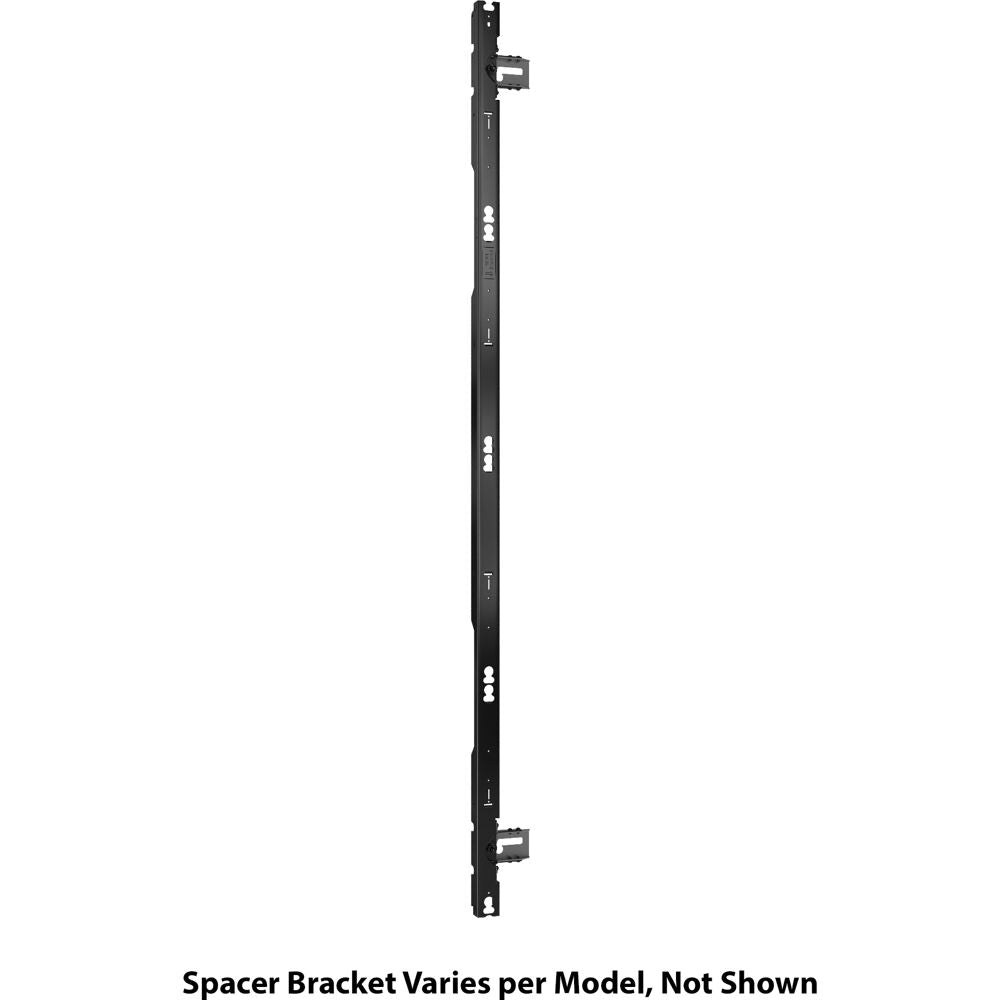

The Chief TiLED™ Left dvLED Wall Mount for Sony Crystal LED C and B Series (TILD1X5SO1-L) is a modular, precision-engineered mounting solution designed to support five Sony Crystal LED displays stacked vertically. Built for professional dvLED video wall installations, this left-side structural component integrates seamlessly with TiLED™ middle and right modules to create scalable, custom video wall configurations.
Designed for accuracy and installer efficiency, the mount features X-axis lateral shift, Y-axis vertical adjustment, and Z-axis plumb correction, allowing precise cabinet-to-cabinet alignment and compensation for wall irregularities. Offset mounting slots simplify installation while protecting LED cabinet edges from friction during placement.
As part of Chief’s standard off-the-shelf TiLED™ system, this mount ships without custom lead times or project registration, making it easy to specify, stock, and deploy. Ideal for corporate, broadcast, control room, and high-impact digital signage environments, it delivers a clean, perfectly aligned dvLED wall with professional reliability.
Compatible Sony Crystal LED models: ZRD-C12A, ZRD-C15A, ZRD-B12A, ZRD-B15A
Wall mounting structure, vertical connectors, and side covers sold separately.
| Specification | Details |
|---|---|
| SKU | TILD1X5SO1-L |
| Product Type | dvLED Wall Mount (Left Component) |
| Supported Displays | Sony Crystal LED C & B Series |
| Compatible Models | ZRD-C12A, ZRD-C15A, ZRD-B12A, ZRD-B15A |
| Number of Displays Supported | 5 (vertical configuration) |
| Orientation | Landscape |
| Application | Wall-mounted dvLED video wall |
| Adjustability | Fixed mount with lateral shift, vertical micro-adjustment, and plumb adjustment |
| X-Axis Adjustment | Lateral shift for precise horizontal alignment |
| Y-Axis Adjustment | Vertical shift for cabinet-to-cabinet alignment |
| Z-Axis Adjustment | Plumb adjustment to correct wall imperfections |
| Plumb Adjustment Range | 0.75 in (19 mm) |
| Equipment Depth Range (with display) | 4.14–4.84 in (105–123 mm) |
| Weight Capacity | 25 lb (11.3 kg) |
| Installation Components | Left mount only; structural frame and accessories sold separately |
| System Design | Modular TiLED™ system (left, middle, right components) |
| Special Features | dvLED video wall support, multi-display alignment system |
| TAA Compliant | No |
