Description

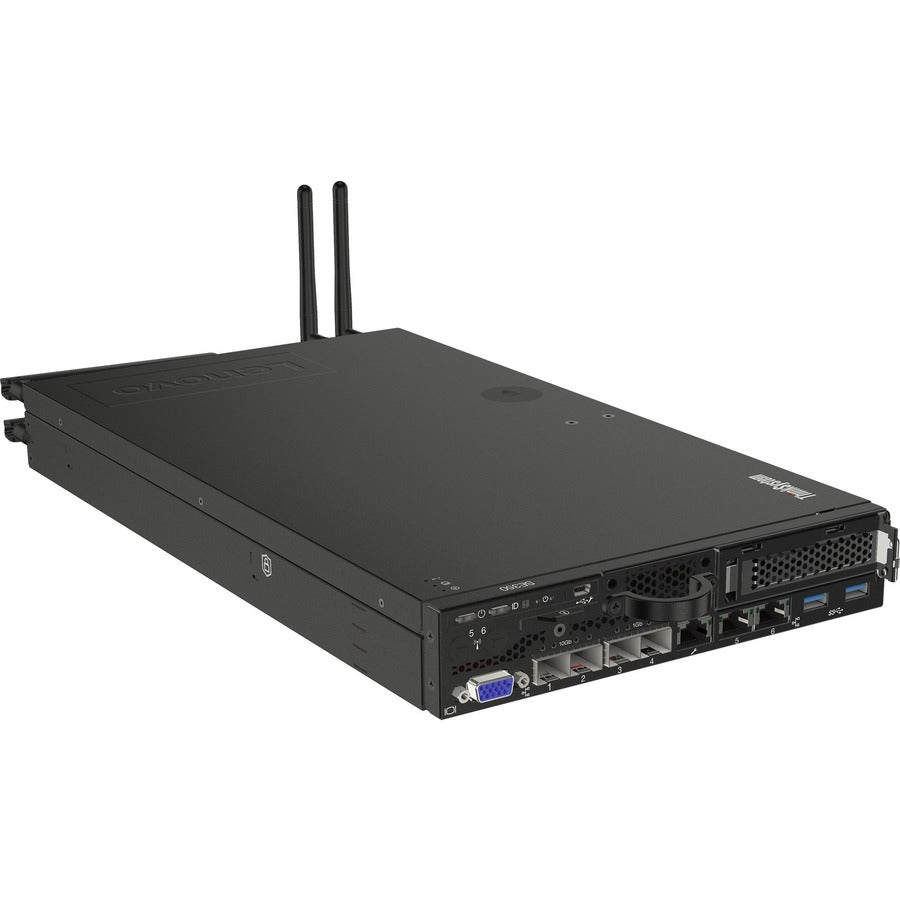

The Lenovo ThinkSystem SE350 7D1XA02ANA is a purpose-built, compact edge server designed to bring compute power, storage, and networking closer to where data is generated. Half the width and significantly shorter than traditional rack servers, the SE350 is ideal for deployment in tight or remote environments such as retail, branch offices, industrial sites, and IoT/edge computing locations.
Powered by an Intel Xeon D-2123IT 2.20 GHz Quad-Core processor, the SE350 delivers strong performance for data-intensive edge workloads. It supports up to 256 GB of TruDDR4 ECC memory for reliable and efficient operations and features robust RAID 0/1/5/10 support for enhanced data protection. The integrated Matrox G200 graphics and 10 Gigabit Ethernet connectivity ensure optimal performance for high-bandwidth applications.
With built-in wireless LAN, Lenovo XClarity Controller (XCC) for remote management, and advanced security features such as TPM 2.0, intrusion detection, and self-encrypting drive (SED) support, the SE350 ensures enterprise-grade reliability, manageability, and security. The unit’s compact size, wall-mounting capability, and support for multiple operating systems make it a versatile choice for edge-to-cloud infrastructure deployments.
| Category | Specification |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Part Number | 7D1XA02ANA |
| Product Line | ThinkSystem |
| Series | SE350 |
| Form Factor | 1U Rack Server |
| Processor | 1 x Intel Xeon D-2123IT Quad-Core 2.20 GHz |
| Cache | 8 MB |
| Chipset | Intel |
| Memory (Installed / Max) | 16 GB / 256 GB TruDDR4 ECC |
| Memory Slots (Total / Used) | 4 / 1 |
| Memory Speed | 2.67 GHz |
| Storage Controller | Serial ATA/600 |
| RAID Support / Levels | Yes / 0, 1, 5, 10 |
| Expansion Bays / Slots | 4 / 2 PCIe x16 (Gen 3.x) |
| Graphics | Matrox G200, 16 MB |
| Networking | 10 Gigabit Ethernet, Gigabit Ethernet |
| Wireless LAN | IEEE 802.11ac |
| Ports | 5 USB (2 x USB 2.0), 1 x VGA, RJ-45 |
| Remote Management | Lenovo XClarity Controller (XCC) |
| Operating System Support | Windows Server 2016/2019/2022, Red Hat Enterprise Linux 7.6–8.3, SUSE Linux Enterprise Server 15–15 SP2 |
| Power Supply | 1 x 240 W (Supports up to 2) |
| Input Voltage | 120 V AC / 230 V AC |
| Plug Type | C19 |
| Security Features | TPM 2.0, Intrusion Detection, SED Support, ThinkShield Key Vault, Front Locking Bezel, Kensington Lock |
| Dimensions (H x W x D) | 1.7" x 8.2" x 14.8" |
| Weight | 8.27 lbs |
| Warranty | 3-Year Limited Warranty |
| Package Contents | Server, 2 x AC Adapter, Rubber Feet |
