Description

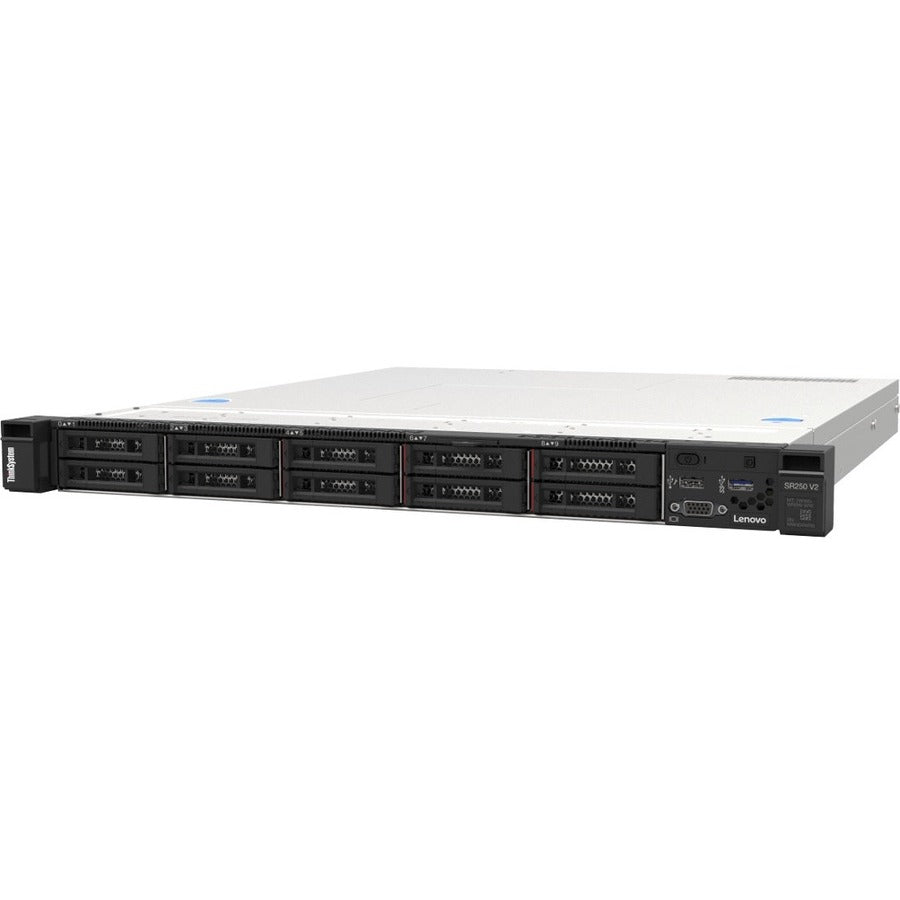

The Lenovo ThinkSystem SR250 V2 (SKU: 7D7QA021NA) is a high-performance, single-socket 1U rack server built for growing businesses, branch offices, and retail environments that require a balance of performance, scalability, and enterprise-class reliability. Powered by a 6-core Intel® Xeon® E-2336 processor running at 2.9 GHz, this server delivers robust processing capabilities with support for up to 128 GB of 3200 MHz TruDDR4 ECC memory to handle demanding workloads and future growth.
Designed for maximum flexibility, the SR250 V2 supports multiple storage configurations, including up to four 3.5-inch hot-swap drives and two M.2 drives for OS boot with RAID redundancy. Integrated dual Gigabit Ethernet ports and PCIe Gen4 expansion slots enable seamless network scalability and connectivity. The built-in Lenovo XClarity Controller simplifies management, monitoring, and deployment both locally and remotely, while advanced security features like TPM 2.0, Intel® Boot Guard, and Software Guard Extensions (SGX) ensure comprehensive protection for data and workloads.
With tool-less maintenance, redundant power supply options, and 24/7 operation capabilities, the ThinkSystem SR250 V2 delivers the performance, manageability, and reliability required to support evolving IT infrastructures.
| Feature | Specification |
|---|---|
| Model | Lenovo ThinkSystem SR250 V2 |
| SKU / Part Number | 7D7QA021NA |
| Form Factor | 1U Rack-Mount Server |
| Processor | 1 x Intel® Xeon® E-2336 (6 cores / 12 threads, 2.9 GHz base, up to 4.8 GHz Turbo, 12 MB cache, 65W) |
| Memory | 16 GB DDR4-3200 ECC UDIMM (Max: 128 GB, 4 DIMM slots) |
| Memory Type | Lenovo TruDDR4 ECC UDIMM |
| Chipset | Intel C256 (“Tiger Lake”) |
| Storage Bays | Up to 4 x 3.5" hot-swap SATA/SAS bays |
| Internal Storage Options | Up to 88 TB (4 x 22 TB 3.5" HDD) or 3.84 TB SSD; up to 2 x M.2 drives (RAID 0/1 supported) |
| Storage Controller | Onboard 6 Gb SATA with Intel RSTe (RAID 0, 1, 10, 5, 50) |
| Network Interfaces | 2 x 1GbE RJ-45 ports (Broadcom BCM5720); 1 x dedicated management port |
| Expansion Slots | Up to 3 PCIe slots (PCIe Gen4 support with Xeon CPU) |
| Graphics | Integrated ASPEED G200 (16 MB) via XClarity Controller |
| USB Ports | Front: 1 x USB 3.2 Gen1, 1 x USB 2.0; Rear: 2 x USB 3.2 Gen2 |
| Other Ports | 1 x VGA, 1 x serial, 1 x RJ-45 for management |
| Cooling | 4 x non-hot-swap system fans |
| Power Supply | Optional 1 x 450W hot-swap redundant PSU (80 PLUS Platinum) |
| Management | Lenovo XClarity Controller (XCC), XClarity Administrator, XClarity Mobile |
| Security Features | TPM 2.0, Intel Boot Guard, Intel SGX, Intel Execute Disable Bit |
| Supported Operating Systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Dimensions (W x H x D) | 435 mm x 43 mm x 545 mm (17.1 x 1.7 x 21.5 in) |
| Weight | Max. 12.3 kg (27.1 lb) |
| Warranty | 3-Year Customer Replaceable Unit (CRU) and Onsite Limited Warranty (Next Business Day) |
