Description

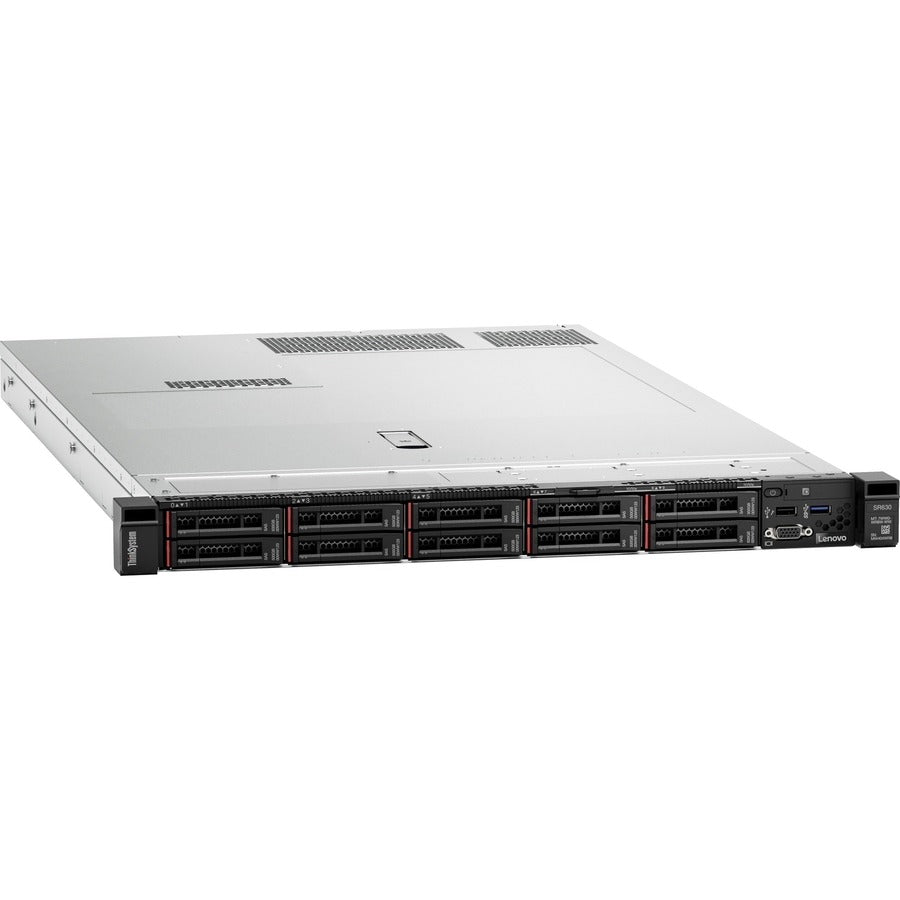

The Lenovo ThinkSystem SR630 7X02A0GVNA is a powerful 2-socket 1U rack server built to deliver exceptional performance, scalability, and reliability for businesses of all sizes. Designed to handle demanding workloads such as virtualization, cloud computing, databases, enterprise applications, and high-performance computing (HPC), the SR630 combines robust hardware capabilities with enterprise-class security and management tools.
Powered by Intel’s 2nd Generation Xeon processors and the Intel C624 chipset, the SR630 supports up to 7.50 TB of TruDDR4 memory, ensuring seamless multitasking and future scalability. With integrated Intel Optane Memory support, Gigabit Ethernet connectivity, and Matrox G200e graphics, this server offers enterprise-grade features in a compact 1U form factor. The ThinkSystem SR630 is also engineered for energy efficiency and includes advanced security options such as secure firmware updates and TPM. Whether deployed in a data center or enterprise environment, this server delivers the flexibility, manageability, and performance needed for mission-critical operations.
| Category | Specification |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Part Number | 7X02A0GVNA |
| Product Line | ThinkSystem |
| Product Series | SR630 |
| Product Model | 7X02A0GVNA |
| Form Factor | 1U Rack Server |
| Processor Support | Up to 2 x Intel Xeon 2nd Gen |
| Chipset | Intel C624 |
| Memory (Standard) | 16 GB TruDDR4 |
| Maximum Memory | Up to 7.50 TB |
| Memory Slots | 24 DIMM slots (1 populated) |
| Memory Technology | TruDDR4 |
| Memory Speed | 2.93 GHz |
| Intel Optane Memory Ready | Yes |
| Storage Controller | Serial ATA, 12Gb/s SAS |
| RAID Support | Yes |
| Graphics Controller | Matrox G200e |
| Graphics Memory | 16 MB |
| Networking | Gigabit Ethernet |
| I/O Ports | 4 x USB (1 x USB 2.0, 3 x USB 3.0), 1 x VGA, 1 x RJ-45 |
| Remote Management | Lenovo XClarity Controller |
| Supported Operating Systems | Windows Server 2016/2019, Red Hat Enterprise Linux (7.6 – 8.3), SUSE Linux Enterprise Server (12 SP4 – 15 SP3) |
| Input Voltage | 120 V AC / 230 V AC |
| Power Supplies Supported | Up to 2 |
| Dimensions (H x W x D) | 1.7" x 17.1" x 29.5" |
| Weight | 41.45 lbs |
| Security Features | Power-on password, Administrator password, Secure firmware updates, TPM 1.2/2.0 (UEFI configurable) |
| Energy Efficiency | ENERGY STAR 3.0 Certified |
| Environmental Compliance | RoHS |
| Warranty | 3-Year Limited Warranty |
| Package Contents | ThinkSystem SR630 Server, Slide Rail Kit |
