Description

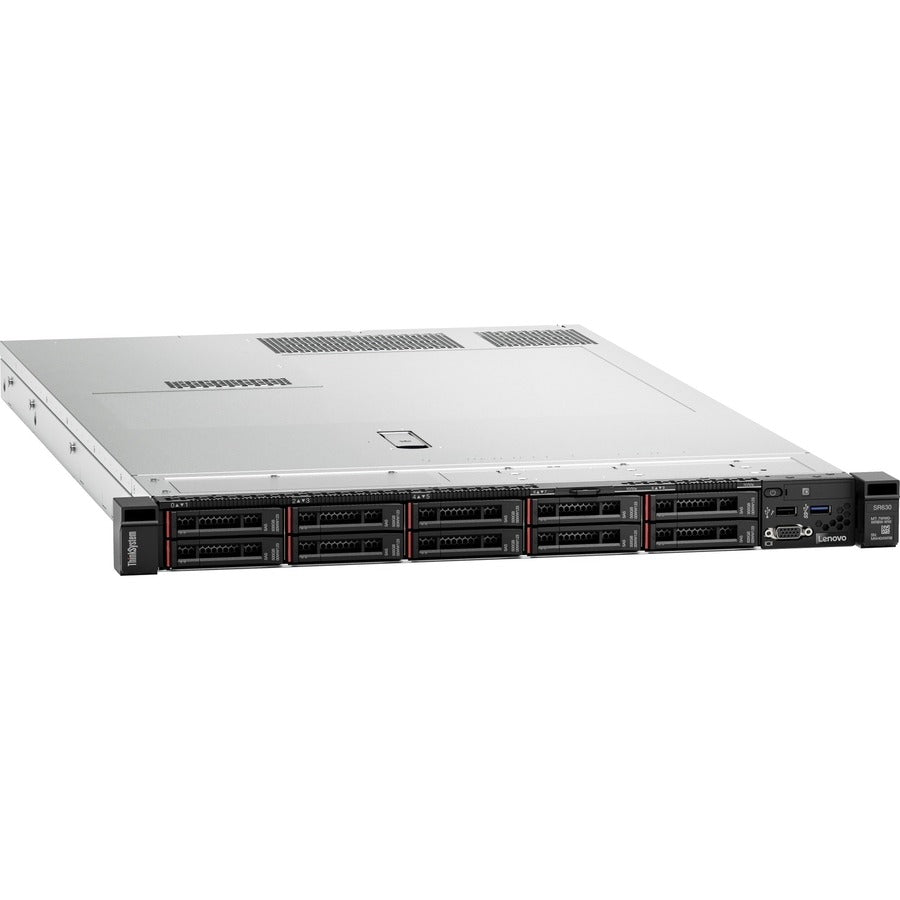

The Lenovo ThinkSystem SR630 7X02A0GYNA is a high-performance 1U rack server designed to deliver outstanding reliability, flexibility, and scalability for enterprise workloads. Powered by a 2nd Gen Intel Xeon Silver 4216 16-core processor and 32 GB TruDDR4 ECC memory, this server ensures seamless multitasking and optimized performance for virtualization, cloud computing, database management, and business-critical applications.
Equipped with Intel C624 chipset, Gigabit Ethernet, and integrated Matrox G200e graphics, the SR630 provides robust connectivity and efficient management through Lenovo XClarity Controller. Its support for dual processors, Intel Optane memory, and registered memory modules future-proofs your IT infrastructure, while the 1 x 750 W hot-swappable power supply ensures maximum uptime. Ideal for organizations seeking a compact yet powerful solution, the SR630 is built to support demanding enterprise environments with enhanced security features, TPM support, and energy-efficient design.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Model | ThinkSystem SR630 7X02A0GYNA |
| Form Factor | 1U Rack Server |
| Processor | 1 x Intel Xeon Silver 4216, 2.10 GHz, 16 cores (Hexadeca-core), 22 MB Cache |
| Processor Support | Up to 2 Processors |
| Chipset | Intel C624 |
| Memory | 32 GB TruDDR4 ECC Registered (Buffered), 2.93 GHz |
| Memory Slots | 24 (1 occupied) |
| Intel Optane Memory Ready | Yes |
| Storage Controller | Serial ATA/600 |
| Storage | No pre-installed drives |
| Graphics | Matrox G200e with 16 MB |
| Network | Gigabit Ethernet |
| Remote Management | Lenovo XClarity Controller (XCC) |
| Ports | 4 USB (1 x USB 2.0, 3 x USB 3.0), VGA, RJ-45 |
| Supported OS | Windows Server 2016/2019/2022, Red Hat Enterprise Linux, SUSE Linux Enterprise Server |
| Power Supply | 1 x 750 W Hot-Swappable PSU (supports up to 2) |
| Input Voltage | 120 V AC / 230 V AC |
| Plug Type | C13/C14 |
| Physical Dimensions | Height: 1.7" / Width: 17.1" / Depth: 29.5" |
| Weight | Approx. 41.45 lbs |
| Security Features | Power-on & admin password, secure firmware updates, TPM, SEDs support |
| Energy Efficiency | Energy Star Certified |
| Warranty | 3-Year Limited Warranty |
| Included Accessories | Slide Rail Kit, 2.8 m C13-C14 Power Cable |
