Description

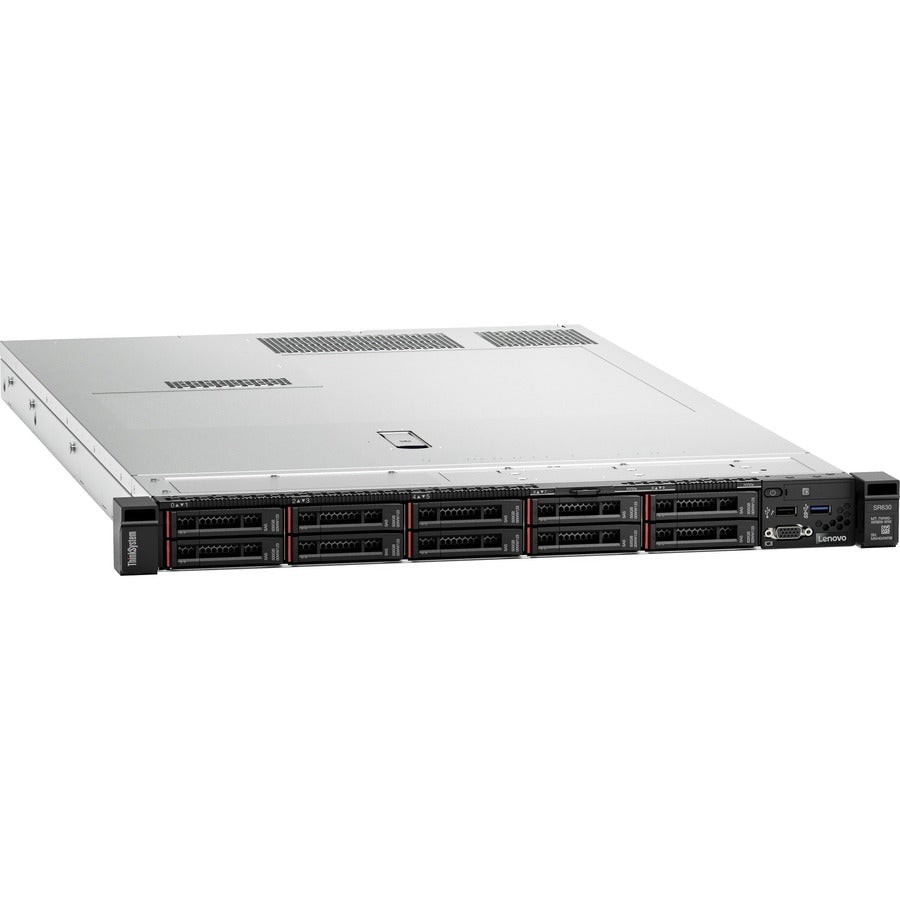

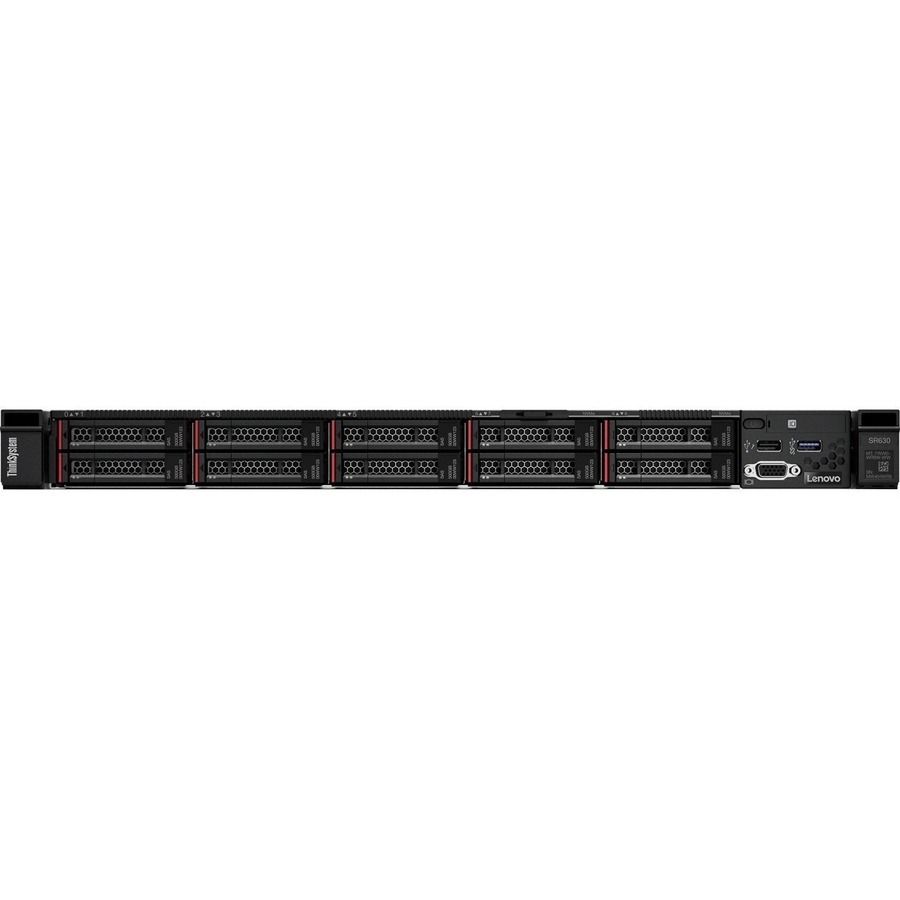

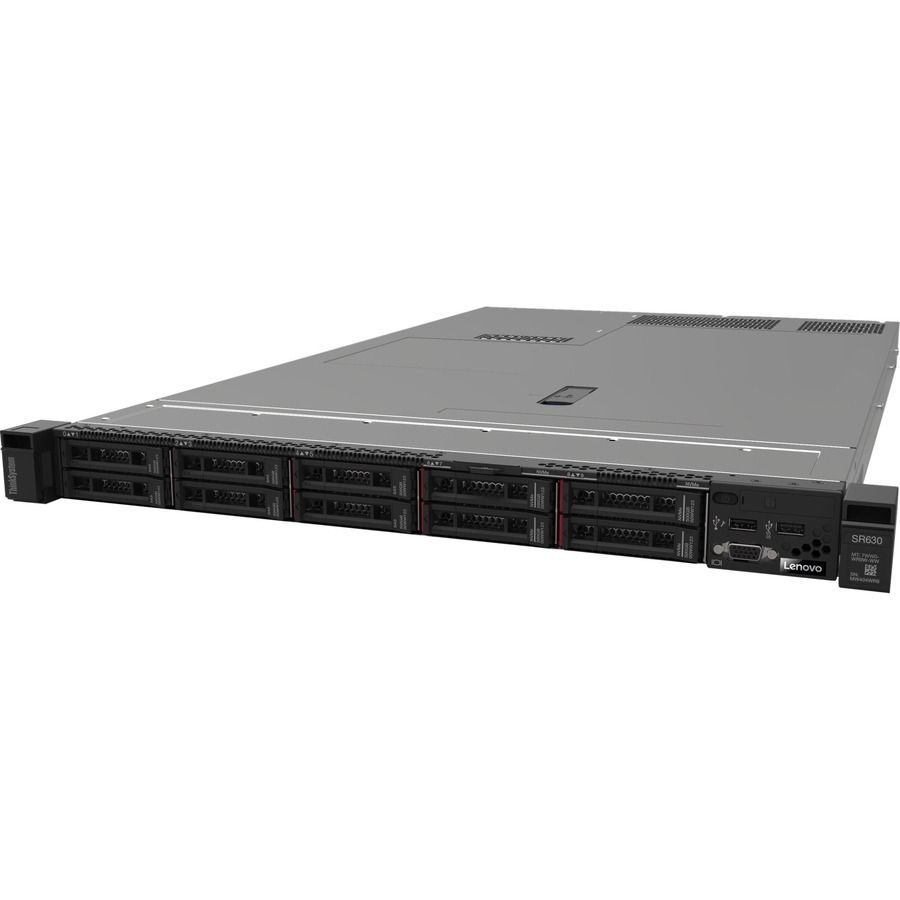

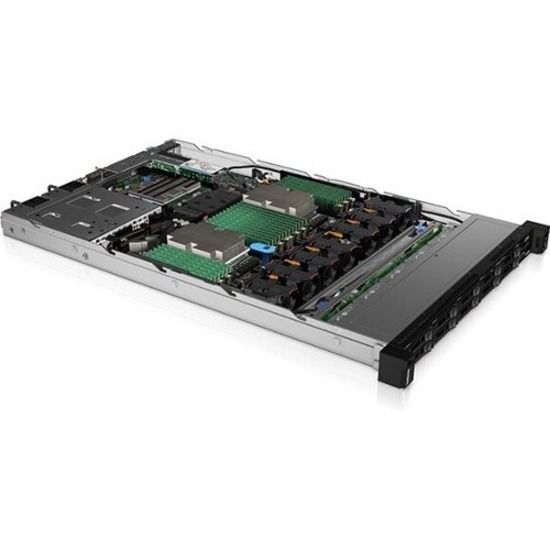

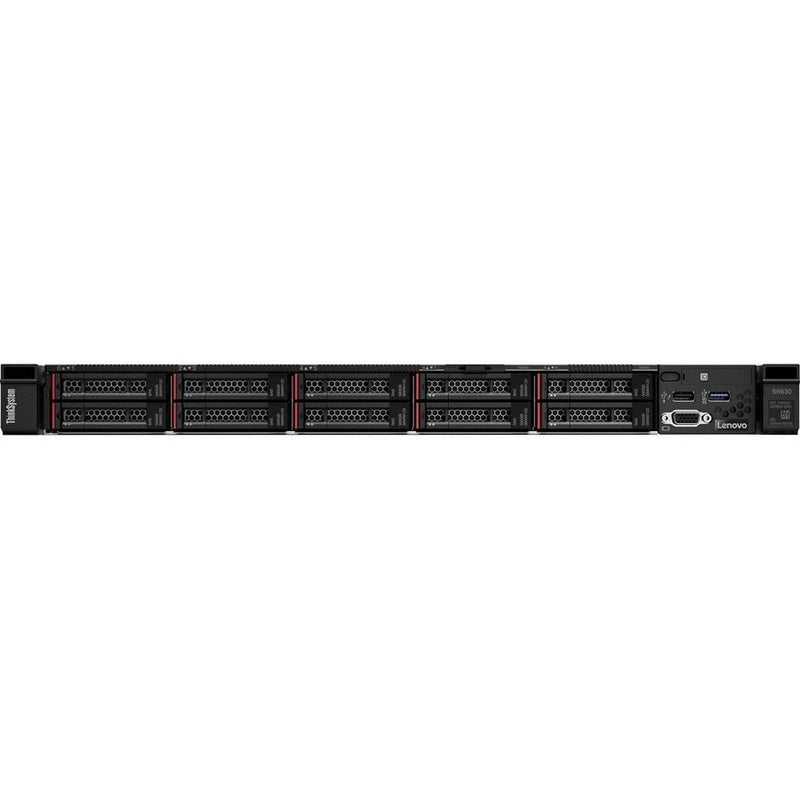

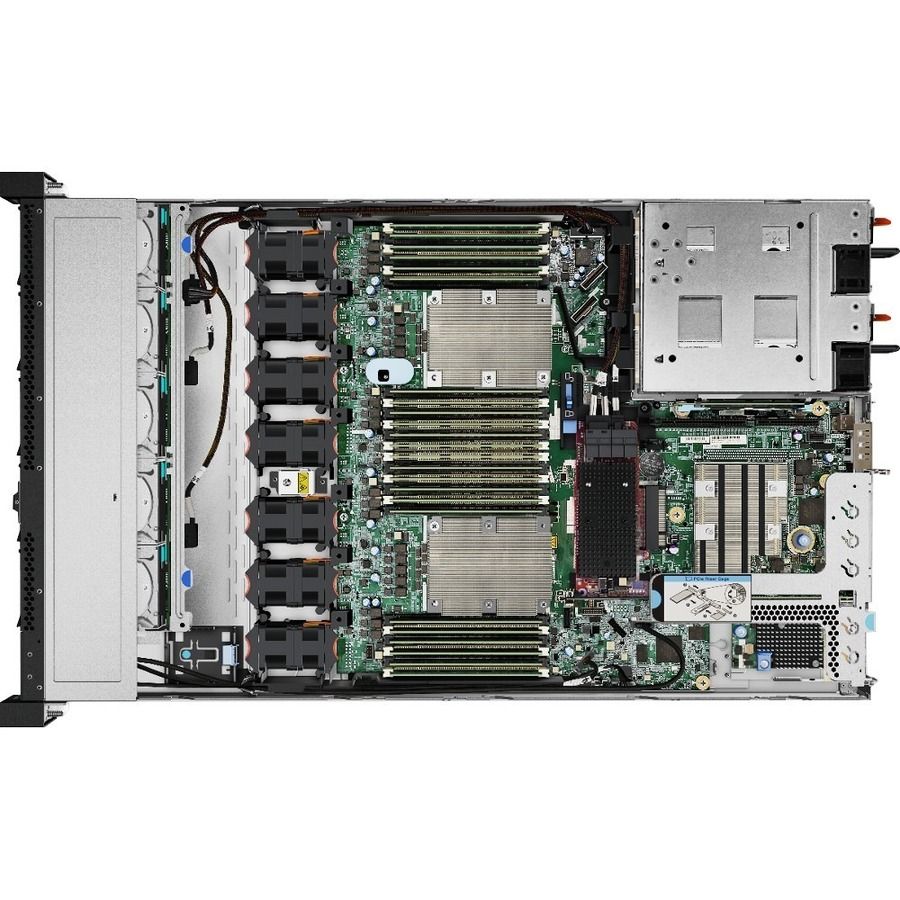

The Lenovo ThinkSystem SR630 7X02A0H9NA is a high-performance 1U rack server engineered for demanding enterprise environments, from small businesses to large data centers. Powered by a 2nd Gen Intel® Xeon® Gold 5218 16-core processor and built on the reliable Intel C624 chipset, it delivers exceptional compute power and scalability for virtualization, database management, cloud computing, virtual desktop infrastructure (VDI), and mission-critical workloads.
With support for up to 2 processors and 3 TB of TruDDR4 ECC memory, the SR630 ensures optimal performance and flexibility for future growth. Enhanced by Intel Optane™ Memory Ready technology, it accelerates storage performance and application responsiveness. Integrated Gigabit Ethernet, a Matrox G200e graphics controller, and robust security features such as Trusted Platform Module (TPM) and secure firmware updates make it a secure and versatile choice.
Designed with enterprise-grade reliability and simplified management in mind, the SR630 includes tool-less slide rails, redundant power options, and broad OS compatibility, making it an ideal solution for modern IT infrastructure.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Part Number | 7X02A0H9NA |
| Product Line / Series | ThinkSystem SR630 |
| Form Factor | 1U Rack Server |
| Processor | 1 x Intel Xeon Gold 5218 (2nd Gen) – 16 Cores – 2.30 GHz – 22 MB Cache |
| Processor Support | Up to 2 processors |
| Chipset | Intel C624 |
| Memory (Standard / Max) | 32 GB TruDDR4 ECC / Up to 3 TB |
| Memory Speed | 2933 MHz |
| Total Memory Slots | 24 (1 occupied) |
| Intel Optane Ready | Yes |
| Storage Controller | Serial ATA/600, 12Gb/s SAS |
| Storage Capacity | Not included (expandable) |
| Optical Drive | Not included |
| Graphics | Matrox G200e, 16 MB |
| Network | Dual Gigabit Ethernet (2 x RJ-45) |
| I/O Ports | 4 x USB (1 x USB 2.0, 3 x USB 3.0), 2 x RJ-45, VGA |
| Expansion / Connectivity | Supports tool-less slide rails |
| Operating System Support | Windows Server 2016/2019/2022, Red Hat Enterprise Linux 7.6-8.4, SUSE Linux Enterprise Server 12 SP4-15 SP3 |
| Power Supply | 1 x 750 W (supports up to 2) – 120/230 V AC – C13/C14 connector |
| Dimensions (H x W x D) | 1.7" x 17.1" x 29.5" |
| Weight | Approx. 41.45 lb |
| Security Features | Power-on & Admin Passwords, Secure Firmware Updates, TPM 1.2/2.0 (configurable) |
| Energy Efficiency | ENERGY STAR® certified, environmentally friendly |
| Warranty | 3-Year Limited Warranty |
