Description

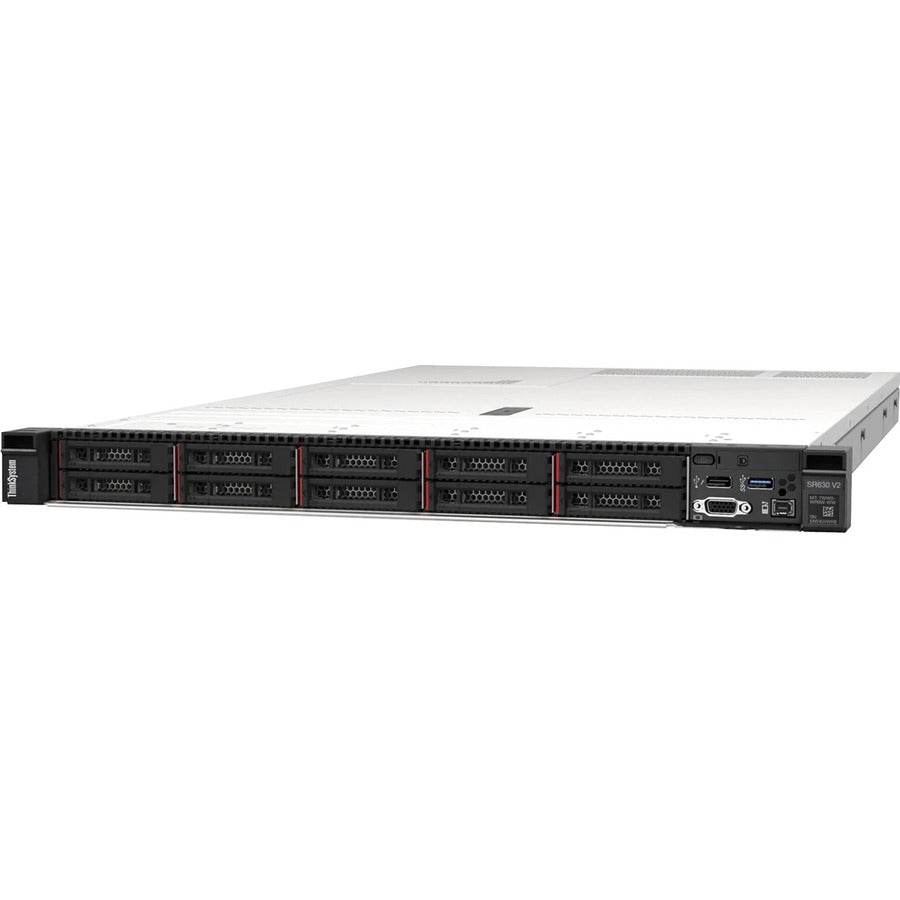

The Lenovo ThinkSystem SR630 V2 7Z71A01ENA is a powerful and versatile 2-socket 1U rack server designed to meet the performance, reliability, and scalability demands of modern businesses — from small enterprises to large data centers. Built with Intel® C621A chipset and dual-processor support, this server delivers outstanding compute power for a wide range of workloads including databases, virtualization, cloud computing, virtual desktop infrastructure (VDI), infrastructure security, enterprise applications, streaming media, and high-performance computing (HPC).
With support for up to 4TB of TruDDR4 ECC memory, advanced RAID configurations (0, 1, 5, 10), and hot-swappable bays, the SR630 V2 ensures maximum uptime and service continuity. It also features Matrox G200 graphics, Gigabit Ethernet, and comprehensive management capabilities via the XClarity Controller (XCC). Designed for energy efficiency and security, it supports trusted platform modules, self-encrypting drives, and multiple enterprise operating systems including Windows Server, Red Hat Enterprise Linux, and SUSE Linux Enterprise Server.
Whether you’re scaling infrastructure or optimizing existing workloads, the Lenovo ThinkSystem SR630 V2 provides the agility, performance, and reliability your business needs for future growth.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Model | ThinkSystem SR630 V2 |
| Part Number (SKU) | 7Z71A01ENA |
| Form Factor | 1U Rack Server |
| Processor Support | Up to 2 x Intel® Xeon® Scalable Processors |
| Chipset | Intel® C621A |
| Max Memory Supported | Up to 4 TB TruDDR4 ECC Registered (Buffered) |
| Memory Slots | 32 |
| Memory Speed | 3.20 GHz |
| RAID Support | Yes – Levels 0, 1, 5, 10 |
| Controller Type | Serial ATA/600 |
| Controller Model | Intel RSTe |
| Hot Swappable Bays | Yes |
| Graphics Controller | Matrox G200 |
| Graphics Memory | Up to 16 MB |
| Network Connectivity | Gigabit Ethernet |
| Ports | 6 x USB (1 x USB 2.0), 1 x RJ-45, 1 x VGA |
| Remote Management | XClarity Controller (XCC) |
| Operating Systems Supported | Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server |
| Power Supply Support | Up to 2 x 230 V AC |
| Power Connector Type | C13/C14 |
| Dimensions (H x W x D) | 1.7" x 17.3" x 30.4" |
| Weight | Approx. 57.98 lbs (26.3 kg) |
| Security Features | TPM, Administrator & Power-On Password, Self-Encrypting Drive Support |
| Certifications | ENERGY STAR 3.0, EPEAT Bronze, RoHS, CELP, CECP |
| Environmental Compliance | Yes – Environmentally Friendly |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 40 lbs |
