Description

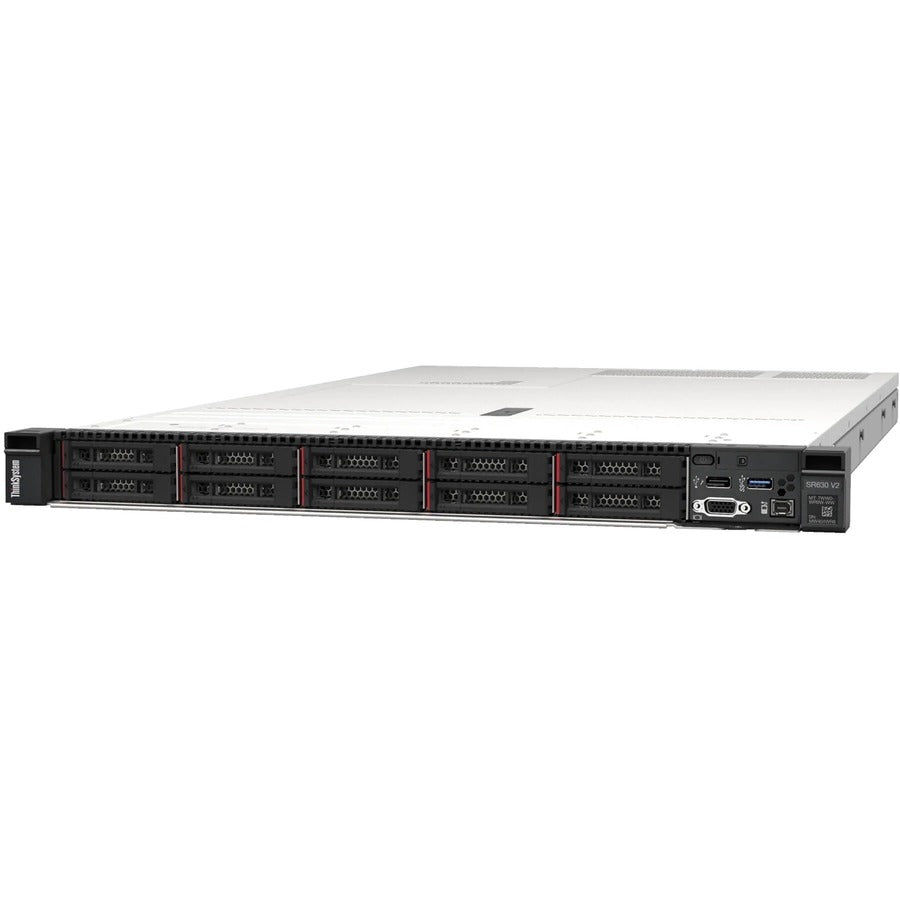

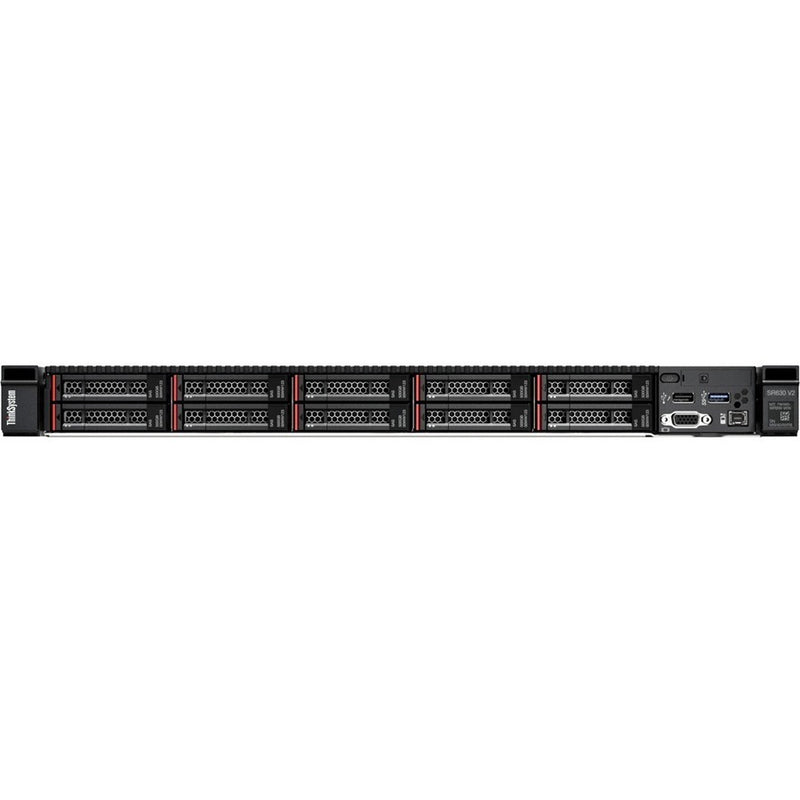

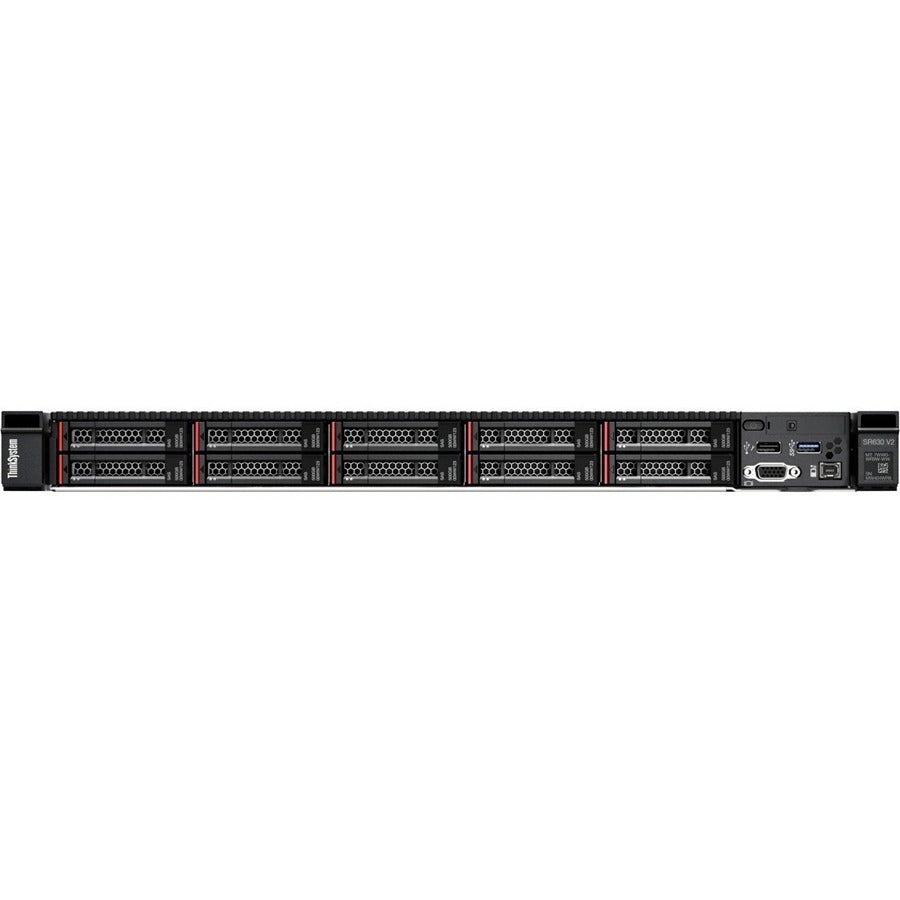

The Lenovo ThinkSystem SR630 V2 7Z71A04XNA is a high-performance, 2-socket 1U rack server engineered for enterprise-grade reliability, scalability, and security. Designed to excel in diverse workloads — from databases, virtualization, and cloud computing to VDI, enterprise applications, and high-performance computing — it delivers exceptional performance and future-ready flexibility.
Powered by the Intel Xeon Silver 4309Y processor and TruDDR4 memory technology with support for up to 8 TB RAM, this server ensures robust processing power and memory scalability. It also offers flexible storage options with support for JBOD and multiple RAID levels, making it ideal for demanding IT environments. With advanced manageability through Lenovo XClarity Controller, built-in security features like TPM 2.0, and efficient energy certifications, the SR630 V2 is a cost-effective and reliable backbone for modern data centers and enterprise infrastructure.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Part Number | 7Z71A04XNA |
| Product Line | ThinkSystem |
| Series | SR630 V2 |
| Form Factor | 1U Rack Server |
| Processor | 1 x Intel Xeon Silver 4309Y, 8 Cores, 2.80 GHz |
| Processor Support | Up to 2 Processors |
| Chipset | Intel C621A |
| Cache | 18 MB |
| Memory | 32 GB TruDDR4 ECC Registered (Buffered) |
| Maximum Memory Supported | Up to 8 TB |
| Memory Slots | 32 (1 occupied) |
| Memory Clock Speed | 3.20 GHz |
| Intel Optane Ready | Yes |
| RAID Support | 0, 1, 5, 10, JBOD |
| Controller | Intel RSTe RAID, Serial ATA/600, 12Gb/s SAS |
| Graphics | Matrox G200, 16 MB |
| Networking | Gigabit Ethernet |

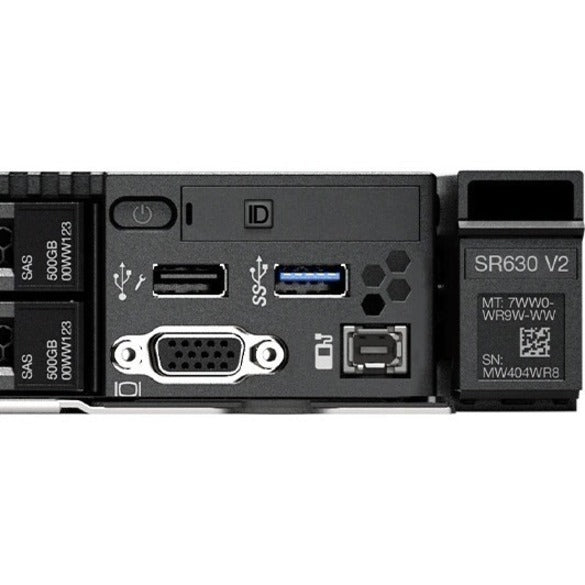

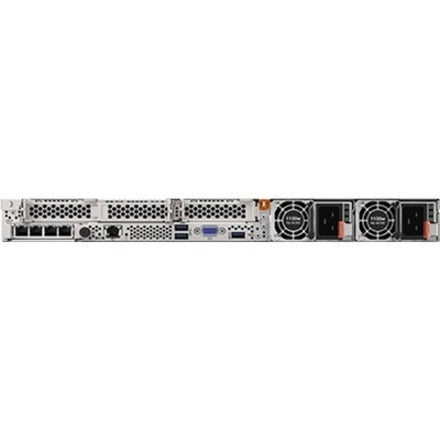

| Ports | 6 x USB, 1 x VGA, 1 x RJ-45 |
| Remote Management | Lenovo XClarity Controller (XCC) Enterprise |
| Supported Operating Systems | Windows Server 2016/2019/2022, RHEL 7.9/8.2–8.5, SUSE 12 SP5, 15 SP2/SP3 |
| Power Supply | 1 x 750 W (Hot-swappable, Supports 2) |
| Input Voltage | 120 V AC / 230 V AC |
| Plug Type | C13/C14 |
| Expansion | Intel Optane Memory Ready |
| Security Features | TPM 2.0, Chassis Intrusion Switch, Power-on & Admin Password |
| Energy Efficiency | ENERGY STAR 3.0, CECP, RoHS Compliant |
| Physical Dimensions | 1.7" H x 17.3" W x 30.4" D |
| Weight | 57.98 lb |
| Warranty | 3-Year Limited Warranty |
| Condition | New and Factory Fresh |
| Shipping Weight | 1 lb |
