Description

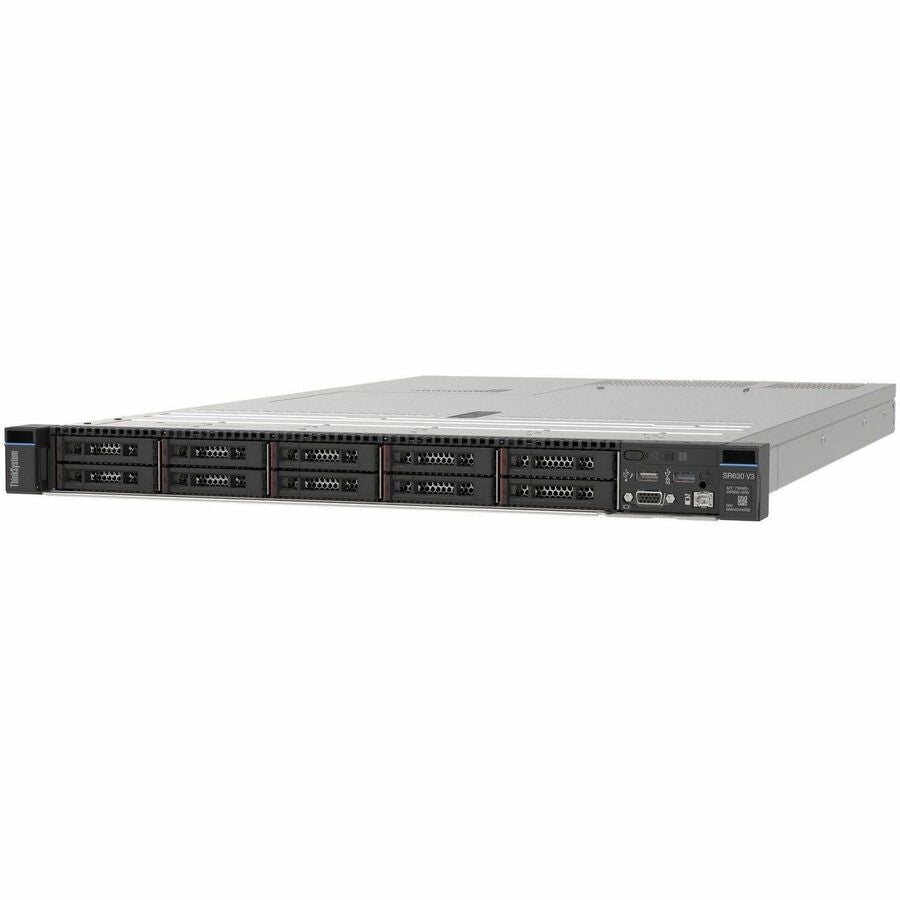

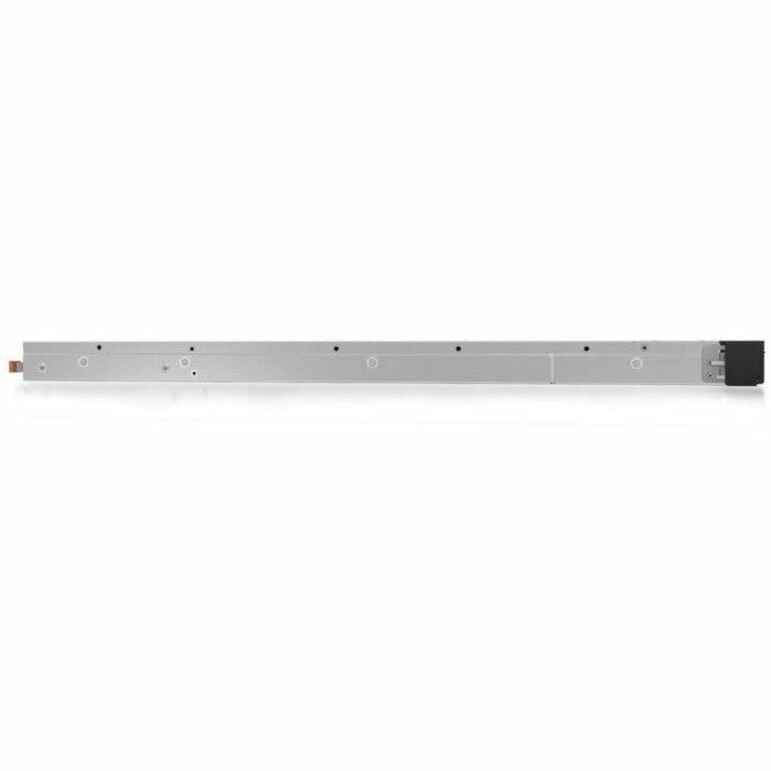

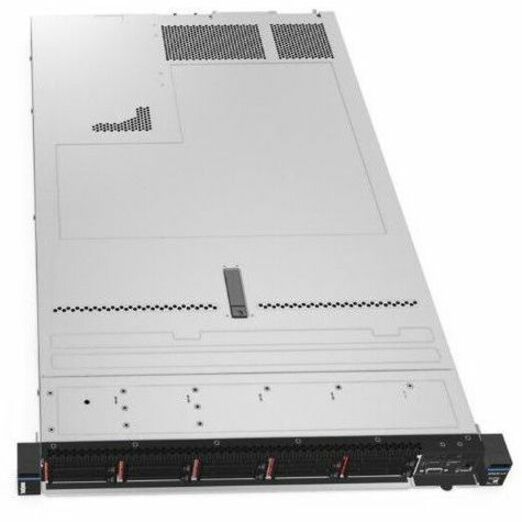

The Lenovo ThinkSystem SR630 V3 7D731000NA is a high-performance, pre-configured 1U rack server designed to deliver exceptional performance, scalability, and reliability for modern enterprise workloads. Powered by a 4th Gen Intel® Xeon® Silver 4410T 10-core processor and equipped with 64 GB TruDDR5 ECC memory and 5.76 TB SSD storage (3 x 1.92TB), this server is optimized for virtualization, cloud computing, databases, VDI, and mission-critical business applications.
With support for up to 8 TB of memory, dual processors, and 8 hot-swappable SFF bays, the SR630 V3 delivers outstanding flexibility and expansion potential. It features 10 Gigabit Ethernet connectivity, a 12Gb/s SAS controller, multiple RAID levels, and advanced remote management through XClarity Controller (XCC) Platinum. Enhanced security is built-in with TPM 2.0, chassis intrusion protection, and platform firmware resiliency.
Whether deployed in data centers, edge environments, or enterprise IT infrastructures, the SR630 V3 offers a perfect balance of compute power, storage performance, and enterprise-grade features — all in a compact 1U rack-mountable form factor.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Part Number | 7D731000NA |
| Product Line / Series | ThinkSystem SR630 V3 |
| Form Factor | 1U Rack Server |
| Processor | 1 x Intel Xeon Silver 4410T (10-Core, 2.70 GHz, 26.25 MB Cache) |
| Processor Support | Up to 2 Processors |
| Chipset | Intel C741 |
| Memory | 64 GB TruDDR5 ECC Registered (2 of 32 DIMM slots used) |
| Max Memory Supported | Up to 8 TB |
| Storage | 5.76 TB SSD (3 x 1.92TB SATA, hot-swappable) |
| RAID Support | 0, 1, 5, 10, JBOD |
| Controller | 12Gb/s SAS, 5350-8i |
| Expansion Bays | 8 x 2.5" SFF Bays (Hot-swappable) |
| Expansion Slots | 2 (1x PCIe x16 full-height half-length, 1x PCIe x16 low-profile) |
| Network | 10 Gigabit Ethernet (2 x RJ-45) |
| Graphics | 16 MB |
| USB Ports | 6 (1 x USB 2.0) |
| Video Ports | 2 x VGA |
| Management | Lenovo XClarity Controller (XCC) Platinum |
| Operating System Support | Windows Server 2019/2022, Red Hat Enterprise Linux 8.6–9.4, SUSE Linux Enterprise Server 15 SP4–SP6, Ubuntu 20.04/22.04/24.04 LTS, Windows 10/11 |
| Power Supplies | 2 x 1100 W (Redundant, Hot-swappable) |
| Voltage | 120 V AC / 230 V AC |
| Security Features | TPM 2.0, Platform Firmware Resiliency (PFR), Power-on & Admin Passwords, Chassis Intrusion Switch |
| Environmental Compliance | RoHS, EPEAT Bronze, CECP, CELP, GREENGUARD |
| Dimensions (H x W x D) | 1.7" x 17.3" x 30.4" |
| Weight | 45.86 lbs |
| Package Contents | ThinkSystem SR630 V3 Server, Toolless Slide Rail Kit |
| Warranty | 3-Year CRU & Onsite Limited Warranty with 9x5 Next Business Day (NBD) |
