Description

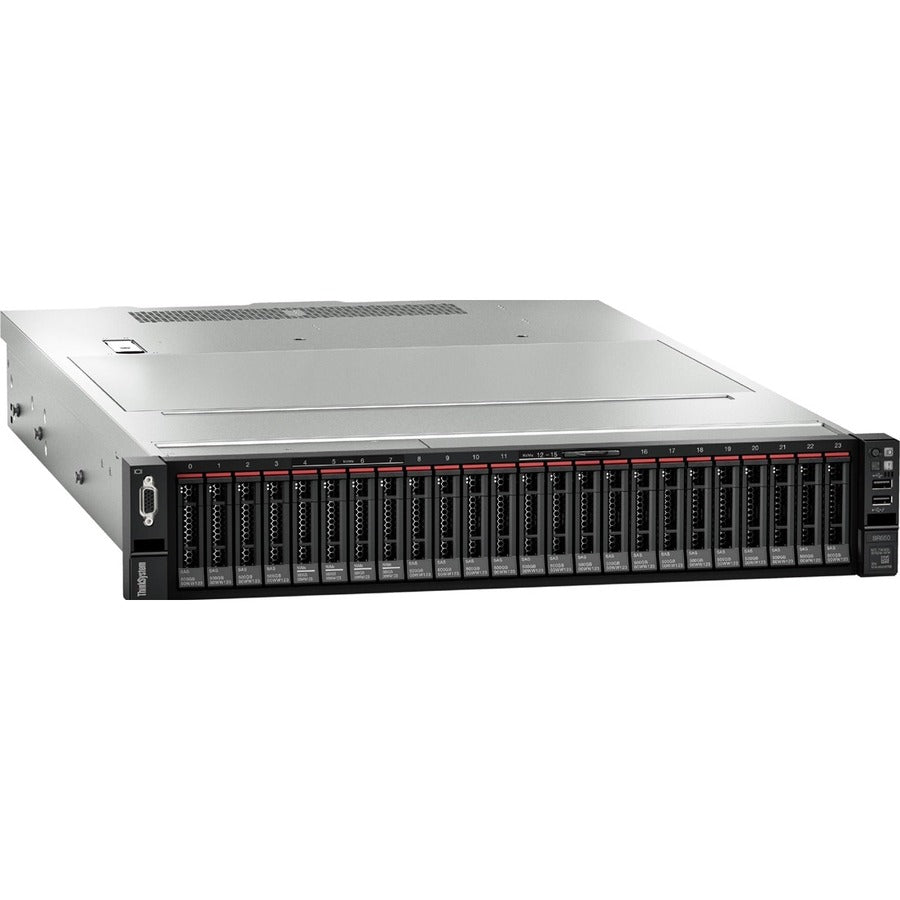

The Lenovo ThinkSystem SR650 7X06A0NANA is a high-performance, enterprise-grade 2U rack server engineered to deliver exceptional reliability, scalability, and versatility for modern data centers. Powered by a 2nd Gen Intel® Xeon® Gold 5218 processor with 16 cores running at 2.30 GHz, the SR650 provides the computing power required for demanding workloads such as virtualization, cloud computing, VDI, big data analytics, databases, and enterprise applications.
Supporting up to two processors and 3 TB of TruDDR4 ECC memory, this server offers outstanding memory capacity and speed, while Intel Optane™ Memory Ready technology further enhances performance for data-intensive tasks. Integrated with a Matrox G200e GPU, Gigabit Ethernet, and XClarity Controller (XCC) for intelligent remote management, the SR650 is designed for seamless deployment and simplified administration.
With robust security features including TPM, secure firmware updates, and SED support, plus a 3-year limited warranty, the ThinkSystem SR650 is a future-ready platform ideal for enterprises seeking a powerful, secure, and scalable server solution.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Part Number | 7X06A0NANA |
| Product Line / Series | ThinkSystem SR650 |
| Form Factor | 2U Rack Server |
| Processor | 1 x Intel® Xeon® Gold 5218 (16 Cores, 2.30 GHz, 22 MB Cache) |
| Processor Support | Up to 2 processors |
| Chipset | Intel® C624 |
| Memory | 32 GB TruDDR4 ECC RAM |
| Maximum Memory Supported | Up to 3 TB |
| Memory Technology | TruDDR4 ECC, Intel Optane Memory Ready |
| Memory Speed | 2933 MHz |
| Total Memory Slots / Used | 24 / 1 |
| Storage Options | Supports 12Gb/s SAS, Serial ATA/600 (No HDD included) |
| RAID Support | No |
| Graphics | Matrox G200e (16 MB) |
| Network Interface | Gigabit Ethernet (4 x RJ-45) |
| I/O Ports | 4 x USB (1 x USB 2.0, 3 x USB 3.0), 2 x VGA, 4 x RJ-45 |
| Expansion Slots | 2 x PCIe 3.0 x8 |
| Remote Management | Lenovo XClarity Controller (XCC) |
| Operating Systems Supported | Windows Server 2016/2019/2022, Red Hat Enterprise Linux 7.6–8.5, SUSE Linux Enterprise Server 12 SP4/SP5, 15 SP1–SP3 |
| Power Supply | 1 x 750 W Hot-Swappable PSU (supports up to 2) |
| Input Voltage | 120 V AC / 230 V AC |
| Connector Type | C13/C14 |
| Security Features | TPM, Power-on/Admin Password, Secure Firmware, SED Support |
| Energy Efficiency | ENERGY STAR Certified |
| Dimensions (H x W x D) | 3.4" x 17.5" x 30.1" |
| Weight | 70.55 lbs |
| Warranty | 3-Year Limited Warranty |
| Included Accessories | Slide Rail Kit |
| Condition | New and Factory Fresh |
