Description

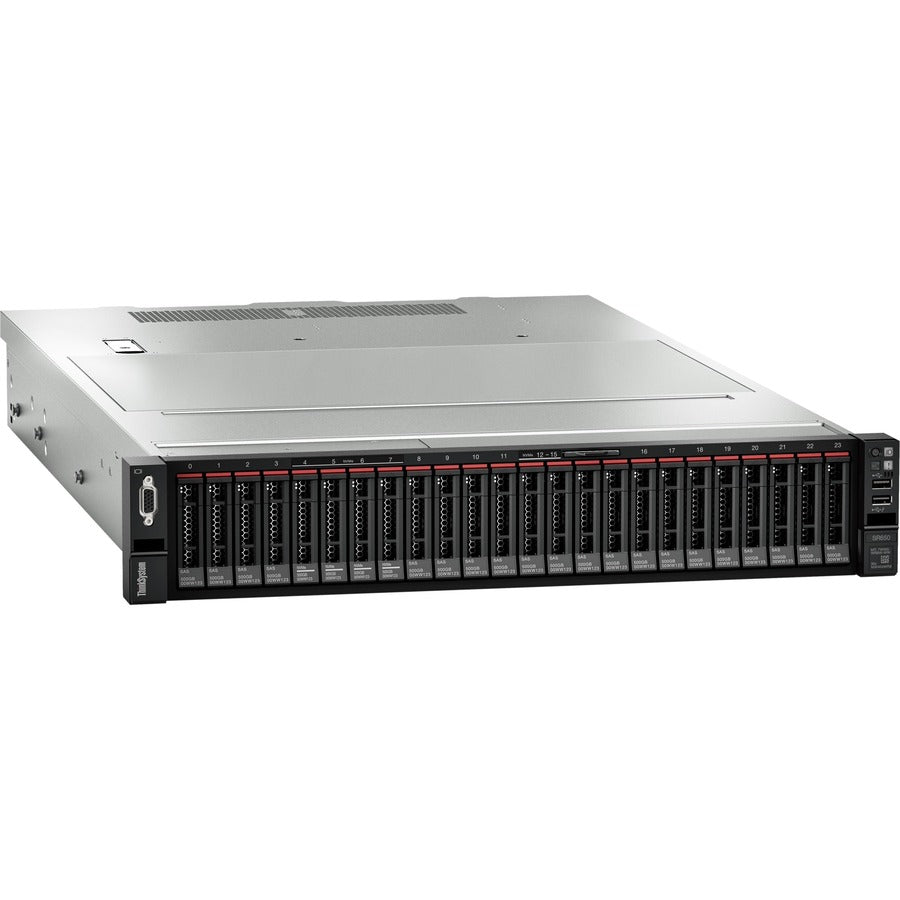

The Lenovo ThinkSystem SR650 7X06A0NHNA is a high-performance 2U rack server engineered for demanding enterprise workloads, from virtualization and cloud computing to big data analytics and business-critical applications. Powered by dual Intel® Xeon® Silver 4214 12-core processors and equipped with 192 GB of TruDDR4 ECC memory, this server delivers the compute power, memory capacity, and scalability modern data centers require.
Its storage configuration includes 6.50 TB of ultra-fast SSD storage (2 × 3.2 TB + 2 × 128 GB), connected via a 12 Gb/s SAS controller for maximum throughput and flexibility. The SR650 supports RAID levels 0, 1, 5, 6, 10, 50, and 60, ensuring robust data protection and performance.
With support for up to 3 TB memory, 12 LFF bays, redundant 750 W power supplies, and Intel Optane™ memory readiness, the SR650 is designed for long-term scalability and reliability. Integrated XClarity Controller provides advanced remote management, while support for multiple operating systems ensures deployment flexibility across IT environments.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Product Line | ThinkSystem |
| Series / Model | SR650 / 7X06A0NHNA |
| Form Factor | 2U Rackmount Server |
| Processor | 2 × Intel® Xeon® Silver 4214 (12 cores each) |
| Processor Speed | 2.20 GHz |
| Cache | 16.5 MB |
| Chipset | Intel® C624 |
| Memory Installed | 192 GB TruDDR4 ECC |
| Max Memory Supported | 3 TB |
| Memory Slots (Total / Used) | 24 / 6 |
| Intel Optane Memory Ready | Yes |
| Storage Type | SSD |
| Total SSD Capacity | 6.50 TB (2 × 3.2 TB + 2 × 128 GB) |
| Storage Interface | 12 Gb/s SAS |
| Controller Model | 930-16i 8GB |
| RAID Support | 0, 1, 5, 6, 10, 50, 60 |
| Expansion Bays | 12 × LFF Bays |
| Expansion Slots | 3 × PCIe x8, 2 × PCIe x16 |
| Graphics | Matrox G200e (16 MB) |
| Networking | 4 × Gigabit Ethernet (RJ-45) |
| USB Ports | 4 (1 × USB 2.0, 3 × USB 3.0) |
| Remote Management | Lenovo XClarity Controller (XCC) |
| Supported OS | Windows Server 2016/2022, Red Hat Enterprise Linux, SUSE Linux Enterprise Server |
| Power Supplies | 2 × 750 W (Redundant, Hot-Swappable) |
| Input Voltage | 120 V / 230 V AC |
| Dimensions (H × W × D) | 3.4" × 17.5" × 30.1" |
| Weight | 70.55 lb |
| Security | TPM, Secure Firmware, Self-Encrypting Drives (SED), Power-on/Admin Passwords |
| Energy Efficiency | ENERGY STAR® Certified |
| Warranty | 3-Year Limited Warranty |
