Description

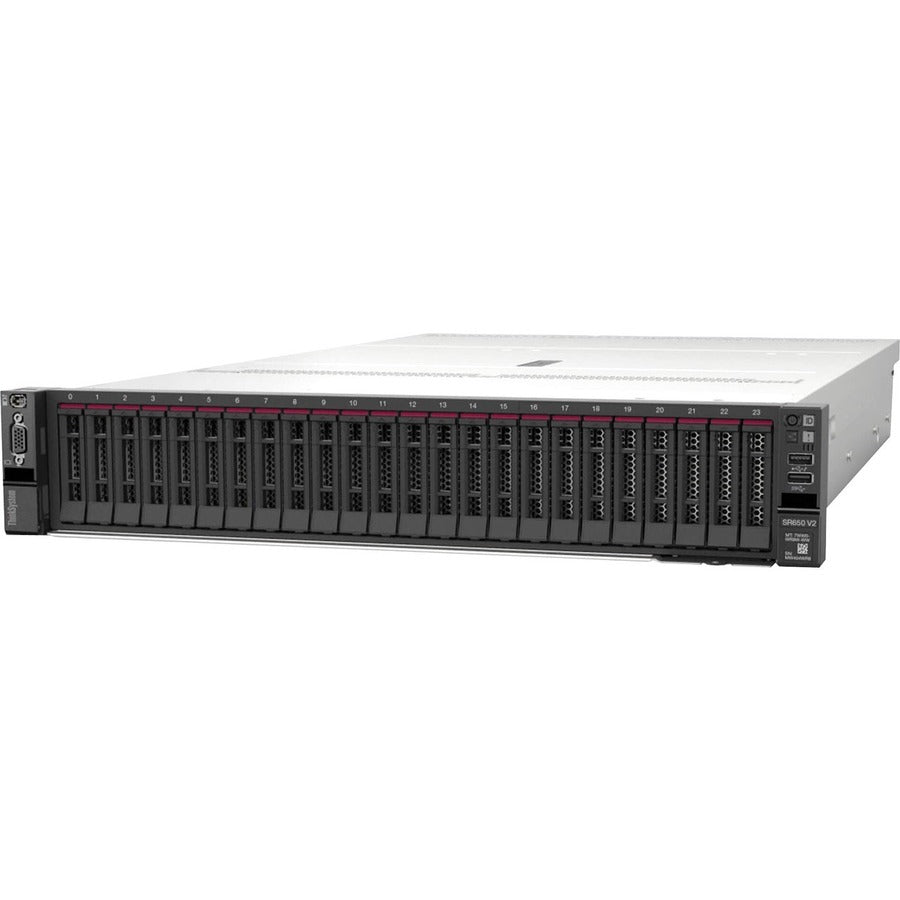

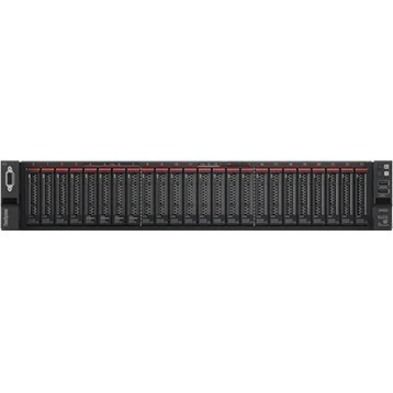

The Lenovo ThinkSystem SR650 V2 7Z73A03NNA is a powerful 2U rack server designed to deliver enterprise-grade performance, scalability, and reliability for a wide range of business-critical applications. Powered by a 3rd Gen Intel Xeon Silver 4310 processor with 12 cores and 24 threads, this server provides exceptional computing power for demanding workloads such as virtualization, cloud computing, database management, VDI, and enterprise applications.
Equipped with 16 GB TruDDR4 memory and support for up to 8 TB of system memory, the SR650 V2 ensures rapid data processing and seamless multitasking. It supports up to 40x 2.5-inch or 20x 3.5-inch hot-swap drives, as well as NVMe storage options for high-performance data throughput. PCIe Gen 4.0 expansion slots, support for GPUs, and Intel Optane Persistent Memory further enhance system capabilities, making it future-ready for evolving infrastructure needs.
With advanced reliability and security features including hot-swap redundant power supplies, memory mirroring, RAID support, TPM 2.0, and Lenovo XClarity Controller for centralized management, the SR650 V2 is engineered to maximize uptime, minimize maintenance complexity, and deliver secure, efficient operations in data center environments.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo |
| Product Line | ThinkSystem |
| Series | SR650 V2 |
| Model | 7Z73A03NNA |
| Form Factor | 2U Rack Server |
| Processor | 1 x Intel Xeon Silver 4310, 12 cores, 2.10 GHz |
| Processor Socket | Up to 2 x LGA 4189 sockets |
| Memory Installed | 16 GB TruDDR4 |
| Maximum Memory | Up to 8 TB (32 DIMM slots, 3200 MHz) |
| Memory Type | TruDDR4 RDIMM / 3DS RDIMM |
| Persistent Memory | Up to 16 x Intel Optane Persistent Memory 200 Series |
| Storage Bays | Up to 40 x 2.5" or 20 x 3.5" hot-swap drive bays |
| Maximum Internal Storage | Up to 1966.08 TB (with NVMe SSDs) |
| Storage Interface | SAS, SATA, NVMe |
| Storage Controller | 12 Gb/s SAS RAID, Intel VROC SATA/NVMe RAID |
| RAID Support | RAID 0, 1, 5, 6, 10, 50, 60 |
| GPU Support | Up to 8 x single-width GPUs or 3 x double-width GPUs |
| Expansion Slots | Up to 8 x PCIe 4.0 slots |
| Network Interfaces | OCP 3.0 slot (1GbE, 10GbE, 25GbE options), 1 x RJ-45 for management |

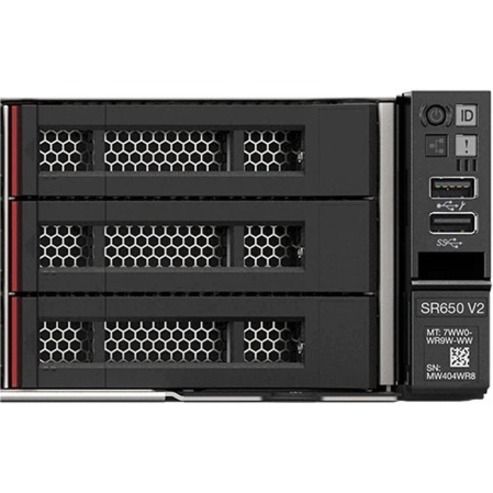

| Ports (Front) | 1 x USB 3.2 Gen 1, 1 x USB 2.0, diagnostics port, optional VGA |
| Ports (Rear) | 3 x USB 3.2 Gen 1, 1 x VGA, 1 x RJ-45 management |
| Cooling | Up to 6 x hot-swap fans (N+1 redundancy) |
| Power Supply | Up to 2 x hot-swap redundant PSU (500W – 1800W, Platinum/Titanium) |
| Management | Lenovo XClarity Controller (XCC), XClarity Administrator, Redfish, IPMI 2.0 |
| Security | TPM 2.0, chassis intrusion detection, secure boot, admin and power-on password |
| Supported OS | Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
| Dimensions (W x H x D) | 445 mm x 87 mm x 764 mm (17.5 x 3.4 x 30.1 in) |
| Weight | Up to 38.8 kg (85.5 lb) |
| Warranty | 3-Year Limited Warranty (NBD Onsite) |
