Description

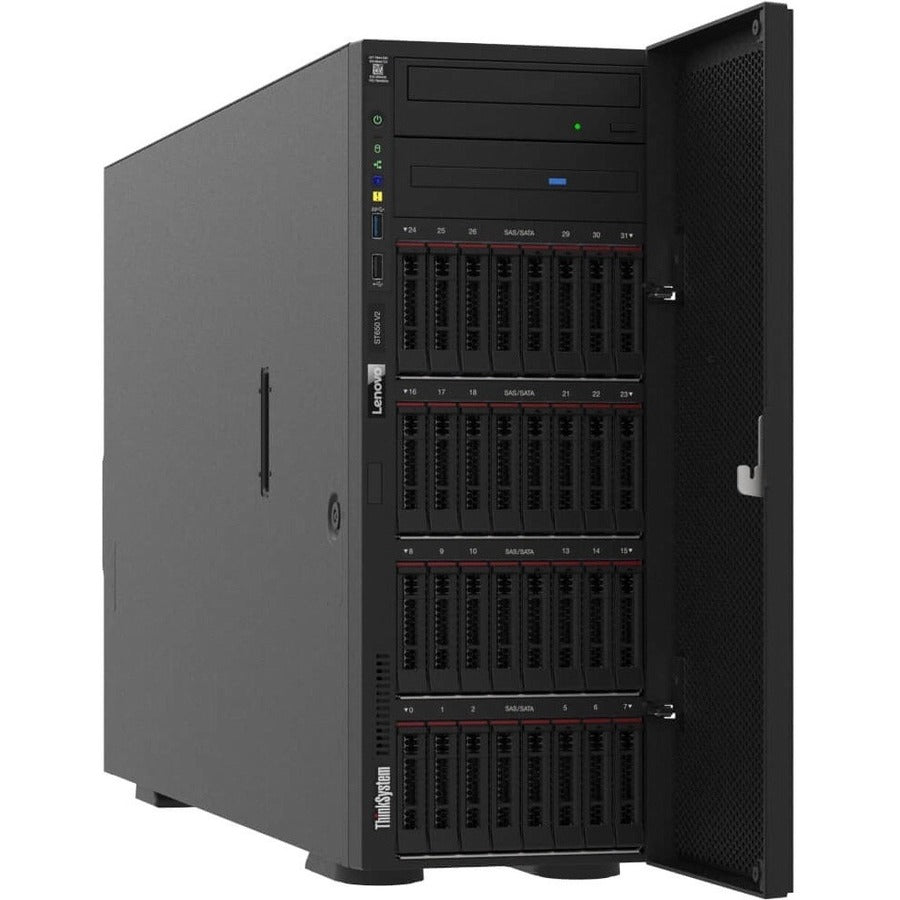

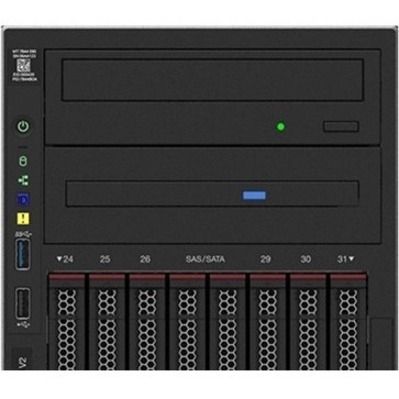

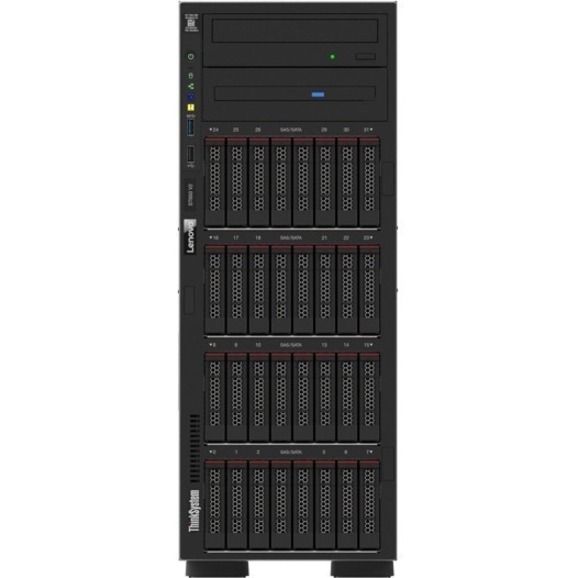

The Lenovo ThinkSystem ST650 V2 7Z74A02HNA is a powerful 2-socket 4U tower server built to deliver enterprise-grade performance, reliability, and scalability for growing businesses. Designed for versatility, it excels in a wide range of demanding workloads such as databases, virtualization, cloud computing, VDI, infrastructure security, enterprise applications, collaboration, and media streaming.
Powered by a 3rd Gen Intel® Xeon® Silver 4309Y processor and TruDDR4 ECC memory, the ST650 V2 ensures high-speed data processing, enhanced stability, and optimal energy efficiency. With support for up to two processors, 32 DIMM slots, and Intel Optane™ memory, it provides scalable performance to meet future growth. Its flexible expansion options include nine PCIe slots (eight PCIe 4.0), hot-swappable drive bays, and 10 Gigabit Ethernet connectivity.
The server also integrates Matrox G200 graphics, robust security features like TPM and self-encrypting drives, and comprehensive remote management through Lenovo XClarity Controller (XCC) Enterprise. Engineered for reliability and ease of maintenance, the ThinkSystem ST650 V2 is backed by a 3-year onsite limited warranty and optional service upgrades.
| Specification | Details |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Part Number | 7Z74A02HNA |
| Product Line | ThinkSystem |
| Series | ST650 V2 |
| Form Factor | 4U Tower |
| Processor | 1 x Intel Xeon Silver 4309Y (8 Cores, 2.80 GHz, 12 MB Cache) |
| Processor Support | Up to 2 processors |
| Chipset | Intel C621A |
| Memory | 32 GB TruDDR4 ECC (3.2 GHz) |
| Memory Slots | 32 (1 occupied) |
| Intel Optane Memory Ready | Yes |
| Storage Controller | Serial ATA/600 with RAID support |
| Drive Bays | 8 x LFF bays (hot swappable), 2 x external 5.25" bays |
| Expansion Slots | 9 total (5 x PCIe Gen3 x8, 4 x PCIe Gen3 x16) |
| Graphics | Matrox G200 with 16 MB memory |
| Network | 10 Gigabit Ethernet (3 x RJ-45 ports) |
| I/O Ports | 7 x USB (1 x USB 2.0), 1 x VGA |
| Remote Management | XClarity Controller (XCC) Enterprise |
| Supported OS | Windows Server 2016/2019/2022, RHEL 7.9/8.2/8.3, SUSE Linux Enterprise 12 SP5/15 SP2 |
| Power Supply | 1 x 750 W (supports 2, hot-swappable) |
| Input Voltage | 120 V AC / 230 V AC |
| Dimensions (H x W x D) | 18.2" x 6.9" x 28.9" |
| Weight | Approx. 101.92 lbs |
| Security | TPM, Administrator/Power-on password, Self-encrypting drives, Lockable side cover |
| Certifications | ENERGY STAR 3.0, EPEAT Bronze, CELP, GREENGUARD, CECP |
| Warranty | 3-Year CRU and onsite limited warranty (9x5 next business day); service upgrades available |
