Description

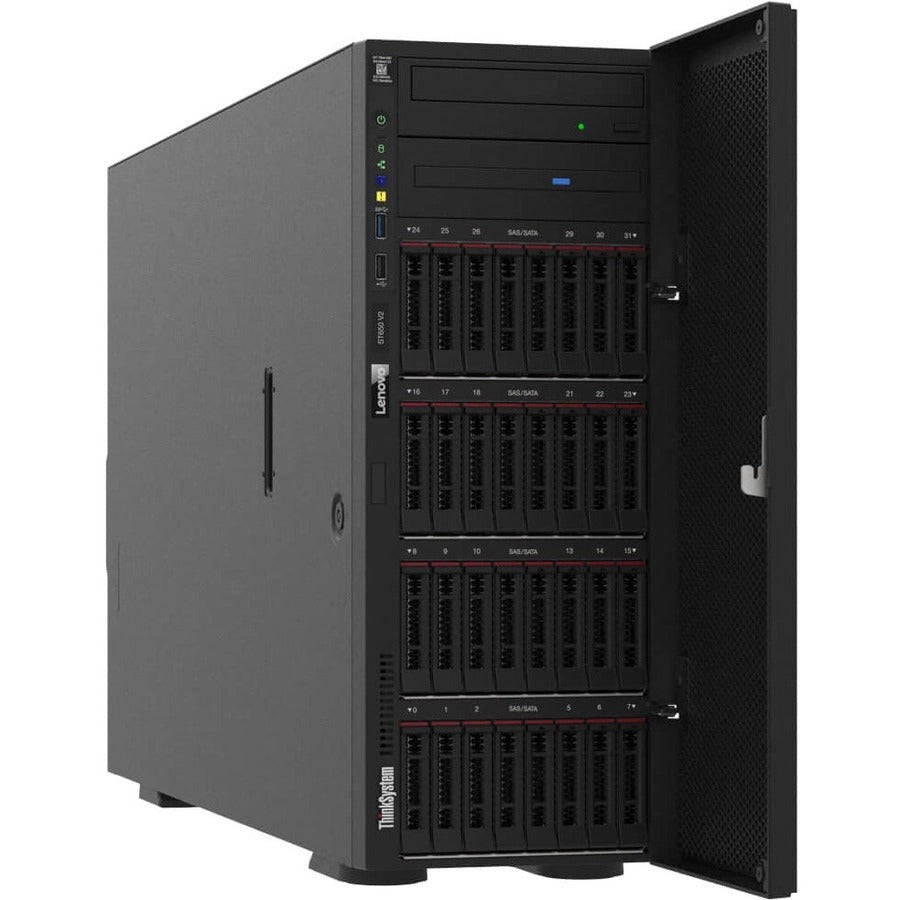

The Lenovo ThinkSystem ST650 V2 7Z74A02LNA is a high-performance 2-socket 4U tower server designed to meet the demands of small businesses, large enterprises, and evolving data center environments. Built with the 3rd Gen Intel® Xeon® Scalable processor, advanced TruDDR4 memory, and Intel C621A chipset, this server delivers robust performance, scalability, and reliability for mission-critical workloads.
Ideal for applications such as virtualization, cloud computing, databases, enterprise software, VDI, and high-performance computing (HPC), the ST650 V2 ensures long-term flexibility with its extensive I/O expandability, high-capacity memory support, and multiple storage configurations. Featuring 10GbE connectivity, hot-swappable bays, and redundant power options, it provides the resilience and uptime essential for enterprise operations. With enhanced security features, energy-efficient design, and compatibility with leading operating systems, the ST650 V2 is a future-ready solution for growing IT infrastructures.
| Category | Specification |
|---|---|
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Part Number | 7Z74A02LNA |
| Product Line | ThinkSystem |
| Product Series | ST650 V2 |
| Product Type | Tower Server |
| Form Factor | 4U |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Xeon Silver |
| Processor Generation | 3rd Gen |
| Processor Model | 4314 |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Core Count | 16 Cores (Hexadeca-core) |
| Processor Speed | 2.40 GHz |
| Cache | 24 MB |
| Chipset | Intel C621A |
| Memory | |
| Installed Memory | 32 GB TruDDR4 ECC |
| Memory Clock Speed | 3200 MHz |
| Total Memory Slots | 32 |
| Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Storage & RAID | |
| Total Storage Capacity | None (HDD/SSD not included) |
| Optical Drive | No |
| Controller Type | Serial ATA/600 |
| RAID Support | Yes |
| RAID Levels | 0, 1, 5, 10, JBOD |
| Expansion & Bays | |
| Total Expansion Bays | 10 |
| External 5.25" Bays | 2 |
| Internal 2.5" Bays | 8 |
| Media Drive Bays | 2 |
| SFF Bays | 8 |
| Hot-Swappable Bays | Yes |
| Total PCIe Slots | 9 |
| PCIe 3.0 x16 Slots | 3 |
| PCIe 3.0 x8 Slots | 2 |
| PCIe 3.0 x4 Slots | 1 |
| Graphics | |
| Graphics Controller | Matrox G200 |
| Graphics Memory | 16 MB |
| Networking | |
| Ethernet Technology | 10 Gigabit Ethernet |
| RJ-45 Ports | 3 |
| VGA Ports | 1 |
| Remote Management | XCC local management |
| Interfaces & Ports | |
| Total USB Ports | 7 |
| USB 2.0 Ports | 1 |
| VGA Support | Yes |
| Network Ports | Yes (3x RJ-45) |
| Operating System Compatibility | |
| Supported OS | Windows Server 2016/2019/2022, Red Hat Enterprise Linux 7.9/8.2/8.3/8.5, SUSE Linux Enterprise Server 12 SP5/15 SP2 |
| Power & Cooling | |
| Power Supply | 1 x 750 W |
| Supported Power Supplies | 2 |
| Redundant Power | Yes |
| Hot Swappable PSU | Yes |
| Input Voltage | 120 V AC / 230 V AC |
| Connector Type | C13/C14 |
| Physical Characteristics | |
| Form Factor | Tower |
| Rack Height | 4U |
| Dimensions (H x W x D) | 18.2" x 6.9" x 28.9" |
| Weight | 86.60 lbs |
| Security & Compliance | |
| Security Features | TPM, Self-Encrypting Drives, Lockable Side Cover |
| Certifications | ENERGY STAR 3.0, CECP |
| Warranty & Packaging | |
| Warranty | 3-Year Limited Warranty |
| Package Contents | ThinkSystem ST650 V2 7Z74A02LNA Server, Power Cord |
