Description

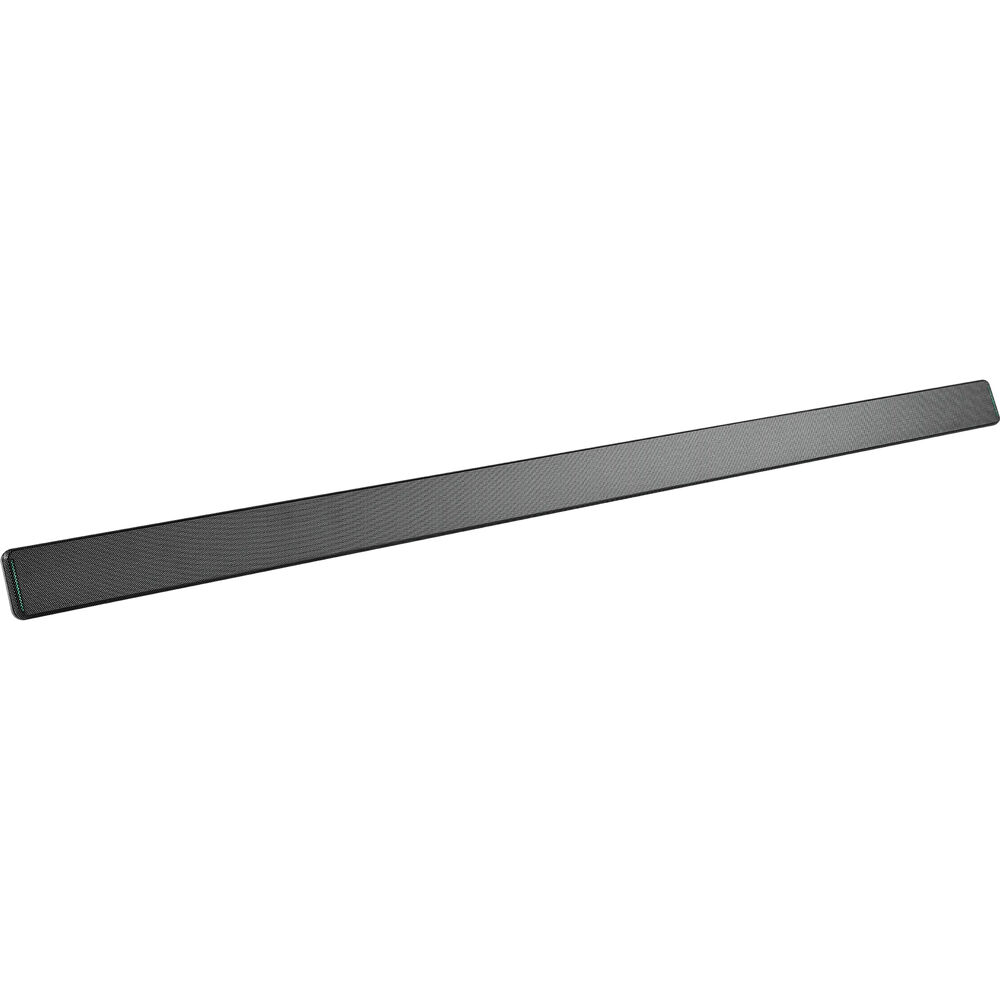

The Shure MXA710 Microflex Advance Linear Array Microphone delivers premium audio capture in a sleek 4-foot form factor designed for modern AV conferencing environments. Engineered for flexibility and performance, this black-finish array microphone can be installed on walls, ceilings, or tables, adapting seamlessly to a wide range of room layouts.
Equipped with 100 built-in MEMS microphones and advanced Steerable Coverage technology, the MXA710 provides precise audio pickup across 8 configurable lobes. Combined with onboard IntelliMix DSP, it ensures crystal-clear speech through automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control. Autofocus technology dynamically adjusts in real time, keeping voices clear even as participants move.
A single Ethernet cable supports both Power over Ethernet (PoE) and Dante or AES67 audio networking, simplifying installation and reducing clutter. Designed for scalability, the MXA710 integrates easily with Shure IntelliMix P300 or IntelliMix Room for larger deployments, while Shure Designer software enables intuitive configuration and system optimization.
With enterprise-grade AES-256 audio encryption, remote management via SystemOn software, and compatibility with leading conferencing platforms, the MXA710 is a powerful and flexible solution for delivering consistent, high-quality audio in any collaboration space.
| Specification | Details |
|---|---|
| Product Type | Linear Array Microphone |
| Form Factor | 4 ft Linear Array |
| Microphone Type | 100 MEMS microphones |
| Coverage Technology | Steerable Coverage with 8 lobes |
| Frequency Response | 100 Hz to 20 kHz |
| Dynamic Range | 79.1 dB |
| Sensitivity | -7.9 dBFS/Pa |
| Maximum SPL | 101.9 dB |
| Signal-to-Noise Ratio | 71.2 dB (A-weighted) |
| Self Noise | 22.8 dB SPL-A |
| DSP Features | Automatic Mixing, AEC, Noise Reduction, AGC, Compressor, Delay, 4-Band EQ, Mute, Gain |
| Acoustic Echo Cancellation | Up to 250 ms tail length |
| Audio Output | Dante and AES67 digital audio |
| Channels | 10 total (8 transmit, 1 automix, 1 AEC reference) |
| Latency | 8.7 ms (direct), 19.3 ms (automix) |
| Sampling Rate | 48 kHz |
| Bit Depth | 24-bit |
| Network Interface | 1 x RJ45 (PoE, audio, control) |
| Cable Requirement | Cat5e or higher (shielded recommended) |
| Power Source | Power over Ethernet (PoE) |
| Power Consumption | 10 W (maximum) |
| Mounting Options | Wall (vertical/horizontal), ceiling (suspended/flush), table (flush) |
| Environmental Rating | IP5X dust-resistant, UL 2043 plenum rated |
| Operating Temperature | -6°C to 40°C |
| Storage Temperature | -28°C to 73°C |
| Dimensions | 49.1 x 2.4 x 0.9 inches |
| Weight | 3.7 lb |
| Color | Black |
| Certifications | CE, IEC60529, UL2043 |
| Software Support | Shure Designer, SystemOn |
| Security | AES-256 audio encryption (with compatible devices) |
