Description

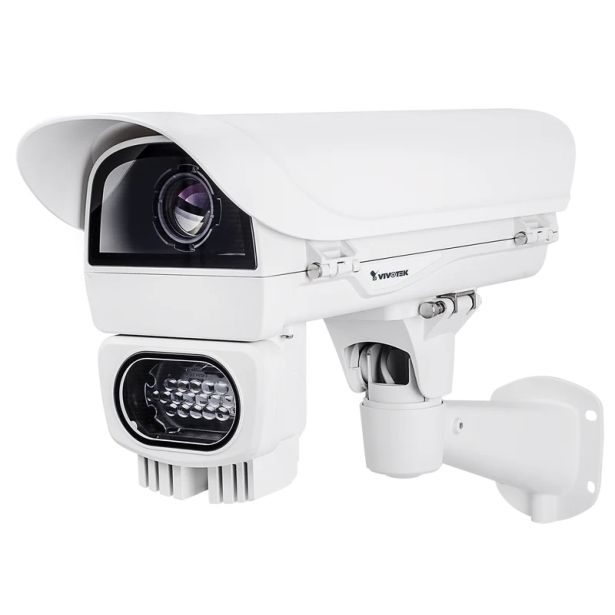

The Vivotek IP9165-LPRKIT-S 50mm License Plate Recognition (LPR) Network Camera is a powerful surveillance solution engineered for precise vehicle identification and advanced security integration. Designed for high-performance license plate capture, this camera excels in challenging environments, accurately recognizing plates at speeds up to 90 km/h and under variable lighting conditions. Its high-resolution 2MP PS CMOS sensor, combined with a 50mm vari-focal lens and built-in IR illuminators, ensures crystal-clear imaging up to 115 ft — day or night.
Engineered for seamless integration, the IP9165-LPRKIT-S supports a wide range of network protocols and is fully compatible with modern security platforms. Its advanced feature set includes Automatic Number Plate Recognition (ANPR), Wide Dynamic Range (WDR) Pro II, Digital Image Stabilization (DIS), and comprehensive video analytics for enhanced situational awareness. Robust construction with IP68 and IK10 ratings ensures reliable operation in extreme weather and demanding environments. Whether for traffic monitoring, parking access, or perimeter security, the Vivotek IP9165-LPRKIT-S delivers unmatched accuracy, performance, and reliability for mission-critical surveillance.
| Category | Specification |
|---|---|
| Model | Vivotek IP9165-LPRKIT-S (50mm) |
| Device Type | Outdoor Network License Plate Recognition Camera |
| Form Factor | Bullet |
| Imaging Sensor | 2 MP PS CMOS 1/2" |
| Lens Type | Vari-focal, 9–50 mm, F/1.5 |
| Optical Zoom | 5.6x |
| Field of View | Horizontal: 8.3°–42.8° / Vertical: 4.7°–24.3° / Diagonal: 9.46°–48.9° |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Video Resolution | 1920 × 1080 (1080p) |
| Frame Rate | Up to 60 fps |
| Digital Zoom | 48x |
| Infrared LEDs / Distance | Yes / Up to 115 ft (35 m) |
| Exposure Range | 1/5 sec – 1/32000 sec |
| Audio Support | Two-way audio (G.726, G.711) |
| Storage Options | microSD/microSDHC/microSDXC |
| Video Analytics | ANPR, Motion Detection, Tampering Detection, License Plate Capture (LPC) |
| Advanced Features | WDR Pro II, DIS, 3D DNR, Defog, Lens Distortion Correction, Backlight & Highlight Compensation, Privacy Mask, Remote Back Focus |
| Network Interface | 10/100/1000 Mbps Ethernet (RJ-45) |
| Network Protocols | ARP, HTTPS, DHCP, DNS, FTP, ICMP, IPv4/IPv6, NTP, QoS, RTSP, RTP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP/IP, UPnP |
| Alarm I/O | 2 inputs / 2 outputs |
| Ports | LAN/Power (RJ-45), Audio In/Out, RS-485, BNC Video Out |
| Security | TLS/SSL Encryption |
| Compliance | FCC Class B, VCCI, UL, IP68, IK10, EN 62471:2008 |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Humidity (Operating) | 0–90% RH |
| Power Requirements | DC 24 V / AC 24 V |
| Included Software | Trend Micro IoT Security |
| Supported OS | Windows 7/8, macOS 10.12+ |
| Dimensions (W × D × H) | 6.7 × 23.2 × 14.1 in |
| Weight | 13.67 lbs |
| Color | White |
