Description

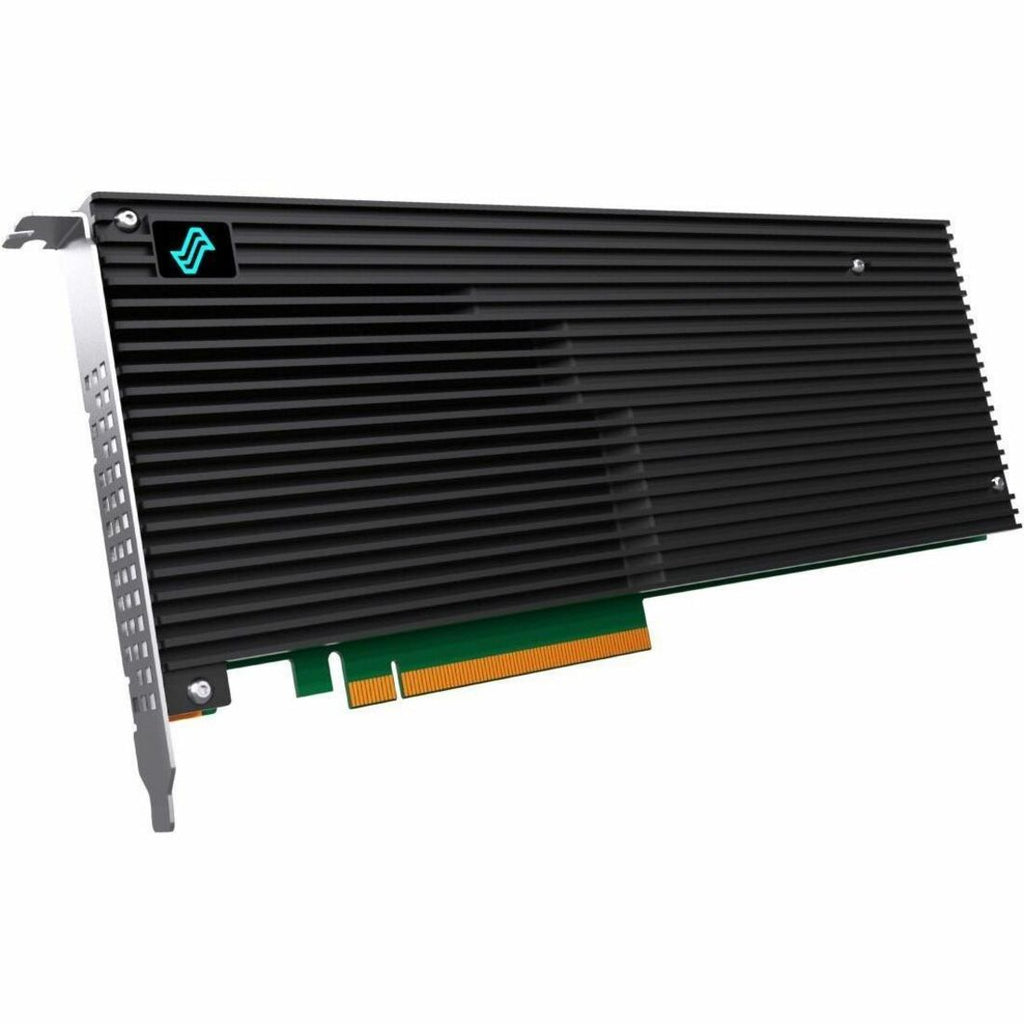

The Liqid LQD4500 IO Accelerator (7.68TB) is an ultra-high-performance NVMe solution engineered for modern data-intensive environments. Built on a PCIe Gen 4.0 x16 interface and powered by TLC 3D NAND, it delivers exceptional throughput, extremely low latency, and enterprise-grade reliability.
Designed to accelerate demanding workloads such as AI/ML pipelines, high-speed analytics, large-scale simulations, and high-resolution content processing, the LQD4500 provides up to 26 GB/s read bandwidth, 4 million random read IOPS, and write performance up to 13 GB/s. Its minimal write latency of just 10 microseconds ensures responsiveness at scale.
This FHFL single-width accelerator also supports advanced power-loss protection, thermal management, UEFI boot, and 256-bit AES data encryption—making it an ideal choice for mission-critical data centers requiring consistent, predictable performance and exceptional endurance.
| Category | Specification |
|---|---|
| Model | Liqid LQD4500 IO Accelerator |
| Capacity (SKU) | 7.68TB |
| Raw Capacity | Up to 32TB |
| NAND Type | TLC 3D NAND |
| Read Bandwidth | Up to 26 GB/s |
| Write Bandwidth | Up to 13 GB/s |
| Random 4K Read IOPS | Up to 4M IOPS |
| Random 4K Write IOPS | Up to 900K IOPS |
| Min Read Latency | 70 µs |
| Min Write Latency | 10 µs |
| Protocol | NVMe 1.3 |
| Bus Interface | PCI Express 4.0 x16 |
| Endurance | Up to 61.53 PBW / 2 DWPD (per configuration) |
| Security | 256-bit AES Data Encryption |
| Form Factor | FHFL Single Width |
| Weight | 20 oz |
| Operating Temperature | 0–55°C (operating); –40–75°C (non-operating) |
| Power Consumption | ~75W active @ 12VDC |
| Airflow Requirement | Minimum 400 LFM |
| Humidity | 5%–95% non-condensing |
| Altitude | 0–10,000 ft |
| Operating Systems Supported | Windows, RHEL, SLES, CentOS, Solaris, SUSE, VMware |
| Certifications | UL, CB, CE, CCS, KCC, HF, BSMI, VCCI, FCC Class B, CISPR Class B, JEDEC |
| Warranty | 3 years or max endurance used |
