Description

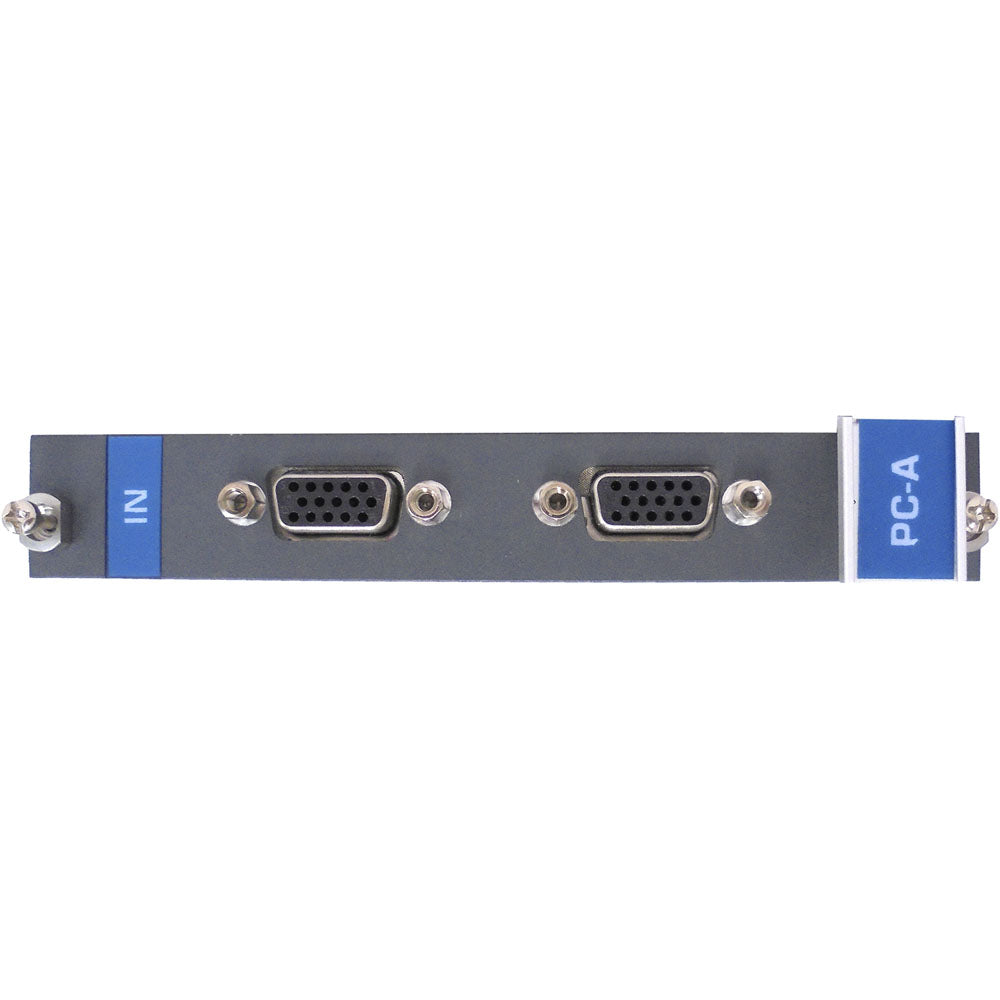

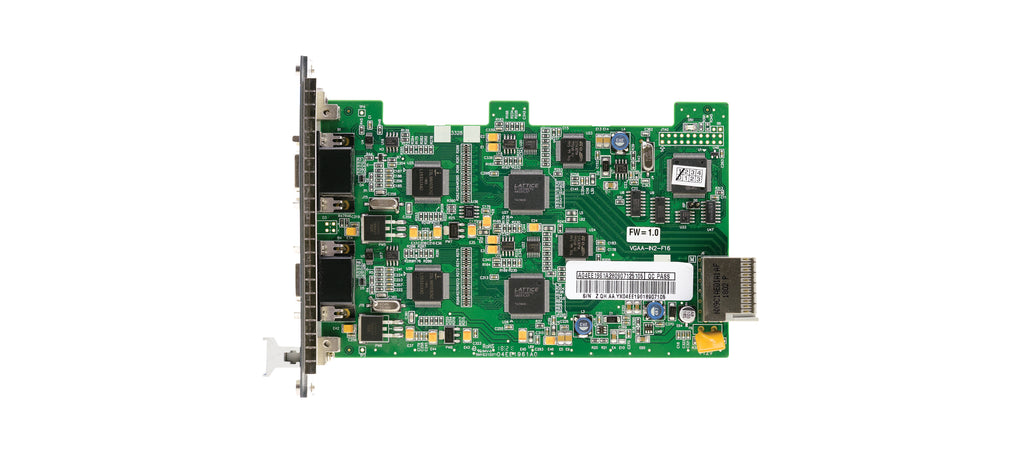

The Kramer VGAA-IN2-F16 Standalone is a high-performance 2-channel VGA with analog audio input card designed for VS-1616D and VS-1616DN-EM modular matrix switchers. Engineered for dependable signal integrity, this module delivers up to 450 MHz bandwidth, ensuring crisp, distortion-free VGA video alongside clean analog audio.
Each channel supports VGA input via 15-pin HD connectors, with audio accessed through 3.5 mm mini-jacks using the included Kramer C-GF/GMAF-30 breakout cables. Built for professional AV environments, the card supports HDTV compatibility, long-distance runs up to 10 m, and stable performance in demanding operating conditions.
With CE, RoHS, and WEEE compliance, the VGAA-IN2-F16 provides reliable, environmentally responsible connectivity for modular AV switching systems.
| Category | Details |
|---|---|
| SKU | VGAA-IN2-F16/STANDALONE |
| Channels | 2 VGA with analog audio inputs |
| Video Ports | 2 × VGA (15-pin HD) |
| Audio Ports | 2 × unbalanced analog audio (3.5 mm mini-jack via C-GF/GMAF-30 cables) |
| Max Bandwidth | 450 MHz |
| Maximum Range | 10 m (32 ft) |
| Power Consumption | 9.5 W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10% to 90% (non-condensing) |
| Safety Compliance | CE certified |
| Environmental Compliance | RoHS & WEEE |
| Included Accessories | 2 × C-GF/GMAF-30 audio breakout cables |
| Product Dimensions (W×D×H) | 25.20 cm × 13.00 cm × 2.00 cm (9.92" × 5.12" × 0.79") |
| Product Weight | 0.3 kg (0.7 lb) |
| Shipping Dimensions (W×D×H) | 16.50 cm × 30.00 cm × 6.00 cm (6.50" × 11.81" × 2.36") |
| Shipping Weight | 0.7 kg (1.4 lb) |
