Description

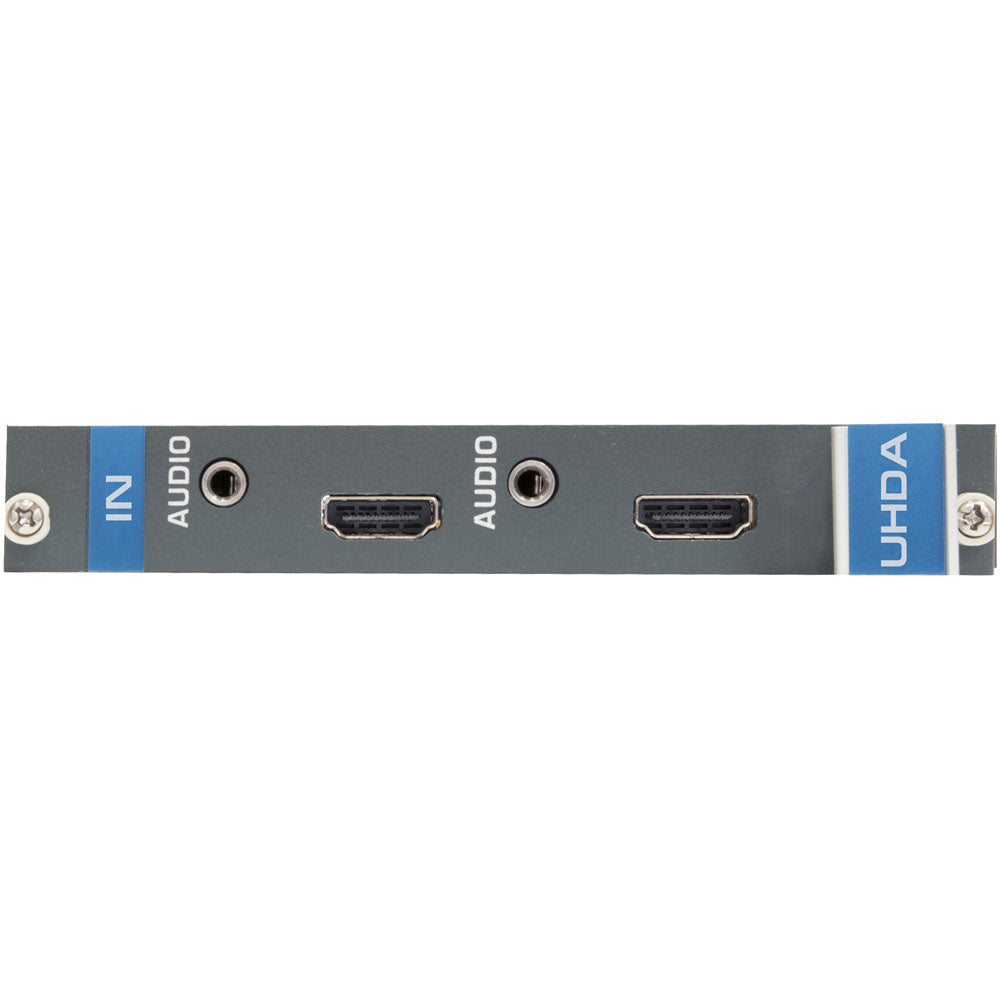

The Kramer UHDA-IN2-F16 is a high-performance 2-channel HDMI input card designed for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. Built for professional AV environments, it delivers crisp 4K@60Hz (4:2:0) video support along with flexible audio configuration options, including embedded, de-embedded, and ARC (upper port) analog audio.
Engineered with Kramer’s advanced equalization and re-Klelocking technology, the UHDA-IN2-F16 ensures stable signal integrity, accurate EDID handling, and seamless integration into large-scale routing systems. With HDMI support for 3D, Deep Color, x.v.Color™, Dolby® TrueHD, DTS-HD®, and 7.1 multi-channel audio, this module provides the reliability and versatility needed for mission-critical installations.
Ideal for corporate AV, command centers, broadcasting, and large presentation environments, this card offers maximum compatibility and professional-grade performance.
| Category | Details |
|---|---|
| Video Inputs | 2 HDMI ports |
| Audio I/O | 2 analog audio ports (3.5mm mini jacks) – selectable embedded, de-embedded, or ARC (upper port) |
| Max Resolution | 4K@60Hz (4:2:0) |
| Max Data Rate | 8.91Gbps total (2.97Gbps per channel) |
| Maximum Range | 10m @ 4K60 (4:2:0) / 4K30 (4:4:4); 15m @ 1080p 12-bit |
| HDMI Support | 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, 7.1 audio |
| 3D Pass-Through | Supported |
| EDID Handling | EDID capture and storage |
| Compliance | HDCP 1.4, HDMI 1.4, HDTV compatible |
| Power Consumption | 5.2W |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Product Dimensions (W×D×H) | 19.00 × 13.00 × 2.00 cm (7.48" × 5.12" × 0.79") |
| Product Weight | 0.2 kg (0.5 lbs) |
| Shipping Dimensions | 34.50 × 16.50 × 5.20 cm (13.58" × 6.50" × 2.05") |
| Shipping Weight | 0.4 kg (0.8 lbs) |
| Environmental Compliance | RoHS, WEEE |
| Safety | CE certified |
