Description

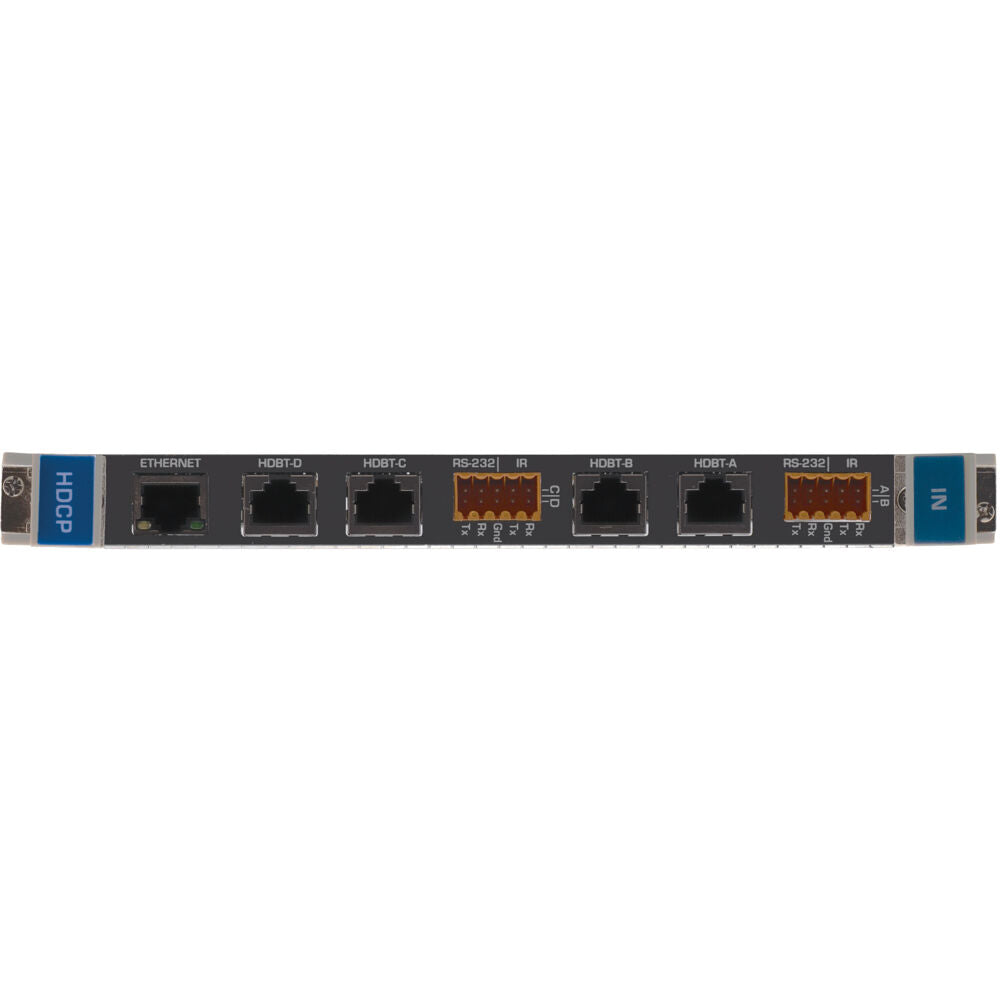

The Kramer HDBT-IN4-F32/STANDALONE is a professional 4-channel HDMI over HDBaseT input card designed for the VS-3232 Series Modular Multi-Format Digital Matrix Switchers. Engineered for high-performance AV distribution, this card receives extended-reach HDBaseT signals—including HDMI, bidirectional RS-232, Ethernet, and IR—delivering reliable long-distance transmission across twisted-pair cabling.
Supporting up to 6.75Gbps total video bandwidth and full HDBaseT functionality, the HDBT-IN4-F32 ensures seamless integration into medium-to-large routing environments. With a system range of up to 130m in standard mode and up to 180m in ultra mode (1080p @60Hz @24bpp), it provides exceptional flexibility for demanding installations. Built to meet CE, HDCP, RoHS, and WEEE compliance, this card is ideal for broadcast, corporate, education, and command-and-control deployments.
| Category | Details |
|---|---|
| Product Type | 4-Channel HDMI over Extended-Reach HDBaseT Input Card |
| Inputs | 4 HDBaseT TP on RJ-45; 2 RS-232 ports; 2 IR ports (10-pin terminal blocks); 1 Ethernet port (RJ-45) |
| Max Data Rate | 6.75Gbps total (2.25Gbps per channel) |
| System Range | 130m (430 ft) normal; 180m (590 ft) ultra mode (1080p @60Hz @24bpp) |
| 3D Pass-Through | Supported |
| Bandwidth | Video: 2.25Gbps per channel; Serial: 115200 |
| Standards Compliance | HDCP 1.4, HDMI 1.3a, HDBaseT |
| Environmental Compliance | RoHS, WEEE |
| Safety Compliance | CE |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Power Consumption | 28W |
| Dimensions (W x D x H) | 22.00 × 18.00 × 2.00 cm (8.66" × 7.09" × 0.79") |
| Product Weight | 0.2 kg (0.5 lbs) approx. |
