Description

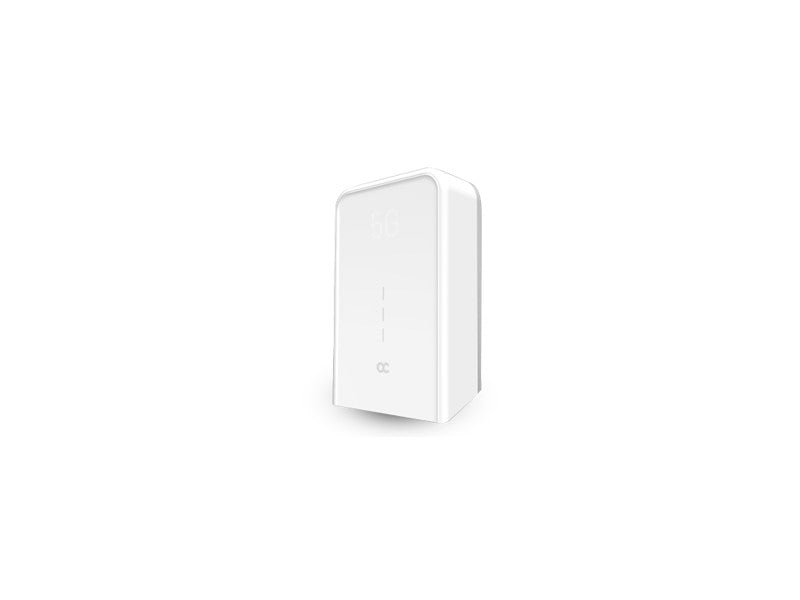

The AudioCodes Mediant 5G-EA Extended Access Module (M5G-EA-EU) delivers high-performance 5G WAN connectivity in a rugged outdoor IP65 enclosure, designed to enhance branch and small-business networking with reliable, high-speed wireless access. Acting as a 5G extension to any MSBR router, it transforms the customer premises router into a fully integrated 5G solution—combining multi-WAN resilience, robust data throughput, and optimized voice and security capabilities.
Equipped with six internal omnidirectional antennas and support for both SA and NSA modes, the Mediant 5G-EA ensures extended coverage and dependable performance in diverse deployment scenarios. The unit can be installed remotely—up to 100 meters from the indoor router—allowing placement in areas with optimal cellular reception for maximum signal quality. With its outdoor-rated IP65 protection and wide operating temperature range, it is built to perform in harsh environments. Power flexibility is also core to the design, supporting both PoE and external AC/DC power options.
The M5G-EA-EU empowers service providers and enterprises to deliver next-generation connectivity, ensuring seamless operations, enhanced network uptime, and superior end-user experience across distributed sites.
| Category | Specification |
|---|---|
| SKU | M5G-EA-EU |
| Model | Mediant 5G-EA |
| Device Type | 5G Extended Access Module / Router Extension |
| Use Case | Adds 5G WAN to MSBR routers for multi-WAN, voice, data, and security |
| Enclosure Rating | Outdoor IP65 (dustproof & waterproof) |
| Operating Temperature | -40°C to 55°C |
| Antenna Type | Six internal omnidirectional antennas |
| Cellular Technology | 5G Sub-6 |
| Cellular Modes | SA (Standalone), NSA (Non-Standalone) |
| Connectivity Technology | Wired |
| Data Transfer Rate | Up to 1 Gbps |
| Data Link Protocol | Gigabit Ethernet |
| Frequency Band | 5 GHz |
| Ports Quantity | 1 |
| Installation Range | Up to 100m from router via Ethernet |
| Power Options | Power over Ethernet (PoE) or external power supply |
| Dimensions / Weight | Approx. 3.97 lbs |
| UNSPSC Code | 43222609 |
