Description

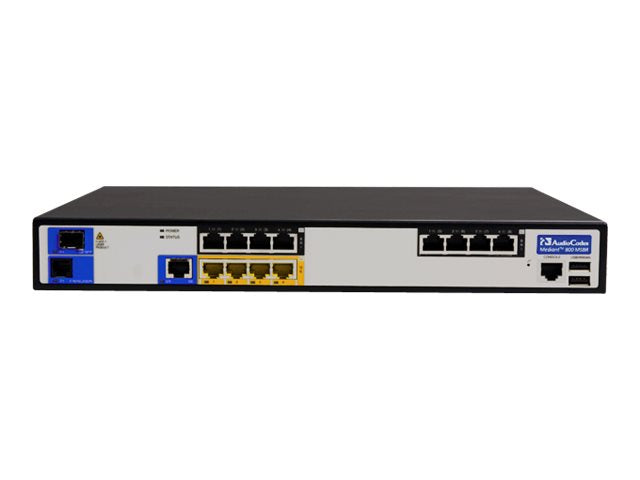

The AudioCodes M800B-2ET4SC-4L-GES Mediant 800B Multi-Service Business Router (MSBR) is a highly integrated platform designed for branch offices that require secure data routing, advanced VoIP services, and multi-interface connectivity in a single 1U appliance.
This MSBR combines routing, DSL modem capabilities, session border control, and analog/digital voice integration, making it an ideal choice for small to medium enterprise deployments and service-provider edge environments.
Equipped with 2 GE WAN ports, 4 GE LAN ports, 1 PRI E1/T1, 4 FXS ports, and an SFP uplink, the unit supports flexible deployment across mixed IP and legacy telephony networks. It also includes a powerful internal power supply, enterprise-grade security (IPSec, 256-bit AES, SHA), SIP trunking, transcoding support, and comprehensive remote-management standards (SNMP, SSH, HTTPS, TR-069, TR-104).
Designed for service assurance, resiliency, and smooth migration to IP-based voice, the M800B-2ET4SC-4L-GES offers high-precision clocking, advanced QoS, rich telephony codec support, and robust firewall/IPS protection—all in a rack-mountable, compact chassis.
| Category | Details |
|---|---|
| Manufacturer / Brand | AudioCodes |
| Model / SKU | M800B-2ET4SC-4L-GES |
| Device Type | Multi-Service Business Router (MSBR) / VoIP Router |
| Enclosure | Desktop or Rack-mountable (1U) |
| Color | Black / Gray |
| Connectivity Technology | Wired |
| Data Link Protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN Interfaces | 4 × 1000Base-T RJ-45 |
| WAN Interfaces | 2 × 1000Base-T RJ-45, 1 × 1000 Mbps SFP |
| Telephony Interfaces | 1 × PRI E1/T1 (RJ-48), 4 × FXS |
| Console / USB | 1 × RS-232 RJ-45 console, 2 × USB |
| DSL Modem | Integrated DSL modem |
| Routing Protocols | RIP-1/2, OSPFv2, BGP, PBR, Static Routing, IGMPv2 |
| Security / Encryption | IPSec, ESP, AES, 3DES, SHA-256, MD5, IDS/IPS, DoS protection |
| Management Protocols | SNMPv2/v3, SSH, HTTPS, ICMP, DHCP, TR-069, TR-098, TR-104, TR-181 |
| VoIP Features | SIP trunking, SIP over TCP/TLS/UDP, RTP/SRTP, echo cancellation, blacklisting |
| Voice Codecs | G.711, G.722, G.723.1, G.729a, AMR-NB/WB, Opus NB/WB, SILK NB/WB, T.38 |
| Sessions Capacity | 60 signaling/media sessions; 57 transcoding sessions |
| Registered Users | Max 500 |
| Jumbo Frame Support | Yes |
| Advanced Features | VLAN Tagging, QoS, DiffServ, WRED, NAC, DHCP client/server/relay, ZTP |
| Status Indicators | Power, LAN, WAN, Phone, DSL, Status |
| Compliant Standards | IEEE 802.1Q, 802.1p, 802.1x |
| Operating Temperature | 5°C to 40°C |
| Dimensions (W × D) | 34.5 cm × 32 cm |
| Weight | 2.7 kg |
| Power | Internal PSU; AC 120/230V (50–60Hz) |
