Description

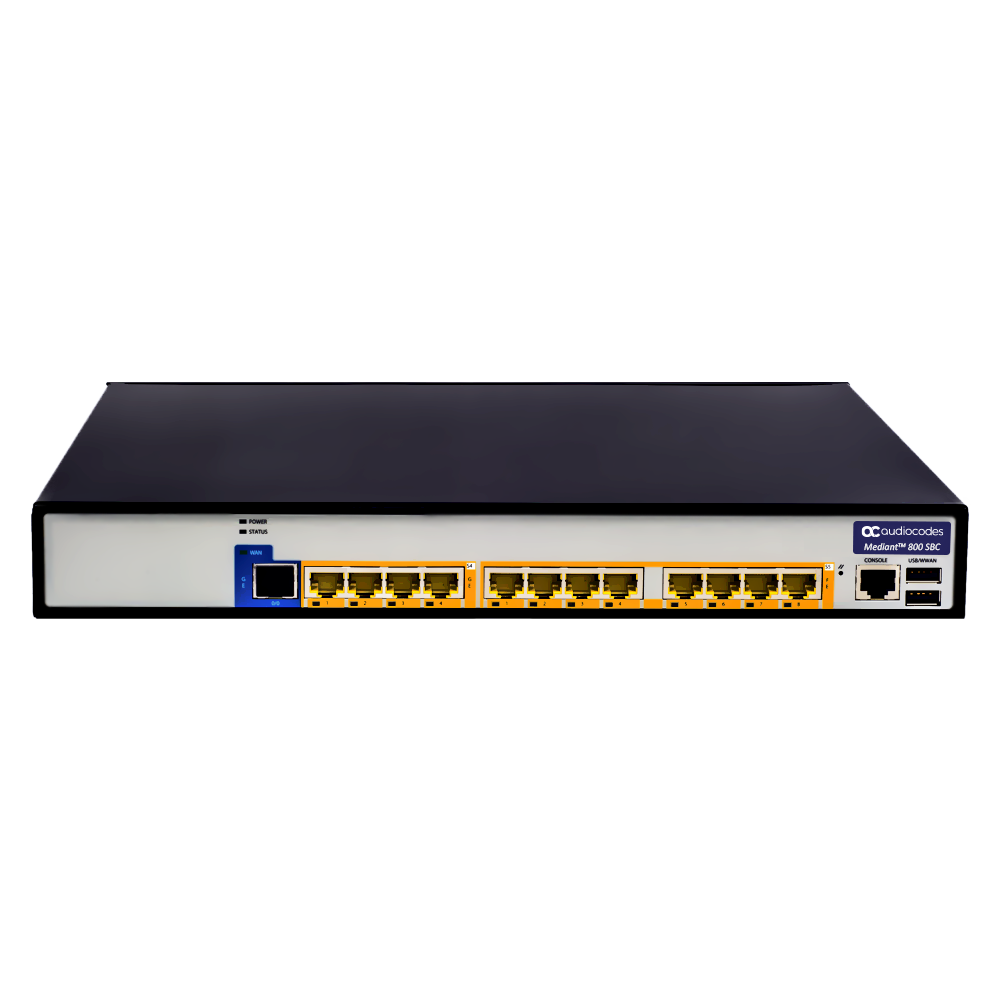

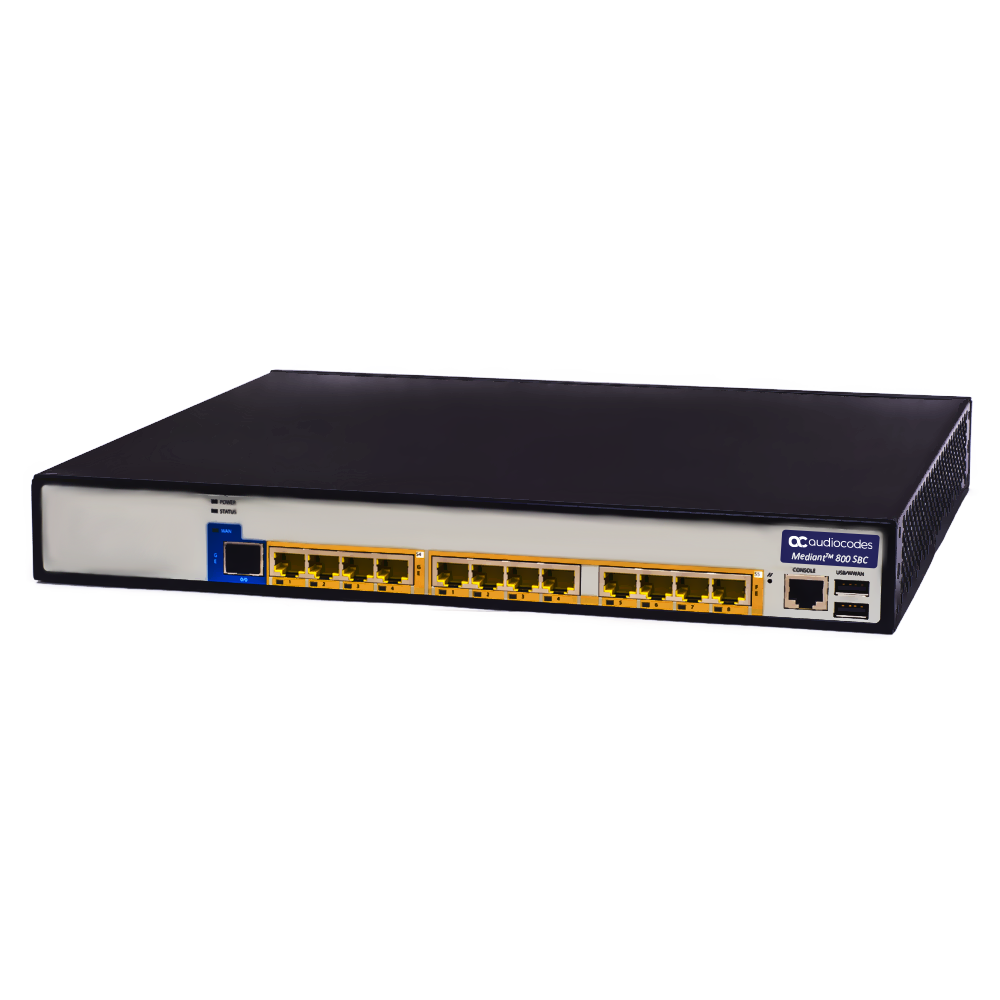

The AudioCodes Mediant 800B-V-4S4O-4L is a powerful hybrid Enterprise Session Border Controller (E-SBC) and media gateway engineered to deliver secure VoIP connectivity, advanced SIP interoperability, and seamless integration between legacy telephony and modern IP communications. Designed for SMB and branch environments, this platform combines 4 FXS ports, 4 FXO ports, and multiple Gigabit Ethernet interfaces to support flexible, scalable voice deployments.
Backed by AudioCodes’ advanced VoIPerfectHD architecture, the Mediant 800B delivers rich SIP normalization, intelligent routing, enhanced perimeter security, and comprehensive monitoring to ensure optimal voice quality and service reliability. It scales up to 250 signaling and RTP/SRTP sessions, enabling smooth migration to SIP trunking while preserving existing PBX infrastructure and providing PSTN fallback for survivability.
Ideal for enterprises requiring secure SIP connectivity, analog/TDM integration, and high-performance VoIP processing, the M800B-V-4S4O-4L offers true hybrid functionality, top-tier resiliency with 1+1 high availability options, and embedded DSP resources for transcoding, DTMF handling, faxing, and media optimization.
| Category | Details |
|---|---|
| Brand | AudioCodes |
| Model / SKU | Mediant 800B – M800B-V-4S4O-4L |
| Product Type | Hybrid E-SBC & Media Gateway |
| Concurrent SBC Sessions | Up to 250 SIP signaling sessions (M800B) |
| Max RTP/SRTP Sessions | 250/250 sessions (M800B) |
| Max Transcoding Sessions | 57 sessions (M800B) |
| Registered Users Supported | Up to 1500 users (M800B) |
| Analog Interfaces | 4 × FXS, 4 × FXO ports |
| Digital TDM Interfaces | Supports up to 4 × E1/T1 (not included in this specific SKU) |
| Ethernet Interfaces | 4 × 1GbE (or 4 GE + 8 FE depending on configuration) |
| Security Features | DoS/DDoS protection, SIP firewall, TLS/DTLS/SRTP, topology hiding, IDS/IPS |
| Media Handling | Codec transcoding, DTMF/RFC2833/SIP, T.38 fax, jitter buffer, echo cancellation |
| Vocoder Support | G.711, G.723.1, G.726, G.729A/B, GSM-FR, AMR-NB/WB, SILK, Opus, iLBC |
| High Availability | 1+1 two-box redundancy, survivability, PSTN fallback |
| WebRTC Support | WebRTC-to-SIP interworking (Opus, VP8, DTLS, WebSocket) |
| Management Interfaces | GUI, CLI, SNMP, REST API, OVOC |
| Form Factor | 1U desktop/rack-mount |
| Dimensions (H×W×D) | 1U × 345 mm × 320 mm |
| Operating Temperature | 5°C to 40°C |
| Power | Internal AC 100–240V; optional 12V DC external adapter |
