Description

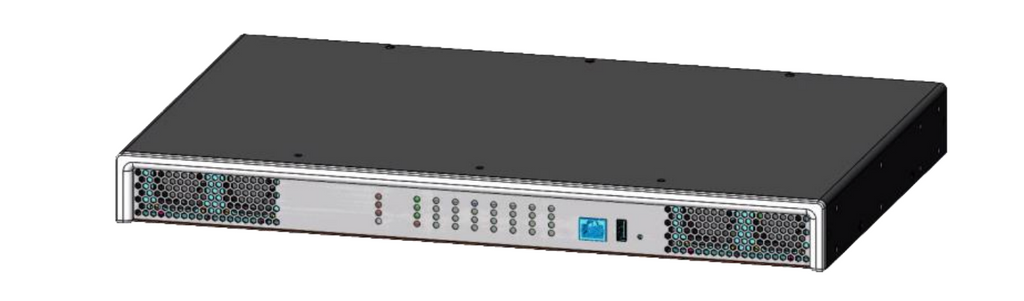

The AudioCodes MediaPack MP-516 is a high-performance VoIP gateway designed for reliable, scalable, and secure analog-to-IP connectivity. Featuring 16 FXS ports, 1GbE networking, advanced voice processing, and broad SIP interoperability, the MP-516 delivers exceptional audio quality and robust telephony services for enterprise, carrier, and multi-tenant environments.
Engineered for flexibility, this compact 1U gateway can be deployed on a surface or mounted in a standard rack, making it ideal for branch offices, call centers, hospitality, and unified communications environments. With support for leading voice codecs (G.711, G.722, G.723.1, G.729a), strong security protocols (TLS, SRTP), routing capabilities, and zero-touch provisioning, the MP-516 ensures simplified management and superior operational efficiency.
Built with enterprise-grade reliability, integrated redundancy options, and a comprehensive feature set including T.38 fax, dynamic jitter buffer, echo cancellation, 3-way conferencing, and voice security (SBC), the MP-516 is a proven solution for organizations migrating to or expanding their IP telephony infrastructure.
| Category | Specification |
|---|---|
| SKU | MP516/16S/SIP |
| Device Type | VoIP Gateway |
| Ports / Interfaces | 16 × FXS (RJ-11) |
| Network Interfaces | 2 × 1000Base-T RJ-45 (WAN) 1 × 1000Base-T RJ-45 (LAN) |
| Additional Interfaces | 1 × Console RJ-45 1 × USB 3.0 Type-A |
| Connectivity Technology | Wired |
| Data Link Protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| VoIP Protocols | SIP, SIP over TCP/UDP/TLS, RTP, SRTP |
| IP Telephony Features | T.38 Fax, CNG, G.165 echo cancellation, jitter buffer, blacklisting, caller ID, 3-way conferencing, message waiting indicator |
| Voice Codecs | G.711, G.722, G.723.1, G.729a |
| Management Protocols | SNMPv2/v3, SSH, Telnet, TR-069, TR-098, TR-181, TR-104, HTTP/HTTPS |
| Routing Protocols | RIP-1, RIP-2, OSPFv2, BGP |
| Advanced Networking Features | DHCP (client/relay/server), VLAN tagging, IPv4/IPv6 dual stack, static routing, policy-based routing, IDS/IPS, DiffServ, WRED, Class-Based Queueing, Jumbo Frames |
| Authentication | RADIUS, TACACS |
| Form Factor | Surface / Rack-mountable |
| Rack Height | 1U |
| Dimensions (W × D × H) | 44.3 cm × 28.8 cm × 1U |
| Weight | 2.6 kg |
| Operating Temperature | 5°C to 40°C |
| Operating Humidity | 10–90% non-condensing |
| Color | Black / Silver |
| Compliant Standards | IEEE 802.1Q, 802.1x, 802.1p, UL 62368-1, EN 62368-1, GR-30-CORE Type 1 |
| Power | Internal PSU AC 90–240V or DC 18–54V, 50/60 Hz |
| Installed Power Qty | 2 |
| Max Supported Power Qty | 2 |
| Warranty | 1-Year Limited Warranty |
| Packaged Quantity | 1 |
