Description

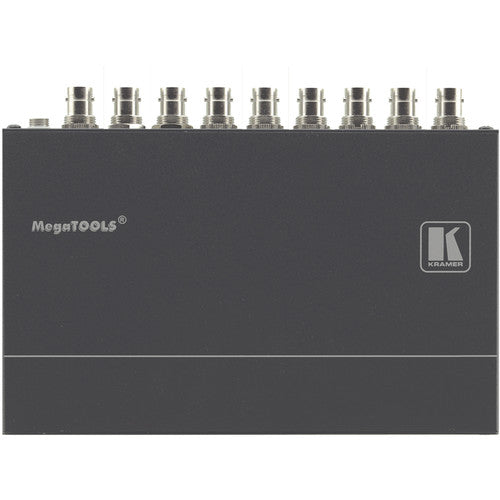

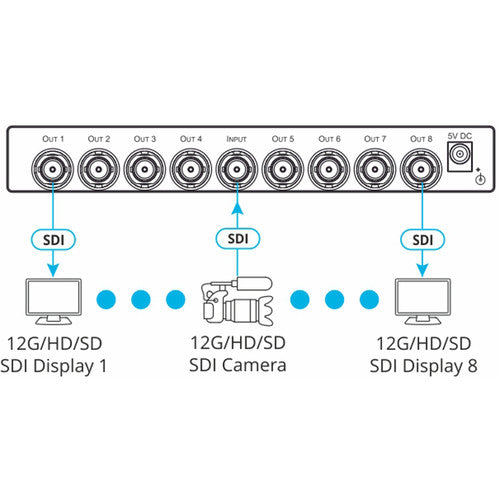

The Kramer VM-8UX is a compact, high-performance 1:8 12G-SDI distributor designed for professional broadcast workflows requiring pristine 4K signal distribution. It automatically adapts to the incoming SDI data rate, equalizes and re-clocks the signal to extend transmission distance, and delivers eight identical, ultra-stable outputs. Built with reliable lockable BNC connectors and a fanless DigiTOOLS™ enclosure, the VM-8UX ensures robust, noise-free operation in studios, production facilities, and live broadcast environments.

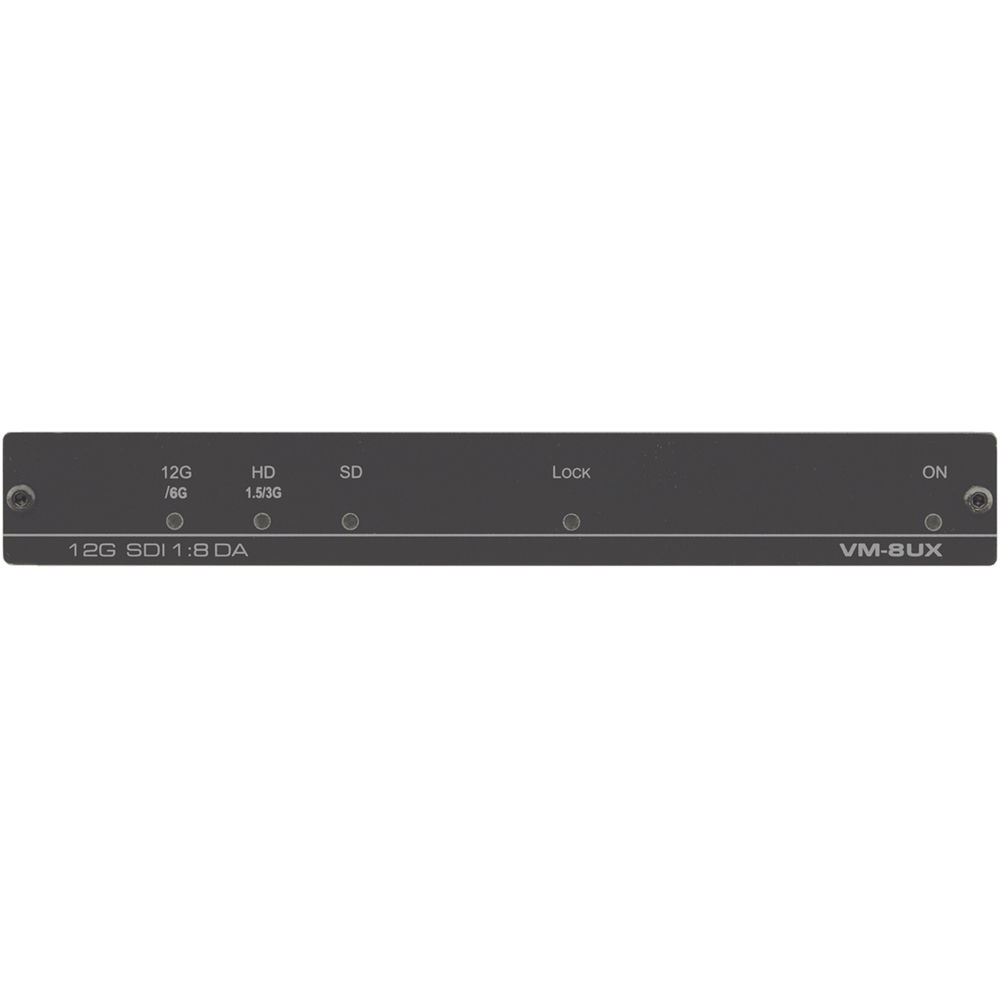

Engineered for long-reach SDI transmission, the VM-8UX supports up to 12Gbps, handles embedded audio and metadata, and meets key SMPTE standards for SD, HD, 3G, 6G, and 12G-SDI formats. LED indicators simplify diagnostics, and its compact size makes it easy to deploy in tight or overhead spaces.
| Category | Details |
|---|---|

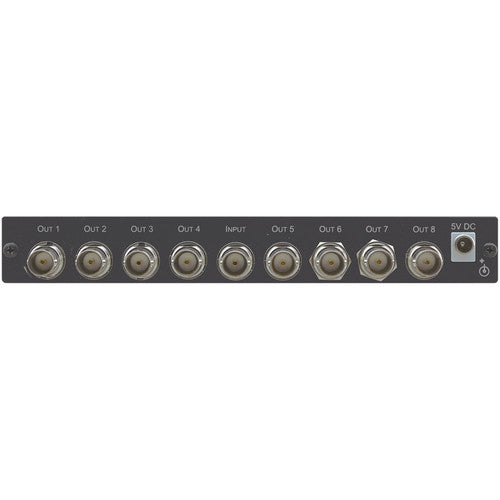

| Input | 1 SDI input, SMPTE 259M/292M/344M/424M/ST-2081/ST-2082 compliant, 75Ω BNC |
| Outputs | 8 equalized & re-clocked SDI outputs, 75Ω BNC |
| Supported Data Rates | 270Mbps to 12Gbps |
| Max Resolution | 4K@60Hz (4:2:2) 30bpp |
| Cable Equalization Reach | Up to 300m (SD), 200m (1.5G HD), 100m (3G/6G), 80m (12G 4K) |
| Maximum Output Level | 800mVpp / 75Ω |
| Coupling | AC |
| Standards Compliance | SMPTE 259M, 292M, 344M, 424M, ST-2081, ST-2082 |
| Power Consumption | 5V DC, 400mA |
| Power Source | 5.2V / 4A |
| Enclosure | Aluminum DigiTOOLS, fanless |
| Cooling | Convection |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Humidity | 10% to 90% non-condensing |
| Product Dimensions (W×D×H) | 18.75 × 11.50 × 2.54 cm (7.38" × 4.53" × 1.00") |
| Product Weight | 0.5 kg (1.1 lbs) |
| Shipping Dimensions | 34.50 × 16.50 × 5.20 cm (13.58" × 6.50" × 2.05") |
| Shipping Weight | 1.0 kg (2.2 lbs) |
| Included Accessories | Power supply, mounting bracket, 2 × BNC 75Ω terminators |
| Optional Accessories | RK-T2B 19" rack adapter |
