Description

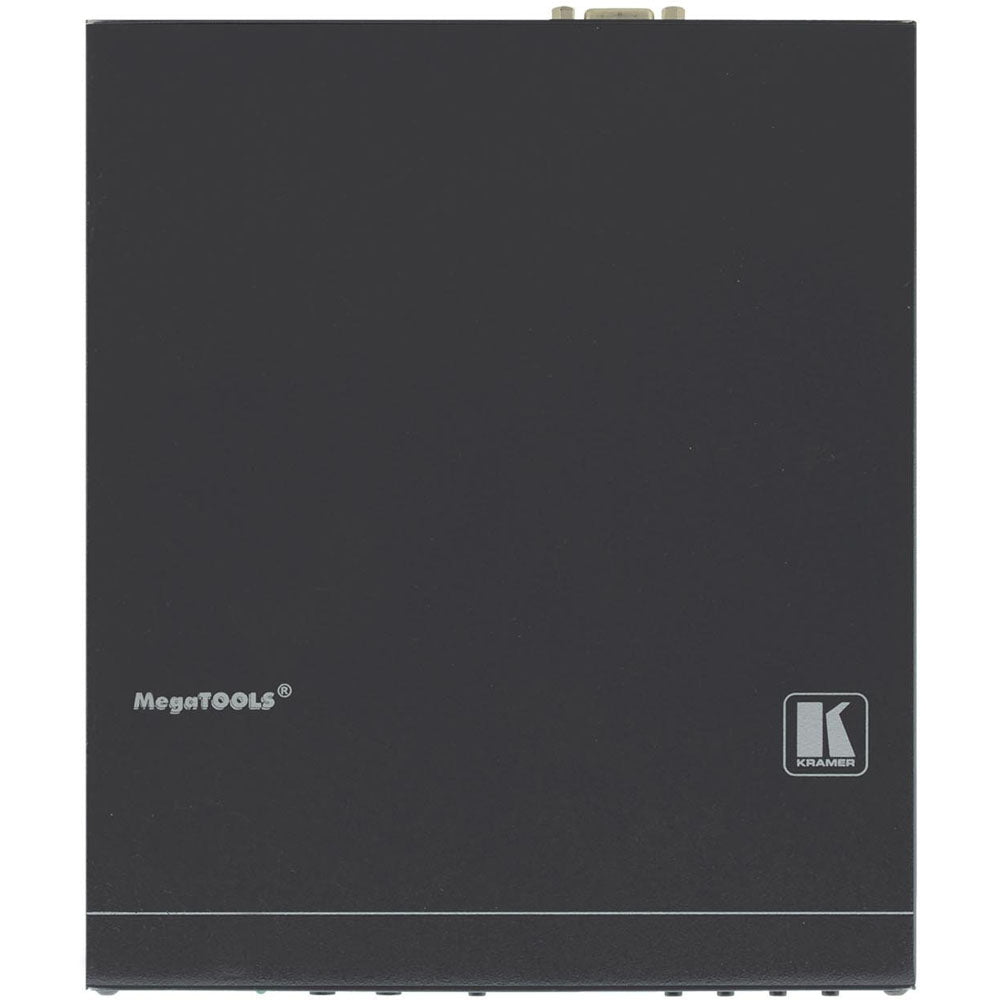

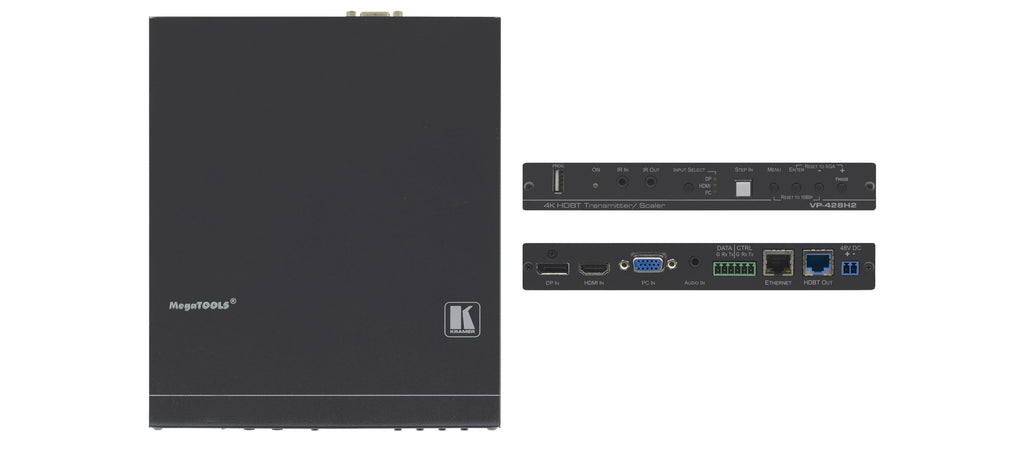

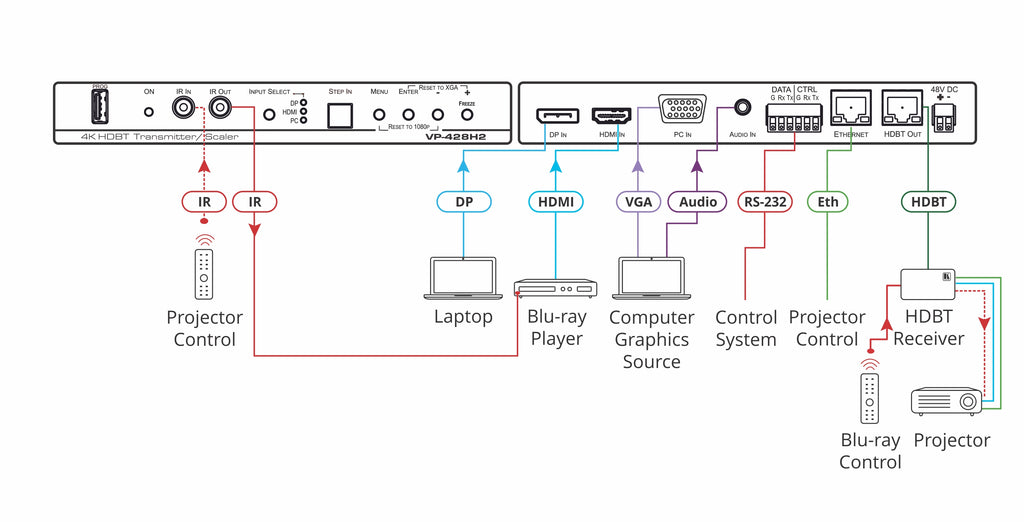

The Kramer VP-428H2 is a professional-grade 4K60 4:4:4 auto switcher and scaler designed for modern AV environments that require seamless switching, high-quality video processing, and long-distance signal extension over HDBaseT. Equipped with DisplayPort, HDMI, and VGA inputs, it automatically detects and switches to the active source while delivering exceptional image clarity through Kramer’s PixPerfect™ precision scaling technology.

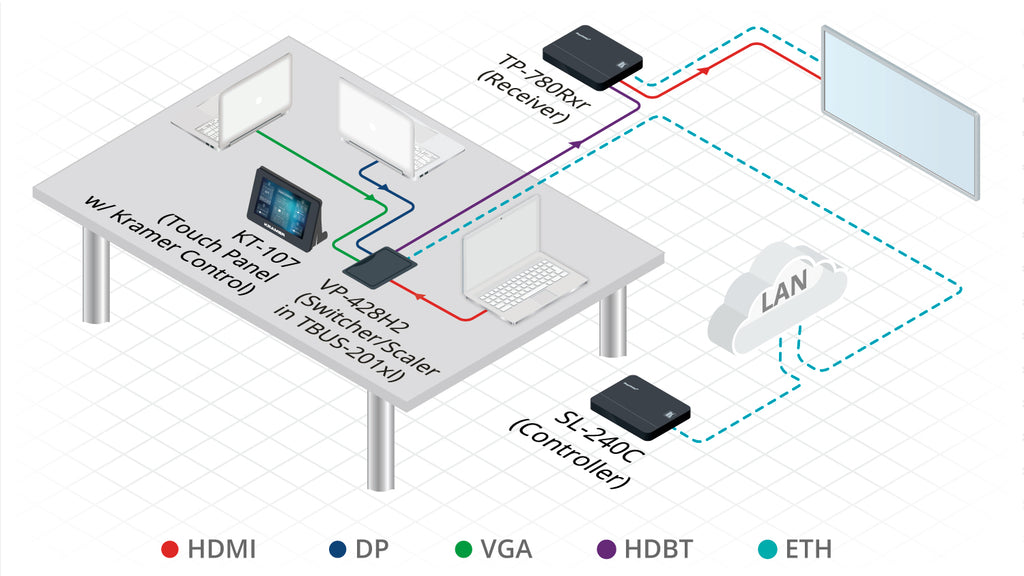

Ideal for classrooms, conference rooms, control centers, and digital signage applications, the VP-428H2 outputs video up to 4K60 (4:2:0) over HDBaseT with a transmission distance up to 100 meters using recommended cabling. It also provides PoE to power a compatible HDBaseT receiver, simplifying installation and reducing the need for external power supplies.
With built-in Ethernet, bidirectional RS-232 and IR tunneling, OSD control, front-panel buttons, and flexible configuration options, this switcher/scaler delivers reliable performance and intuitive operation for any professional AV deployment.
| Category | Details |
|---|---|
| Inputs | 1 DisplayPort; 1 HDMI; 1 VGA (15-pin HD); 1 Stereo Analog Audio (3.5mm); 1 IR (3.5mm) |
| Outputs | 1 HDBaseT (RJ-45); 1 IR (3.5mm) |
| Ports | 1 Ethernet (RJ-45); 1 USB-A; 1 RS-232 Data (3-pin); 1 RS-232 Control (3-pin) |
| Max Data Rate | 10.2Gbps (3.4Gbps per channel) |
| Max Input Resolution | 4K @ 60Hz (4:4:4) |
| Max Output Resolution | 4K @ 60Hz (4:2:0) |
| Compliance | HDMI 2.0, HDCP 2.2, HDBaseT Certified |
| Scaling Modes | Up-scaling, down-scaling, or bypass |
| Video Latency | 2–3 frames |
| Switching Time | 2–3 seconds |
| HDBaseT Range | Up to 100m (330 ft) |
| Power | Input: 48V DC; Consumption: 1.36A; Provides PoE on HDBaseT output |
| Control Options | Front panel buttons, RS-232, OSD menu |
| Audio | Unbalanced stereo and embedded audio |
| Features | Auto input switching, PixPerfect™ scaling, non-volatile memory, Ethernet/RS-232/IR tunneling |
