Description

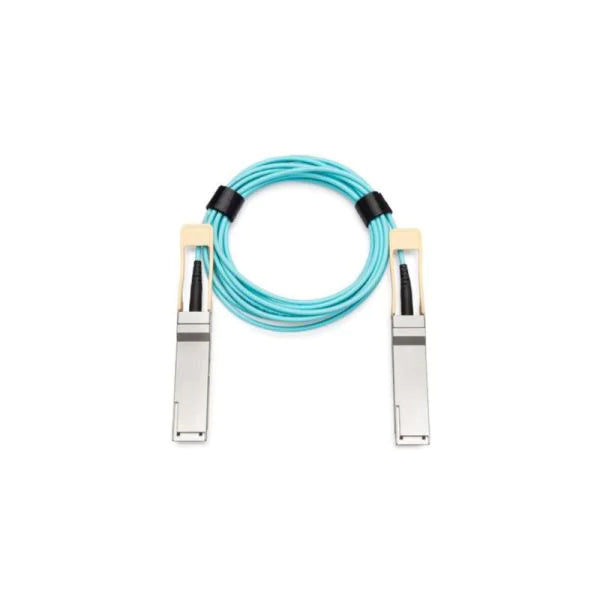

The NVIDIA Mellanox MFA1A00-C020 is a 20-meter active fiber cable designed for high-speed 100 Gigabit Ethernet connectivity in data centers, high-performance computing environments, and enterprise networks. Featuring QSFP connectors and support for data rates up to 100Gb/s, it provides reliable, low-latency connectivity between compatible networking equipment.
Built with single-mode fiber and a Low Smoke Zero Halogen (LSZH) jacket, the MFA1A00-C020 is suitable for installations where performance, cable reach, and environmental safety are important. It supports operation from 0°C to 70°C and is designed for interoperability with IEEE-compliant 100G interfaces.
Product Highlights
- Supports 100GbE Ethernet connectivity
- Data rate up to 100Gb/s
- 20-meter active fiber cable
- QSFP connector interface
- Single-mode fiber construction
- LSZH cable jacket
- Maximum power consumption of 1.5W
- Operating temperature range of 0°C to 70°C
- Integrated clip/locking mechanism
- RoHS, WEEE, and REACH compliant
Technical Specifications
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| Model / SKU | MFA1A00-C020 |
| Product Type | Active Fiber Cable |
| Network Type | Ethernet |
| Ethernet Standard | 100GbE |
| Data Rate | 100Gb/s |
| Connector Type | QSFP |
| Cable Length | 20 meters |
| Fiber Type | Single-Mode Fiber |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Maximum Power Consumption | 1.5W |
| Maximum Supported Distance | 100 meters |
| Insertion Loss | ≤ 0.5 dB |
| Return Loss | ≥ 20 dB |
| Pull Tab Color | Black |
| Clip / Lock | Integrated |
| EMI Compliance | Compliant |
| Interface Compatibility | Interoperable with IEEE-compliant 100G interfaces |
| Compliance | RoHS |
| Environmental Compliance | WEEE, REACH |
| Warranty | 1-Year Limited Warranty |
