Description

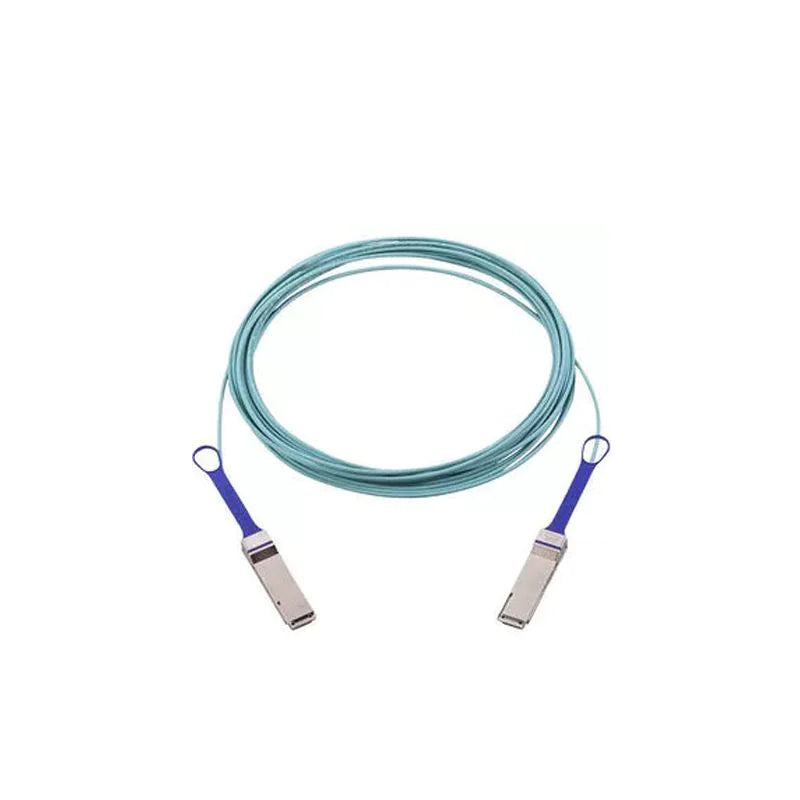

The MFA1A00-C030 NVIDIA/Mellanox Compatible 100G QSFP28 Active Optical Cable (AOC) provides a high-speed 100Gbps QSFP28-to-QSFP28 connection over a 30-meter (98.43 ft) optical cable.
Designed for 100G Ethernet applications, this active optical cable is suited for direct connections between switches, servers, and network interface cards within or between adjacent racks. Its lightweight and slim optical construction helps simplify cable routing and management compared with traditional copper cabling.
The cable operates at an 850nm wavelength, supports a 3.3V power supply, and consumes less than 2.2W. It is designed for commercial environments operating from 0Β°C to 70Β°C and supports IEEE 802.3bm and SFF-8665 protocols. The assembly is hot-pluggable and compliant with QSFP28 MSA and RoHS-6 requirements.
Key Features
- NVIDIA/Mellanox MFA1A00-C030 compatible
- 100Gbps data rate
- QSFP28-to-QSFP28 connectivity
- 30m (98.43 ft) cable length
- Active optical cable construction
- Designed for multimode fiber connections
- 850nm wavelength
- Less than 2.2W power consumption
- 30mm minimum bend radius
- OFNP jacket material
- Hot-pluggable QSFP28 design
- Supports IEEE 802.3bm and SFF-8665
- Designed for 100G Ethernet applications
- Approximate MTBF of 50 million hours
Technical Specifications
| Specification | Details |
|---|---|
| SKU / Compatible Part Number | MFA1A00-C030 |
| Compatibility | NVIDIA/Mellanox |
| Product Type | Active Optical Cable (AOC) |
| Form Factor | QSFP28 to QSFP28 |
| Data Rate | 100Gbps |
| Cable Length | 30m (98.43 ft) |
| Cable Type | Optical Cable |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Wavelength | 850nm |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| Minimum Bend Radius | 30mm |
| Jacket Material | OFNP |
| Power Consumption | <2.2W |
| Power Supply | 3.3V |
| Operating Temperature | 0Β°C to 70Β°C (32Β°F to 158Β°F) |
| MTBF | Approx. 50 Million Hours |
| Protocols | IEEE 802.3bm, SFF-8665 |
| Application | 100G Ethernet |
| Connector Type | QSFP28 to QSFP28 |
| Compliance | QSFP28 MSA, RoHS-6 |
| Hot-Pluggable | Yes |
