Description

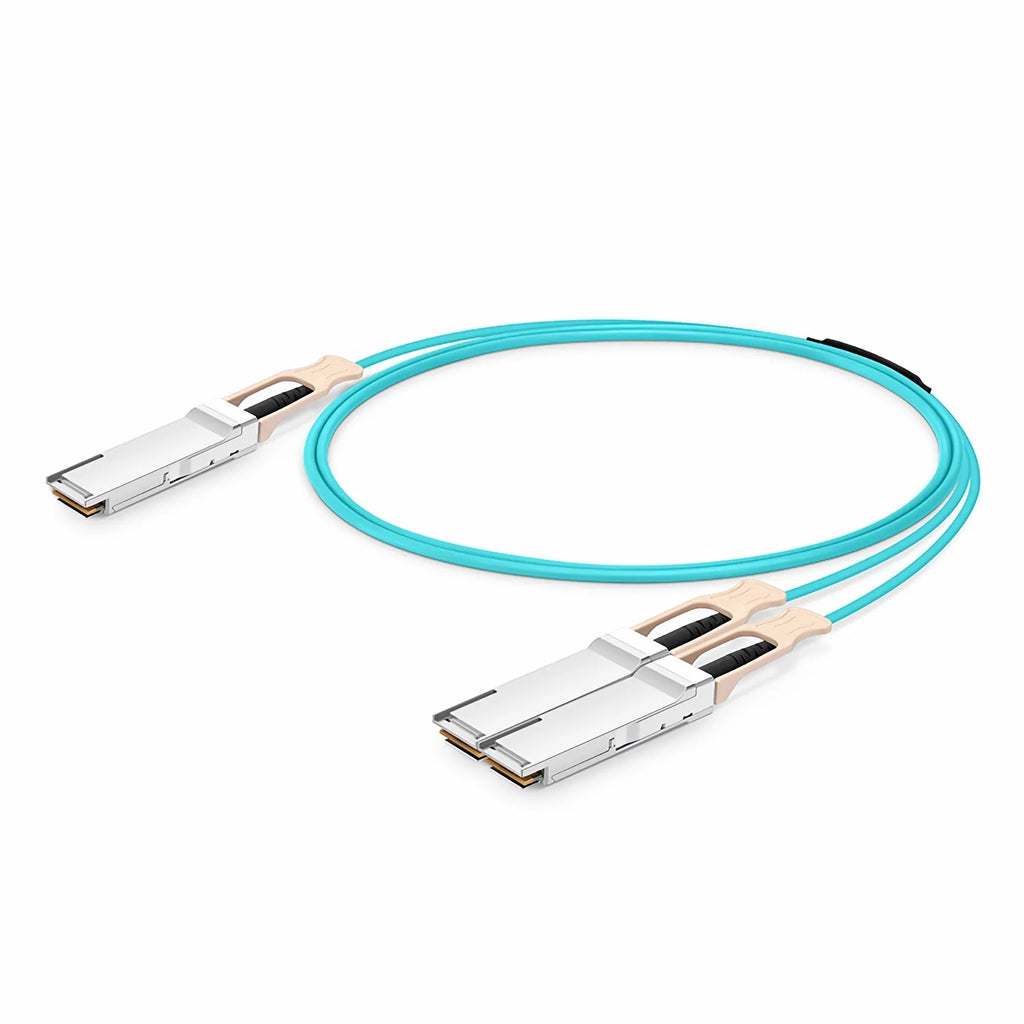

The NVIDIA MFS1S50-H003V is a 3-meter VCSEL-based active optical splitter cable. It connects one 200Gb/s QSFP56 port to two separate 100Gb/s QSFP56 ports, such as a switch and two servers. It supports InfiniBand HDR to 2x HDR100 and 200GbE to 2x 100GbE. Data from the four multimode fiber pairs on the 200G end is routed to the dual pairs on each 100G end. Every end includes an EEPROM for product and status monitoring information, and the cable is hot-pluggable.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA |
| MPN | MFS1S50-H003V |
| Product Type | QSFP56 Active Optical Splitter Cable (VCSEL, multimode, low latency) |
| Configuration | 200Gb/s to 2x 100Gb/s |
| Protocols | InfiniBand HDR to 2x HDR100; 200GbE to 2x 100GbE |
| Modulation | 4x 50Gb/s PAM4 |
| Connectors | 1 x QSFP56 to 2 x QSFP56 (SFF-8665) |
| Length | 3m |
| Length Tolerance | +300 / -0mm |
| Cable Diameter | 3 Β± 0.2mm |
| Minimum Bend Radius | 30mm |
| Cable Color | Aqua |
| Power, 200Gb/s End | 4.5W typical, 5.0W max |
| Power, 100Gb/s End | 3.0W typical, 3.5W max |
| Supply Voltage | 3.135β3.465V (3.3V typical) |
| Management | SFF-8636 IΒ²C with DDM |
| Operating Case Temperature | 0Β°C to 70Β°C |
| Storage Temperature | -40Β°C to 85Β°C |
| Operating Humidity | 5% to 85% |
| Laser Safety | Class 1 (IEC 60825-1, IEC 60825-2, 21 CFR 1040) |
| Safety / EMC | CB, cTUVus, CE / CE, FCC, ICES, RCM, VCCI |
| Compliance | RoHS |
