Description

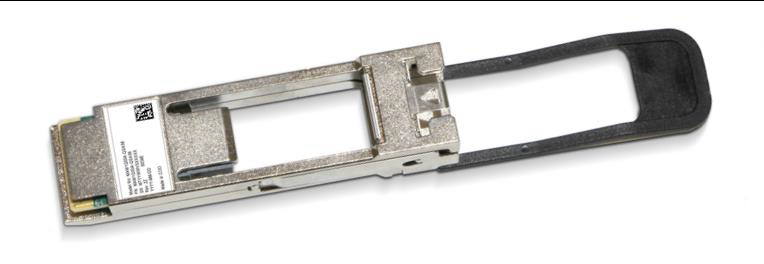

The NVIDIA Mellanox MAM1Q00A-QSA28 is a QSFP28-to-SFP28 adapter, also known as the QSA28. It lets a single-lane SFP28 transceiver, AOC or DAC cable plug into a quad-lane QSFP28 port on a switch or network adapter. The adapter has a QSFP28 form factor with an SFP28 receptacle and routes the high-speed data channel of the SFP28 to lane 1 of the QSFP28 connector.
The adapter conforms to SFF-8665 on the QSFP28 side and SFF-8402 on the SFP28 side. It provides a direct path to the SFP unit's memory and is vendor agnostic, which makes it useful for integrating equipment from different vendors. It is also qualified for 10GbE SFP+ and 1GbE SFP transceivers that meet the SFP MSA. The adapter draws a maximum of 0.1W and includes a built-in EEPROM for product identification.
Product Highlights
- Connects an SFP28 transceiver, AOC or DAC cable to a QSFP28 port
- QSFP28 side compliant with SFF-8665, SFP28 side compliant with SFF-8402
- Qualified for 10GbE SFP+ and 1GbE SFP transceivers
- Low insertion loss and matched impedance design
- Secure latching mechanism
- Built-in EEPROM for product identification
- RoHS-6 compliant
Technical Specifications
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| Manufacturer Part Number | MAM1Q00A-QSA28 |
| Product Type | QSFP28 to SFP28 Adapter (Cable Module) |
| Host Interface | QSFP28 |
| Module Receptacle | SFP28 |
| Data Rate | 100Gb/s port to 25Gb/s (25GbE) |
| Standards | QSFP28 MSA SFF-8665, SFP28 MSA SFF-8402 |
| Supply Voltage | 3.3V (3.135–3.465V) |
| Power Consumption | 0.1W max |
| Characteristic Impedance | 90–110Ω (100Ω typical) |
| Operating Case Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Other | Built-in EEPROM, secure latching, RoHS-6 compliant |
