Description
The AddOn Mellanox® MFA7A50-C010 Compatible 100GBase-AOC Active Optical Cable delivers high-performance, cost-effective connectivity for data centers, high-speed computing, and enterprise networking environments. Designed to meet the demands of 100G Ethernet and InfiniBand EDR applications, this active optical cable provides an aggregate data rate of 103.1 Gbps over a maximum reach of 10 meters using multi-mode fiber (MMF).

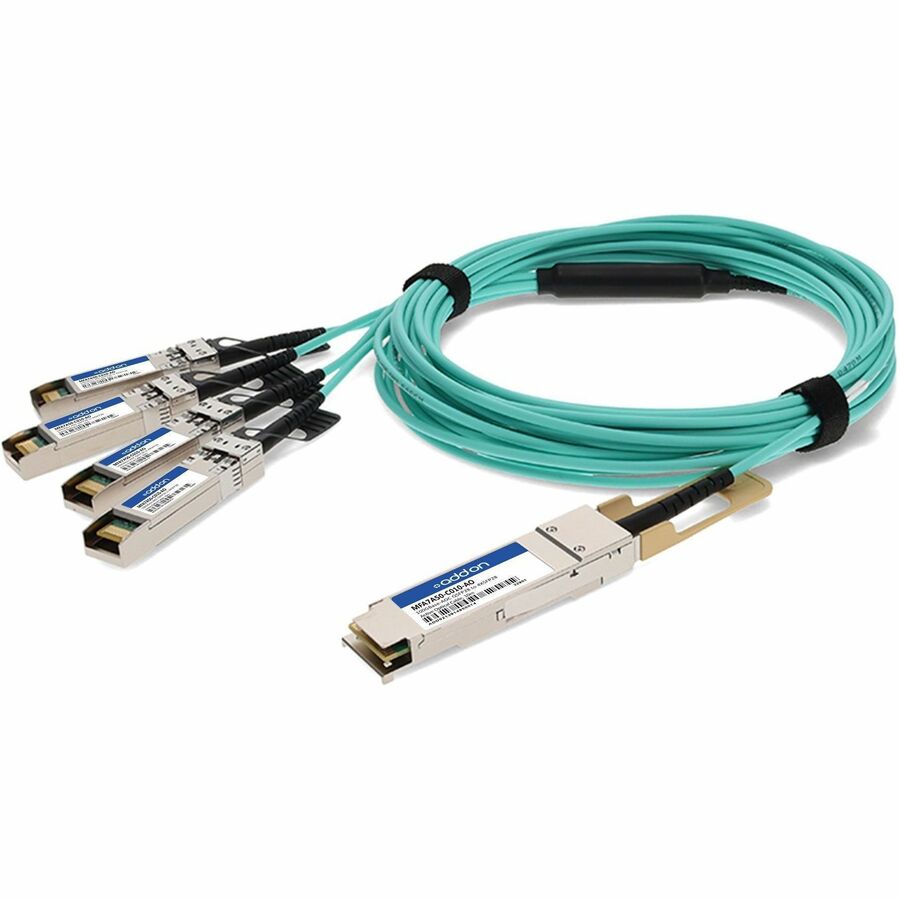

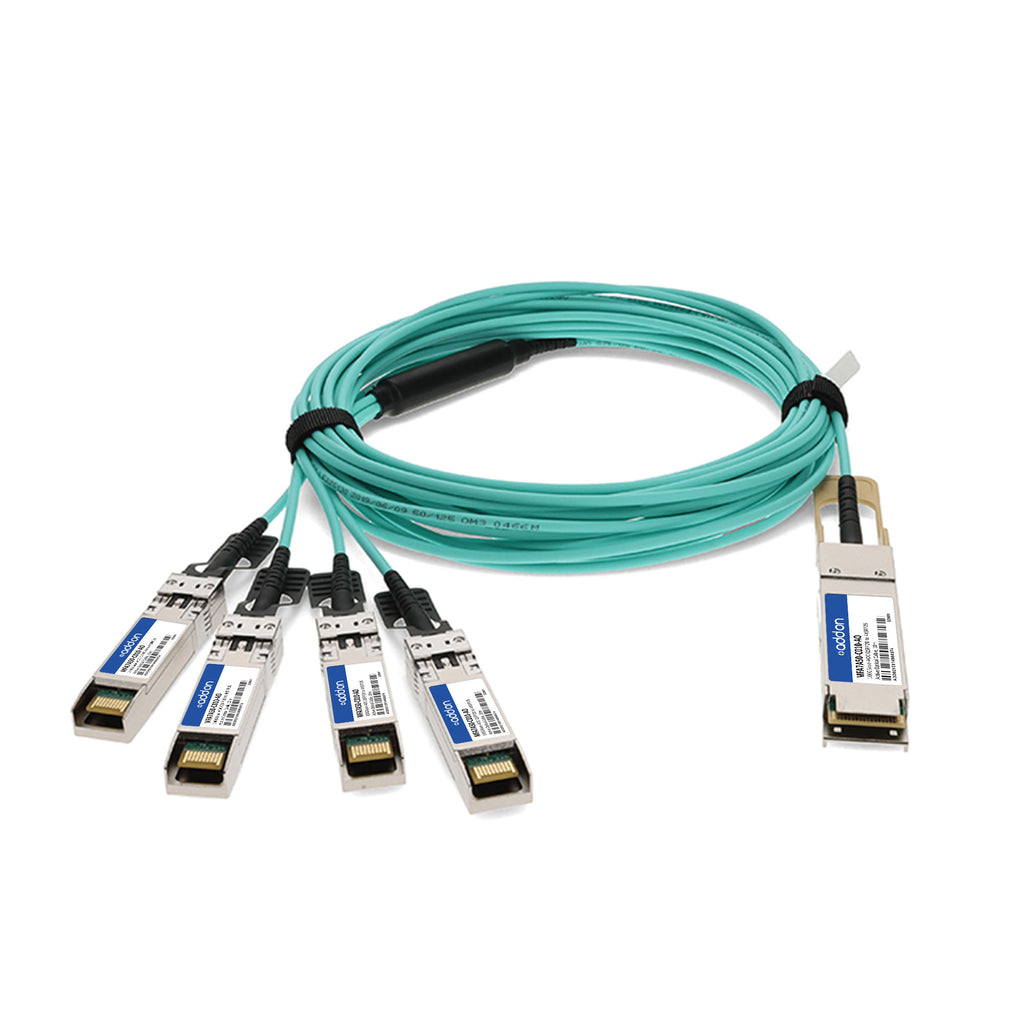

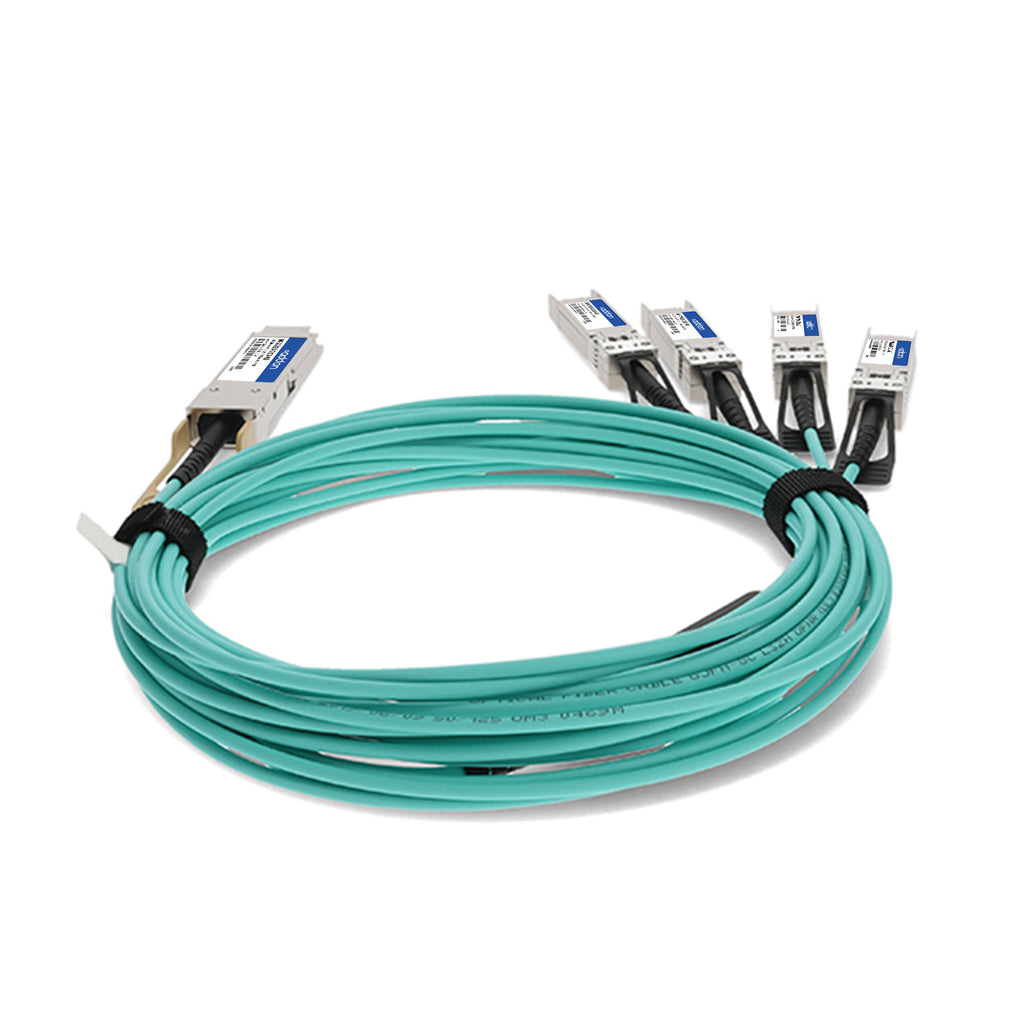

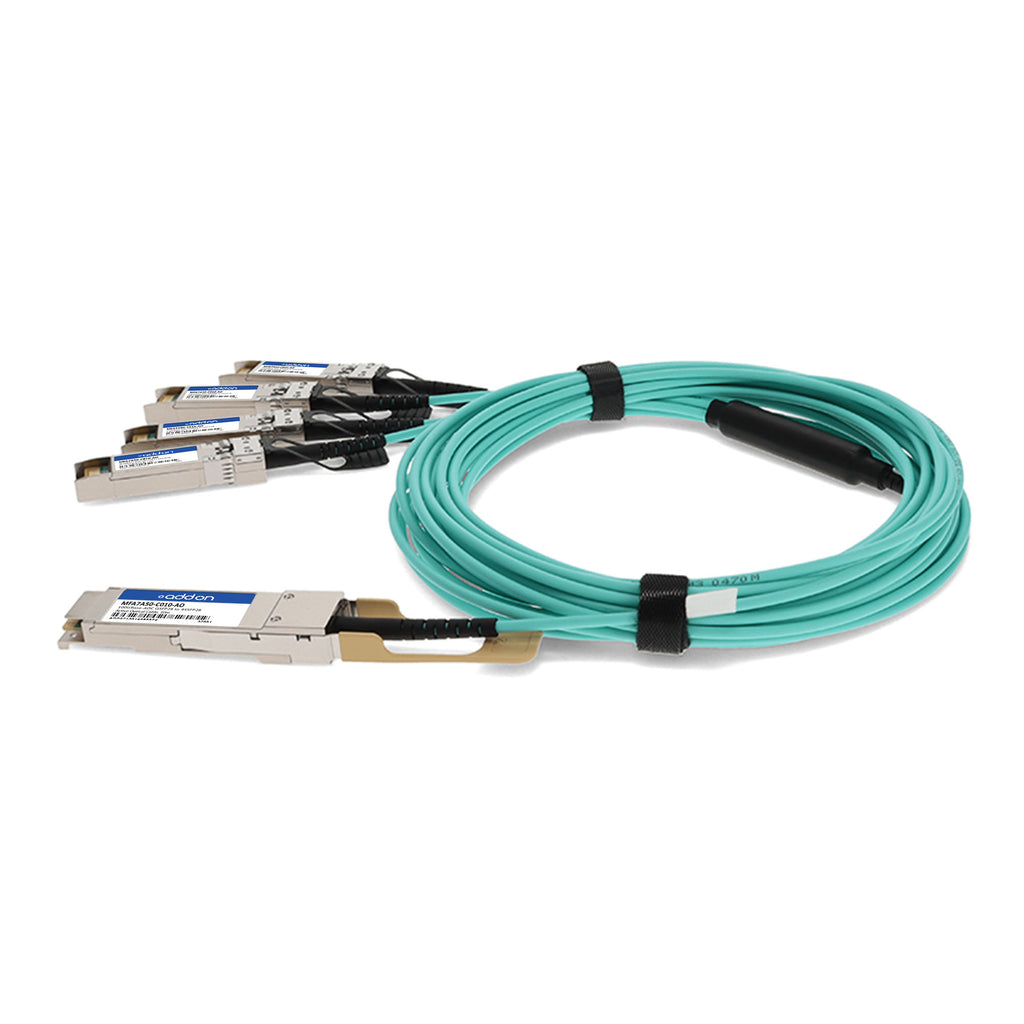

The cable features a QSFP28 connector on one end and 4x SFP28 connectors on the other, supporting four independent full-duplex channels with 25G electrical interfaces. Built to comply with MSA standards, this solution ensures seamless interoperability with existing network equipment. With a maximum power consumption of only 2.5 W on the QSFP28 terminal and 1.0 W per SFP28 terminal, it delivers efficient, high-density performance.
Each AddOn AOC is programmed, uniquely serialized, and rigorously tested for data traffic and application compatibility to guarantee 100% functionality. It is also TAA compliant, RoHS compliant, and lead-free, making it ideal for government and enterprise deployments requiring secure and reliable connectivity.
| Specification | Description |
|---|---|
| SKU | MFA7A50-C010-AO |
| Brand | AddOn |
| Compatibility | Mellanox® MFA7A50-C010 |
| Form Factor | QSFP28 to 4xSFP28 Active Optical Cable |
| Application | 100G Ethernet, InfiniBand EDR |
| Aggregate Data Rate | 103.1 Gbps |
| Per Channel Data Rate | 25.781 Gbps |
| Number of Channels | 4 independent full-duplex channels |
| Cable Length | 10 m |
| Wavelength | 850 nm |
| Fiber Type | MMF (Multi-Mode Fiber) |
| Maximum Reach | 10 m |
| Electrical Interface | OIF CEI-28G-VSR |
| Power Consumption (QSFP28 terminal) | Max. 2.5 W |
| Power Consumption (SFP28 terminal) | Max. 1.0 W each |
| Supply Voltage | 3.3 V (3.135 V – 3.465 V) |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | –40 °C to 85 °C |
| Relative Humidity | 0 % – 85 % (non-condensing) |
| Compliance | QSFP28 & SFP28 MSA, TAA, RoHS, Lead-Free |
| Warranty | Limited Lifetime Warranty |
