Description

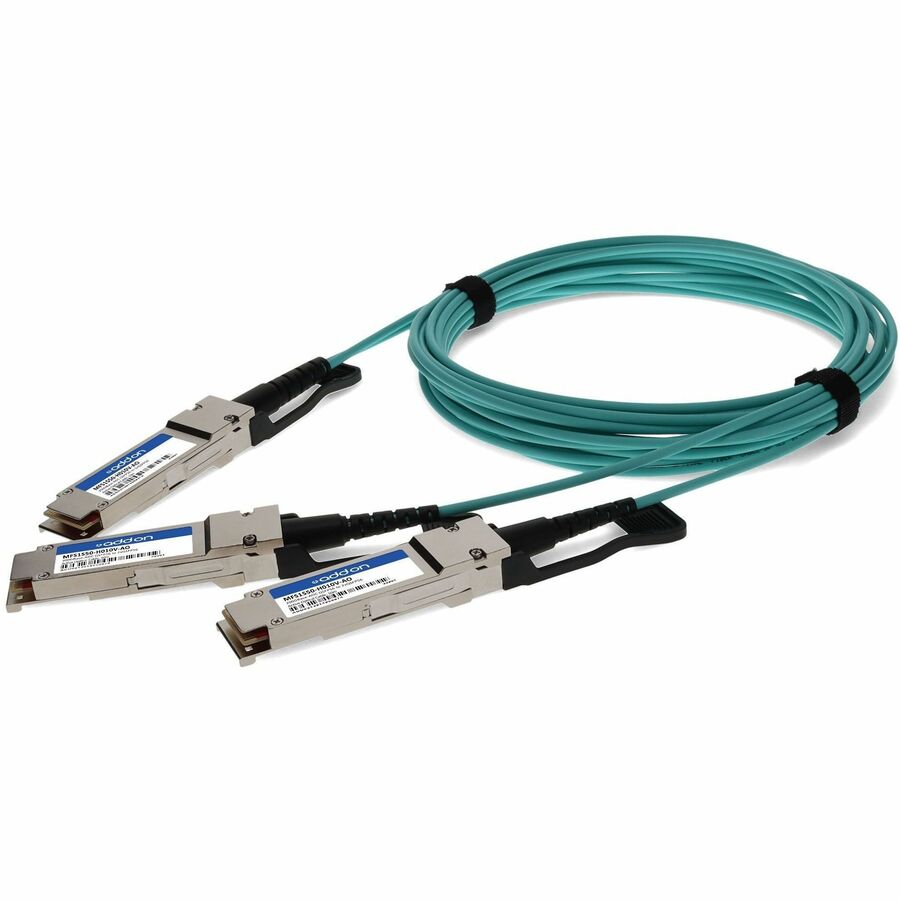

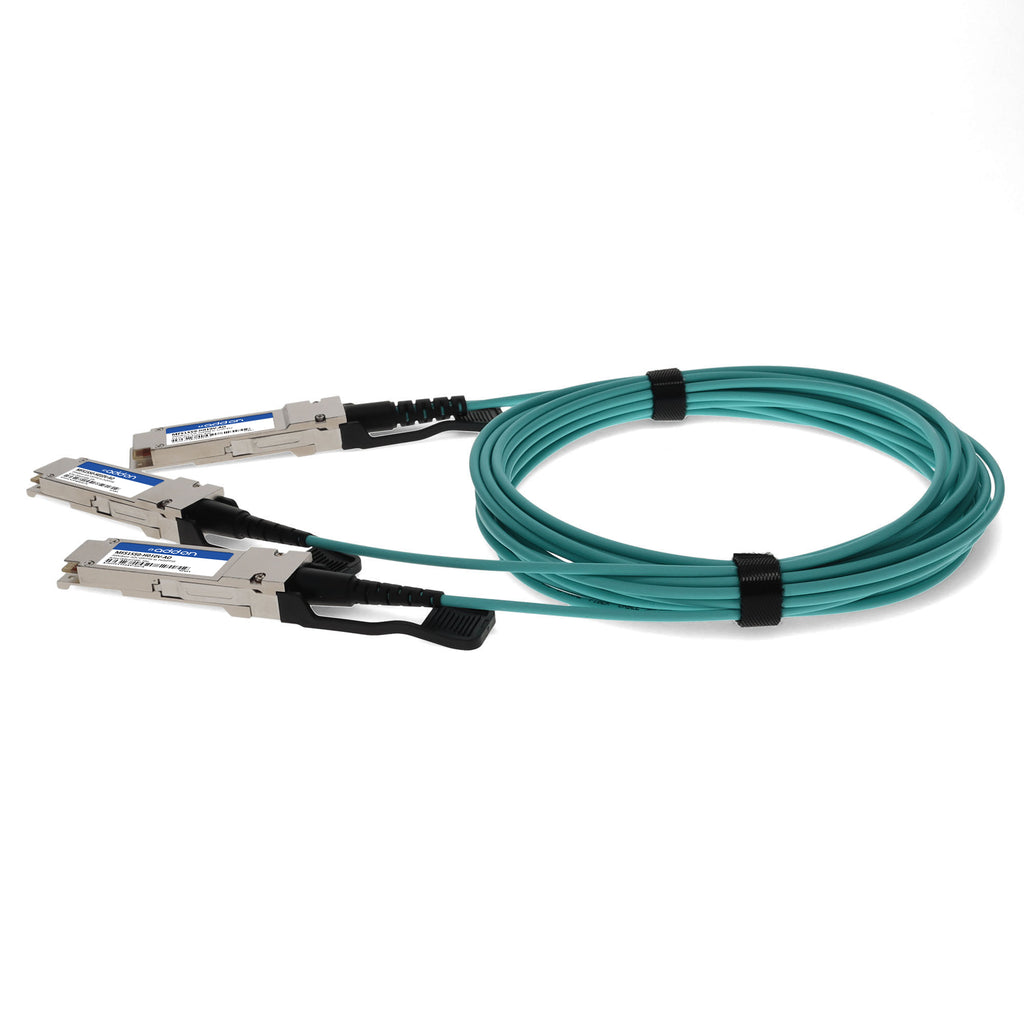

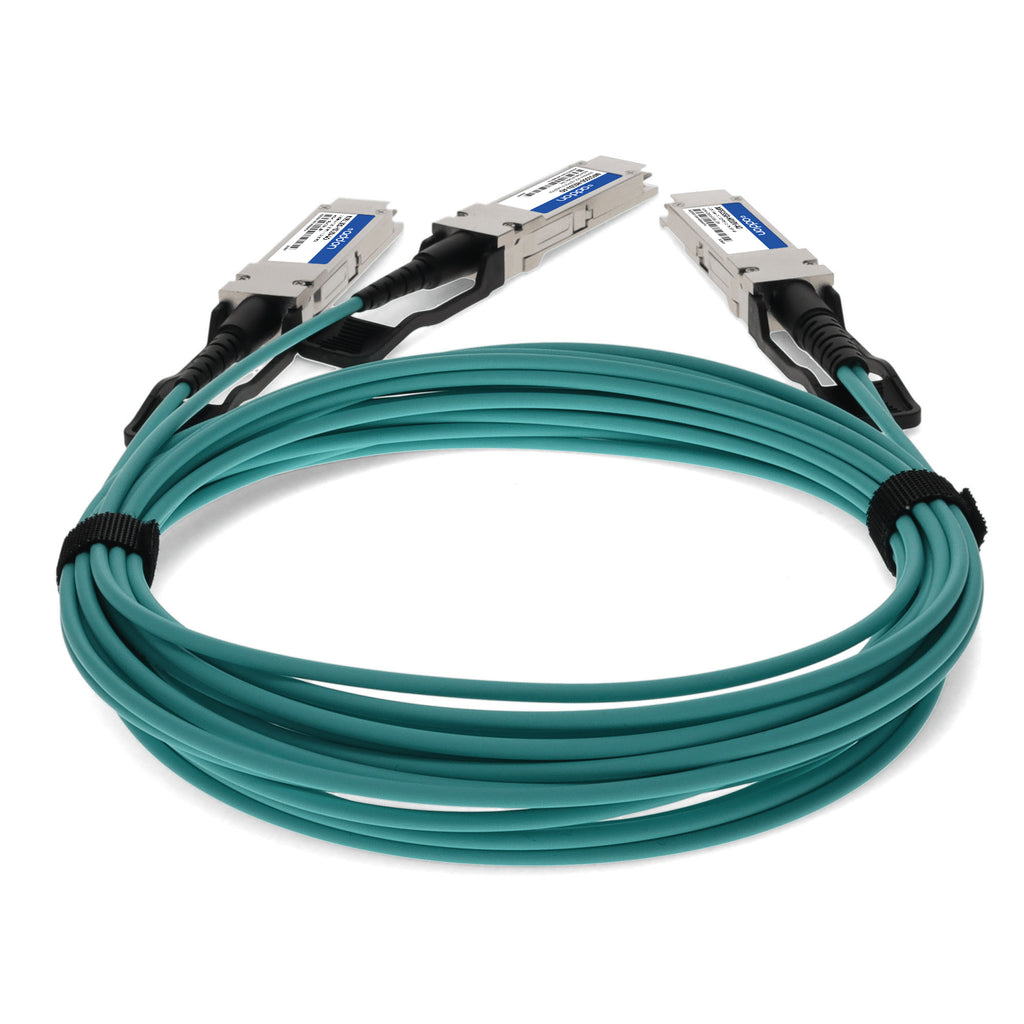

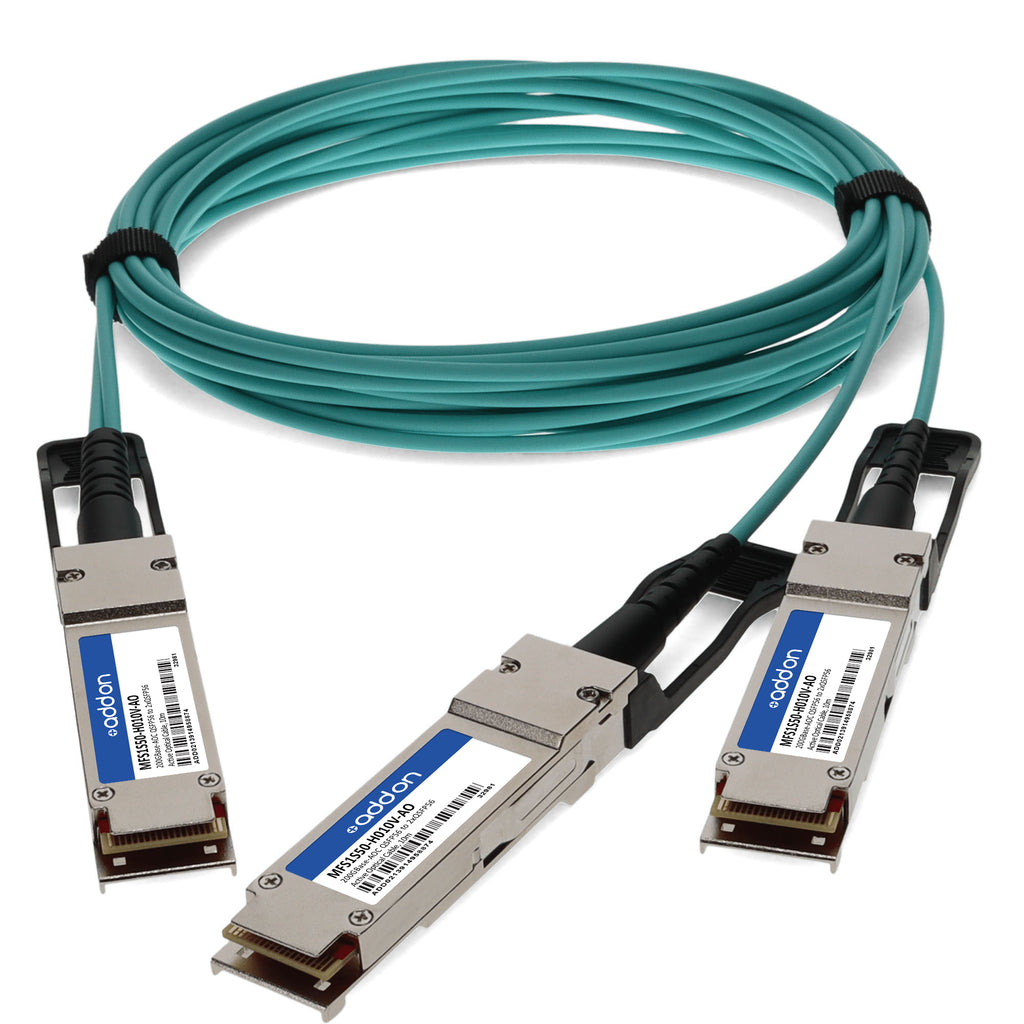

This AddOn Mellanox® MFS1S50-H010V compatible 200G-AOC QSFP56 to 2xQSFP56 Infiniband HDR active optical cable delivers reliable, high-speed connectivity with a maximum reach of 10 meters over multi-mode fiber (MMF) using an 850nm wavelength. Designed for modern high-performance computing and data center environments, this active optical cable supports multi-data rates up to 56.15Gbps per lane using PAM4 modulation and features low-latency, DSP-free CDR technology for superior signal integrity.
The cable features a low-smoke zero halogen (LSZH) aqua jacket for improved safety and compliance, hot-pluggable design for easy deployment, and ultra-low power consumption of just 3.6W on the 200G end. Fully compliant with IBTA InfiniBand HDR and IEEE 802.3cd 200GBASE-SR4 standards, this active optical cable is TAA compliant, RoHS certified, lead-free, and built to meet MSA specifications. Each unit is programmed, uniquely serialized, and rigorously tested for compatibility, performance, and reliability — backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| Compatible OEM | Mellanox® |
| Part Number | MFS1S50-H010V |
| Data Rate (Per Lane) | Up to 56.15Gbps |
| Total Bandwidth | 200G |
| Cable Type | Active Optical Cable (AOC) |
| Form Factor | QSFP56 to 2xQSFP56 |
| Wavelength | 850nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Maximum Reach | 10 meters |
| Modulation | PAM4 |
| Power Consumption (200G End) | 3.6W typical |
| Power Consumption (100G End) | 2.3W typical |
| Operating Temperature | 0°C to 70°C |
| Voltage Supply | 3.15V – 3.47V |
| Cable Jacket | LSZH, Aqua |
| Minimum Bend Radius | 30mm (without tension) |
| Compliance Standards | IBTA InfiniBand HDR, IEEE 802.3cd 200GBASE-SR4, MSA |
| Certifications | RoHS, Lead-Free, TAA Compliant |
| Connector Type | QSFP56 (1x) to QSFP56 (2x) |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
