Description

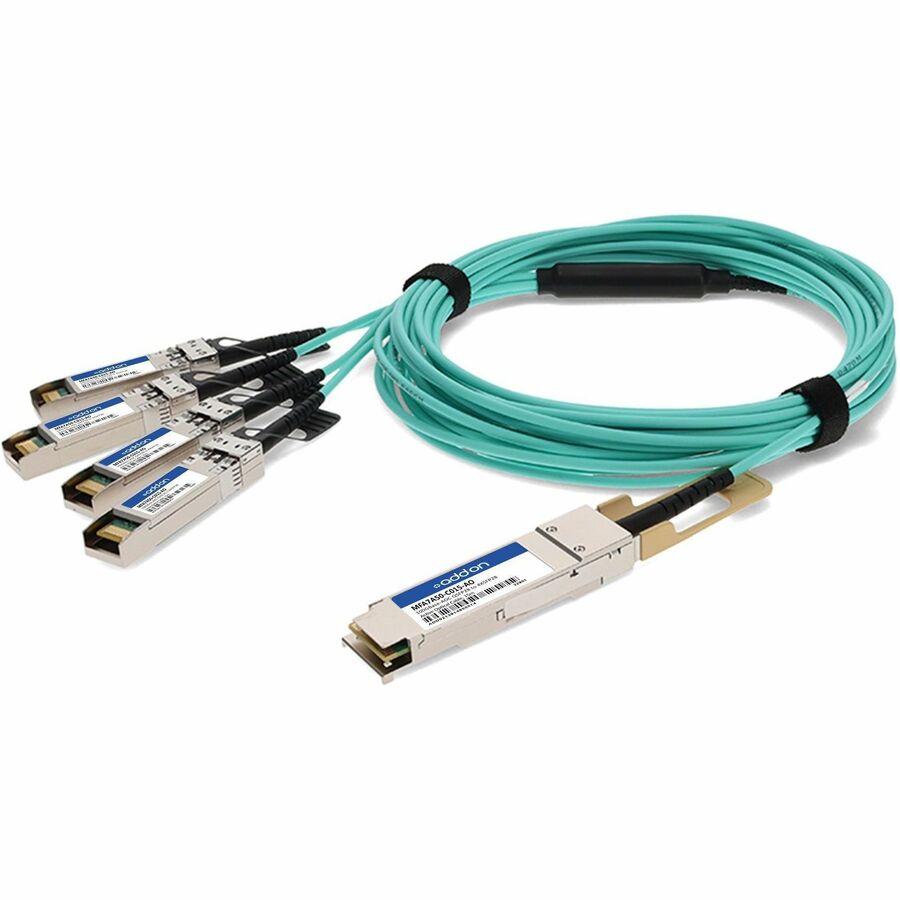

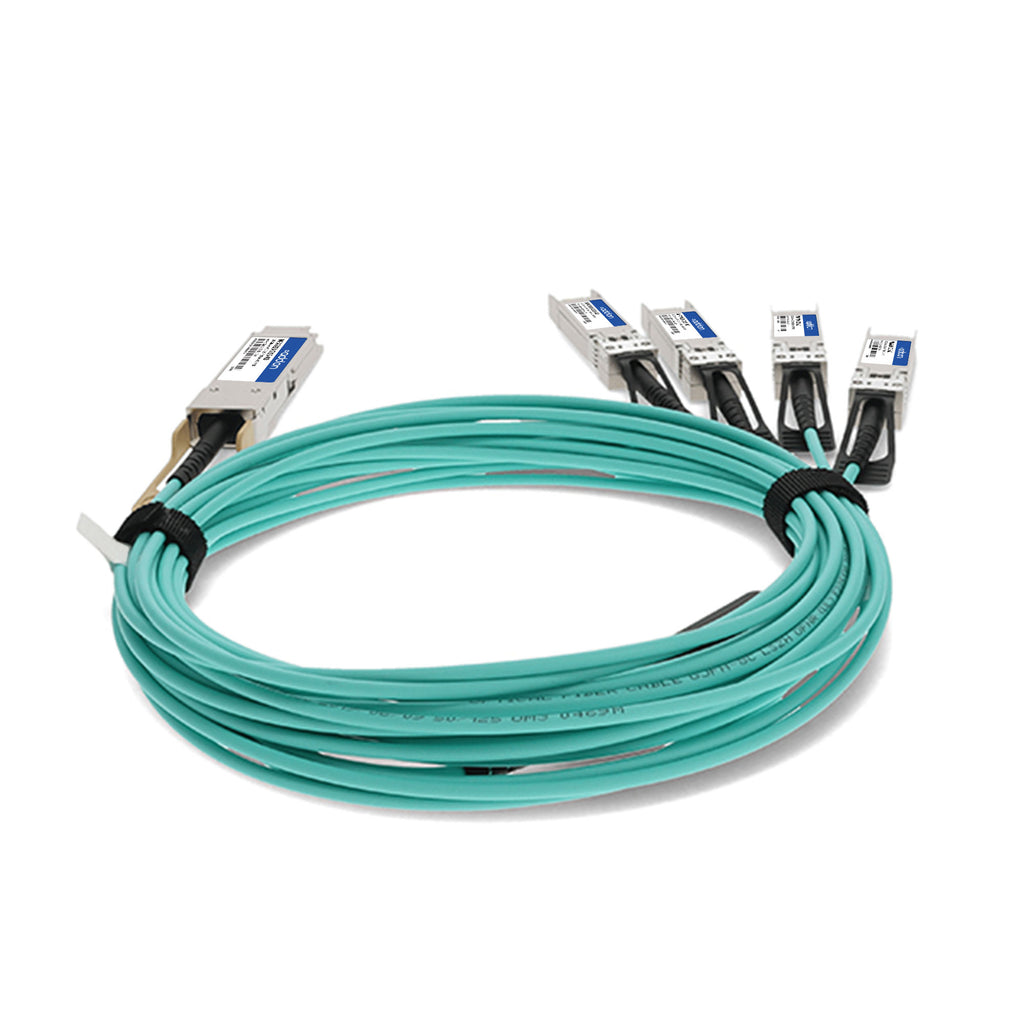

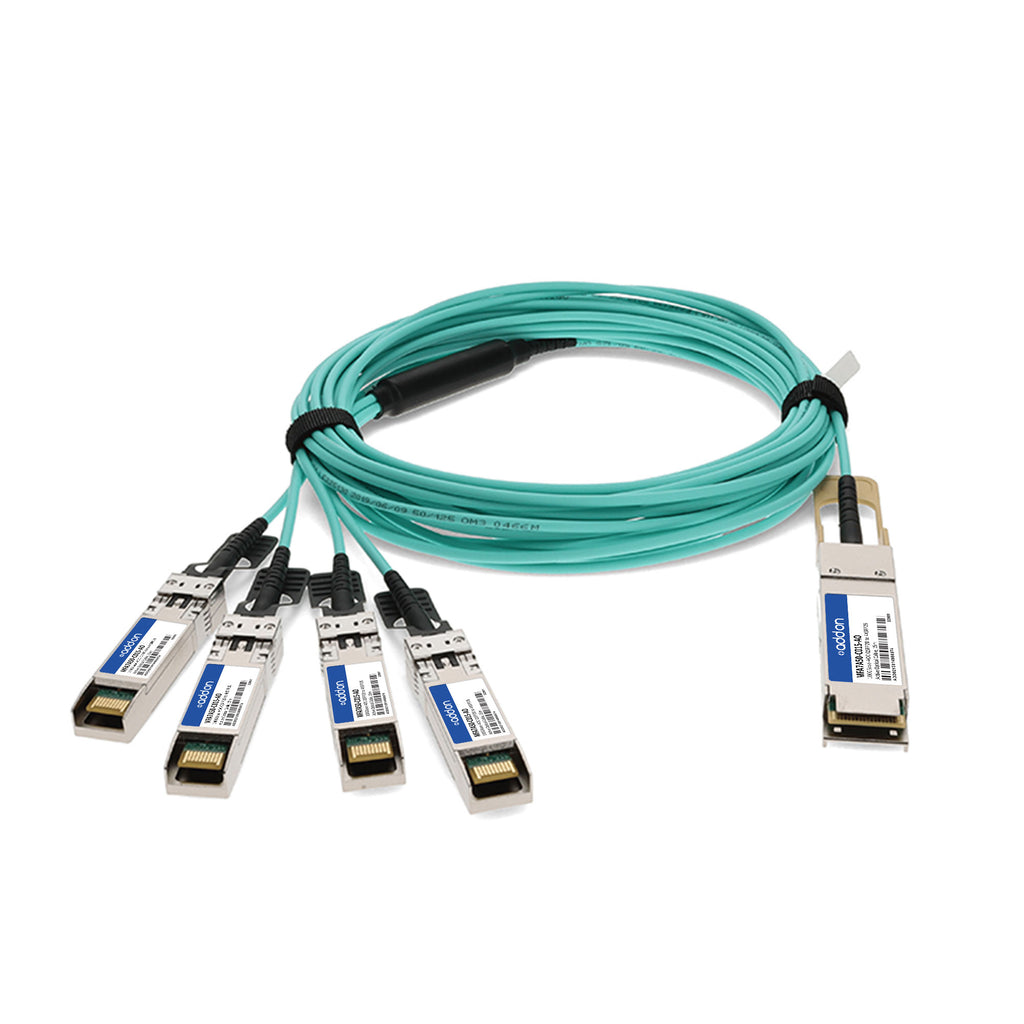

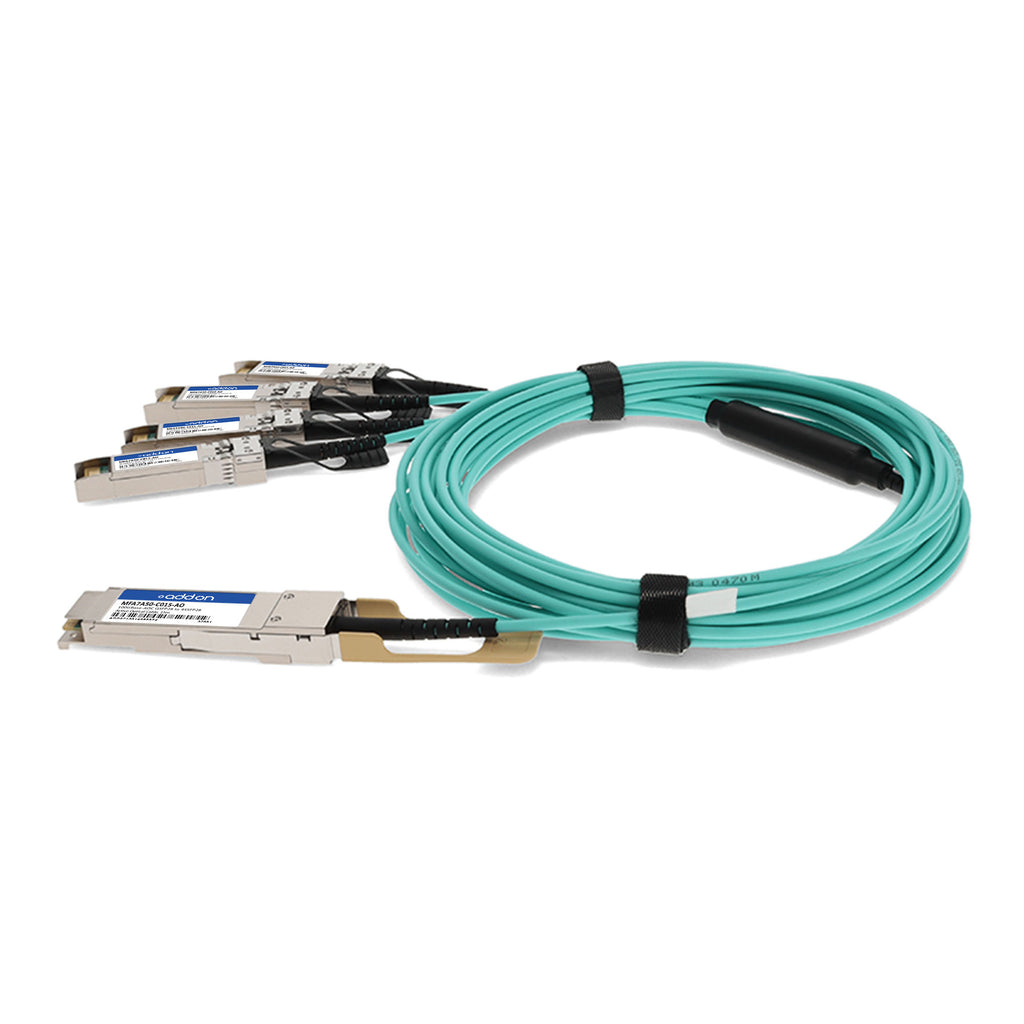

This is a Mellanox® MFA7A50-C015 compatible 100GBase-AOC QSFP28 to 4xSFP28 active optical cable that provides high-performance connectivity with a maximum reach of 15 meters over multi-mode fiber (MMF) at a wavelength of 850nm. Designed for data center, HPC, and enterprise networking environments, this active optical cable delivers an aggregate data rate of 103.1 Gbps across four independent full-duplex channels. Each channel supports a 25G electrical interface (OIF CEI-28G-VSR), ensuring high-speed data transfer and reliable performance.
The cable features low power consumption—2.5W for the QSFP28 terminal and 1.0W per SFP28 terminal—and operates within a temperature range of 0°C to 70°C. Built to comply with MSA (Multi-Source Agreement) standards and TAA (Trade Agreements Act) requirements, it is uniquely serialized, programmed, and thoroughly tested for data traffic and application compatibility. RoHS compliant and lead-free, this cable guarantees seamless integration into existing networks and comes backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| SKU | MFA7A50-C015-AO |
| Compatible OEM | Mellanox® |
| Cable Type | Active Optical Cable (AOC) |
| Form Factor | QSFP28 to 4xSFP28 |
| Data Rate | 103.1 Gbps aggregate |
| Per Channel Data Rate | 25.78125 Gbps |
| Number of Channels | 4 full-duplex channels |
| Wavelength | 850 nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Cable Length | 15 meters |
| Connector Type | QSFP28 to 4x SFP28 |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption (QSFP28 Terminal) | 2.5 W |
| Power Consumption (SFP28 Terminal) | 1.0 W each |
| Power Supply Voltage | 3.3 V |
| Interface Compliance | QSFP28 & SFP28 MSA, OIF CEI-28G-VSR |
| Applications | 100G Ethernet, InfiniBand EDR |
| Compliance | TAA Compliant, RoHS Compliant, Lead-Free |
| Warranty | Limited Lifetime Warranty |
