Description

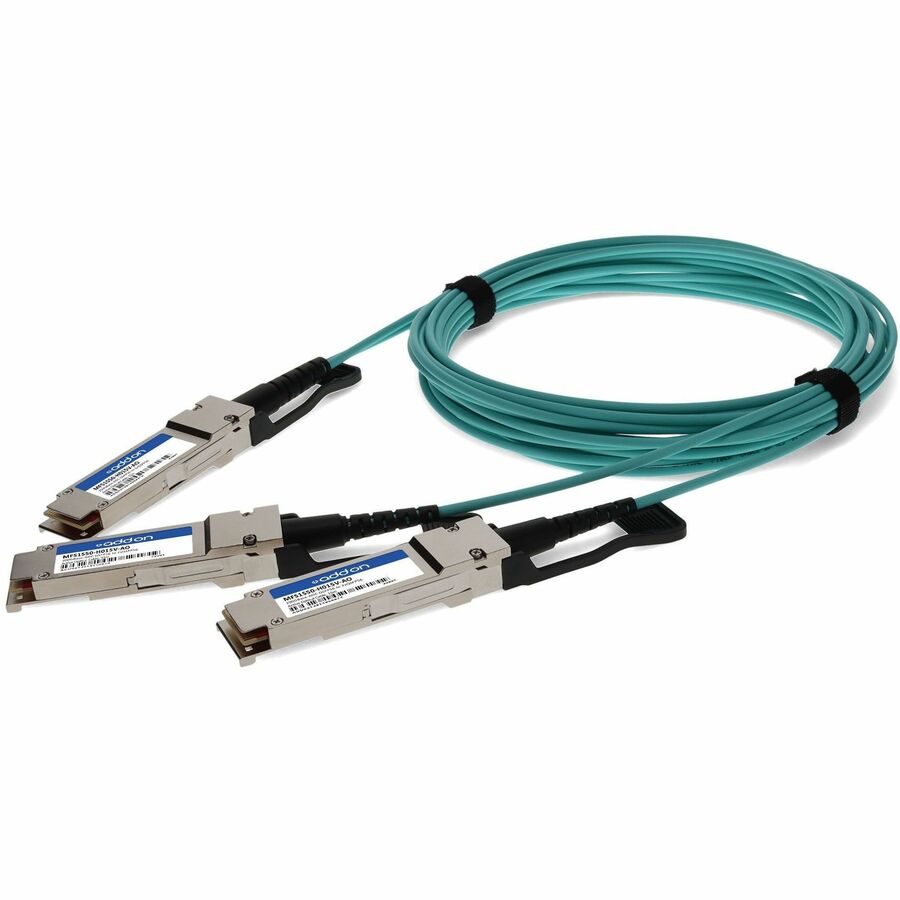

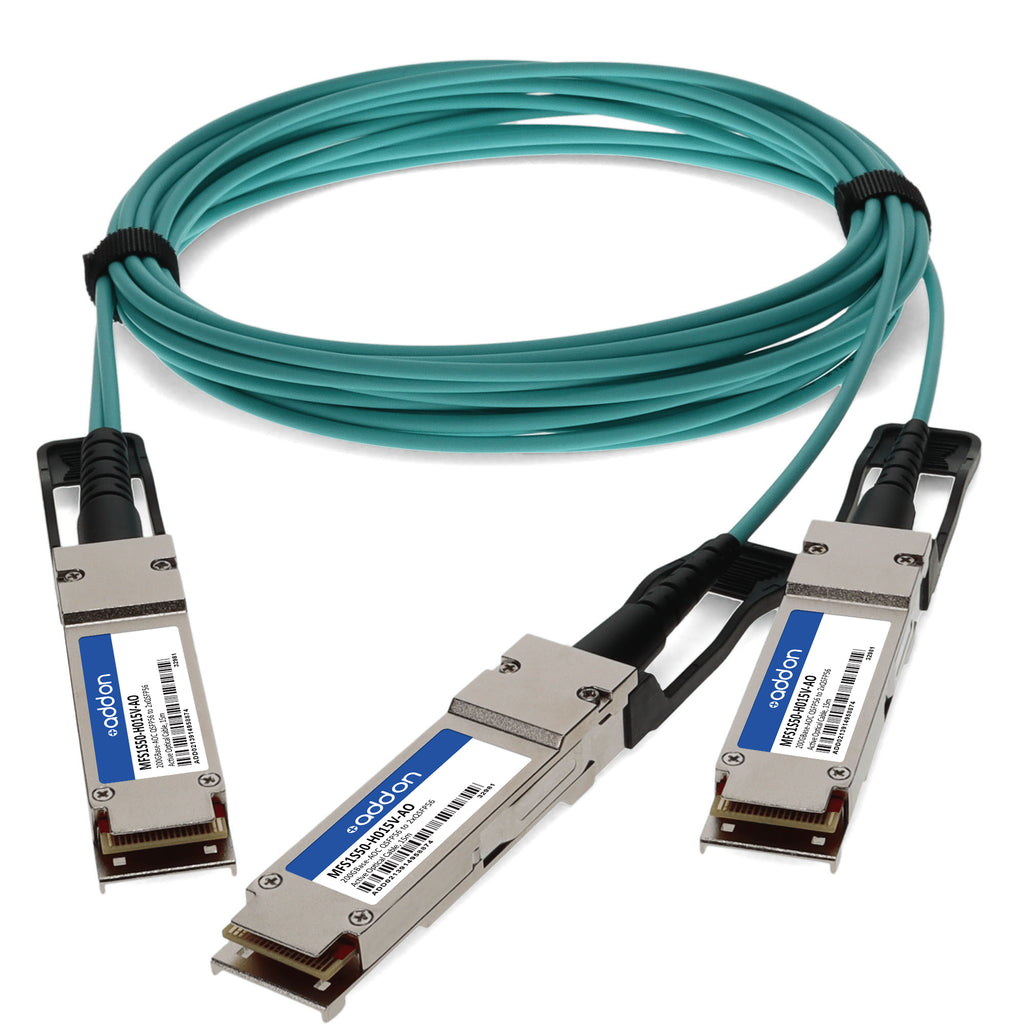

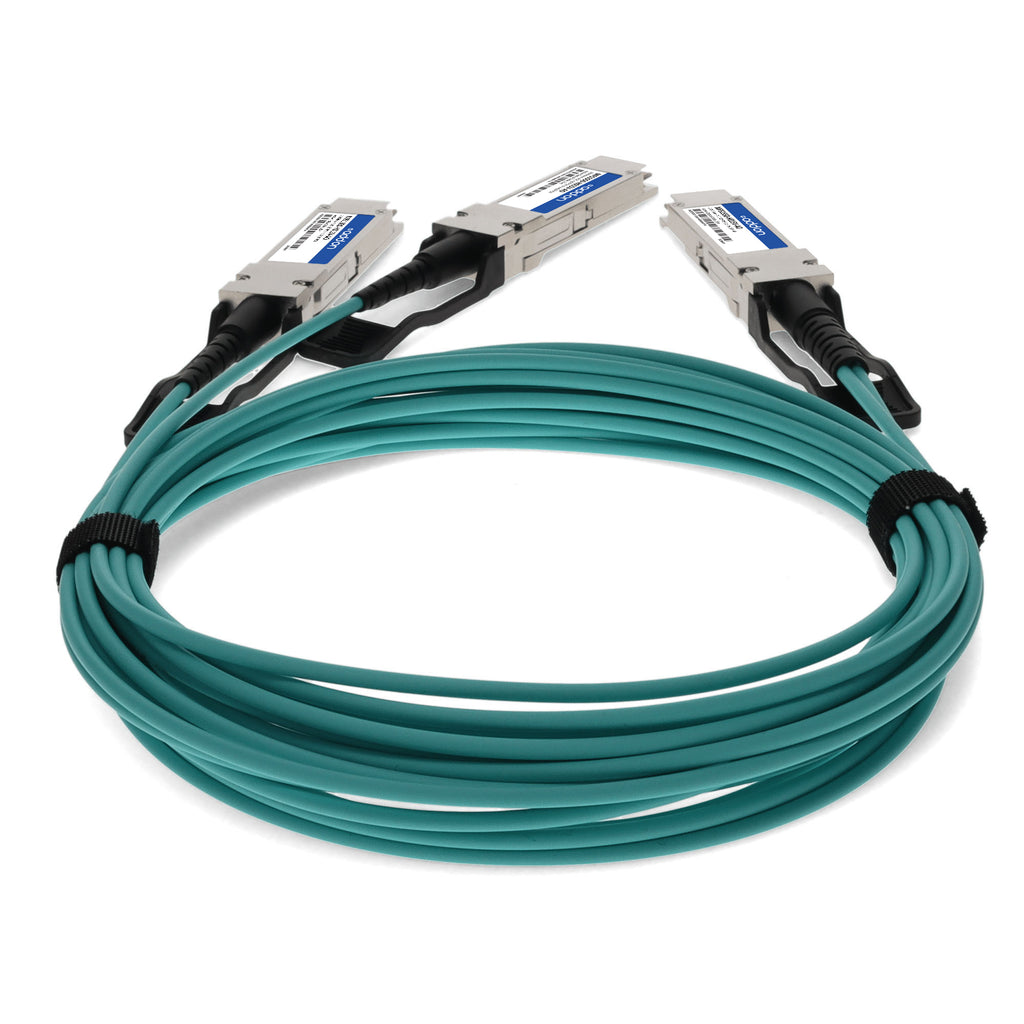

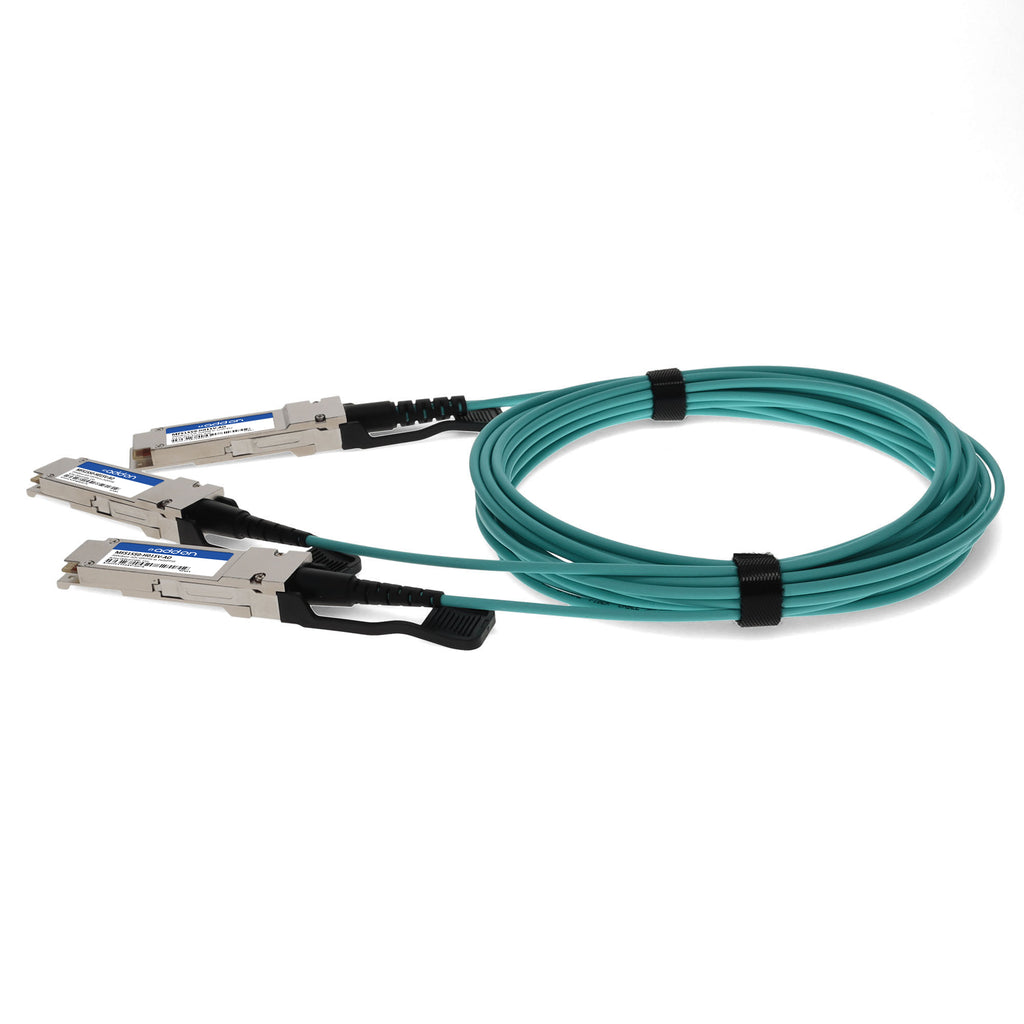

The AddOn Mellanox® MFS1S50-H015V Compatible Active Optical Cable is a high-performance 200G QSFP56 to 2xQSFP56 InfiniBand HDR solution designed for ultra-fast data center interconnects. Engineered with PAM4 modulation and DSP-free electronics-based CDR technology, this active optical cable delivers low-latency, high-bandwidth connectivity with support for multi-data rates up to 56.15Gbps per lane.
With a maximum reach of 15 meters over multimode fiber (MMF), this LSZH (Low Smoke Zero Halogen) aqua cable ensures safe, reliable operation in dense environments. It is fully compliant with IBTA InfiniBand HDR and IEEE 802.3cd 200GBASE-SR4 standards and features hot-pluggable connectors for easy deployment. Each unit is uniquely serialized, application-tested, and backed by AddOn’s lifetime warranty, ensuring seamless interoperability and dependable performance for enterprise and high-performance computing networks.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU / Part Number | MFS1S50-H015V-AO |
| Compatibility | Mellanox® MFS1S50-H015V |
| Cable Type | Active Optical Cable (AOC) |
| Form Factor | QSFP56 to 2xQSFP56 |
| Application | InfiniBand HDR, 200GBASE-SR4 |
| Wavelength | 850nm |
| Data Rate | Up to 56.15Gbps per lane |
| Total Bandwidth | 200Gbps |
| Reach / Length | 15 meters |
| Fiber Type | Multimode Fiber (MMF) |
| Jacket Material | LSZH, Aqua |
| Power Consumption (200G end) | 3.6W (typical), 4.0W (max) |
| Power Consumption (100G end) | 2.3W (typical), 2.5W (max) |
| Operating Case Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.15V – 3.47V |
| Bit Error Rate | ≤ 2.4 × 10⁻⁴ (pre-FEC) |
| Cable Diameter | Ø3.0 ± 0.15 mm |
| Minimum Bend Radius | 30 mm (without tension) |
| Hot-Pluggable | Yes |
| Compliance | RoHS, TAA, MSA |
| Warranty | Limited Lifetime Warranty |
