Description

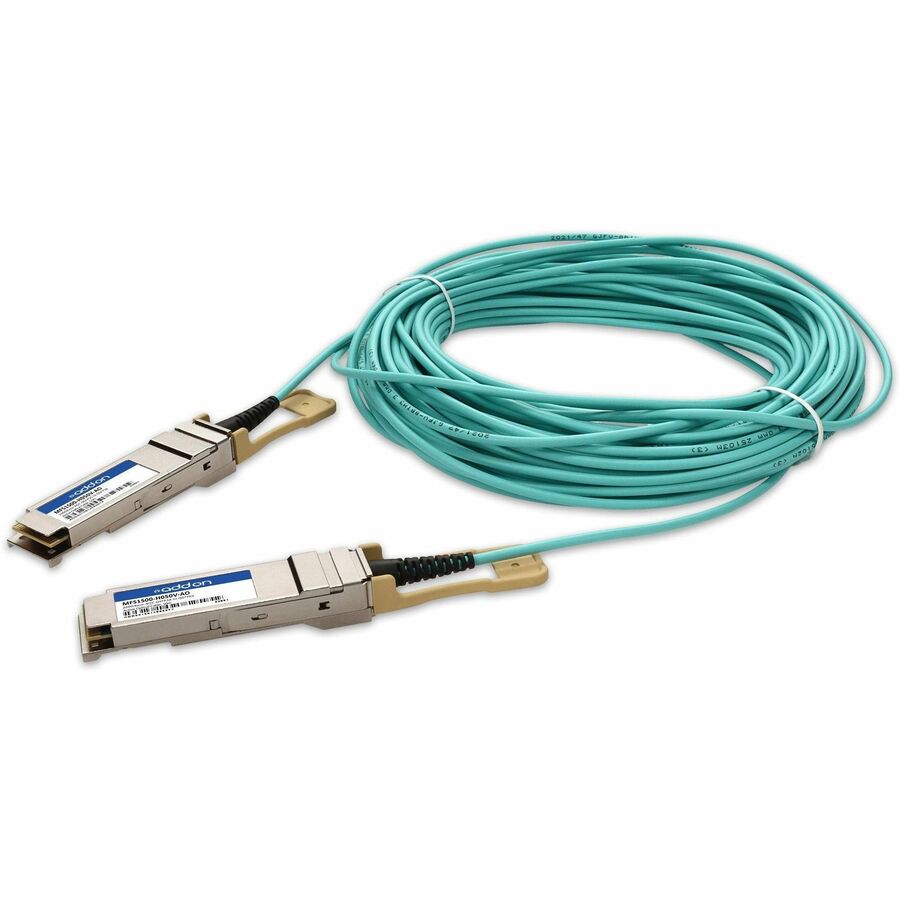

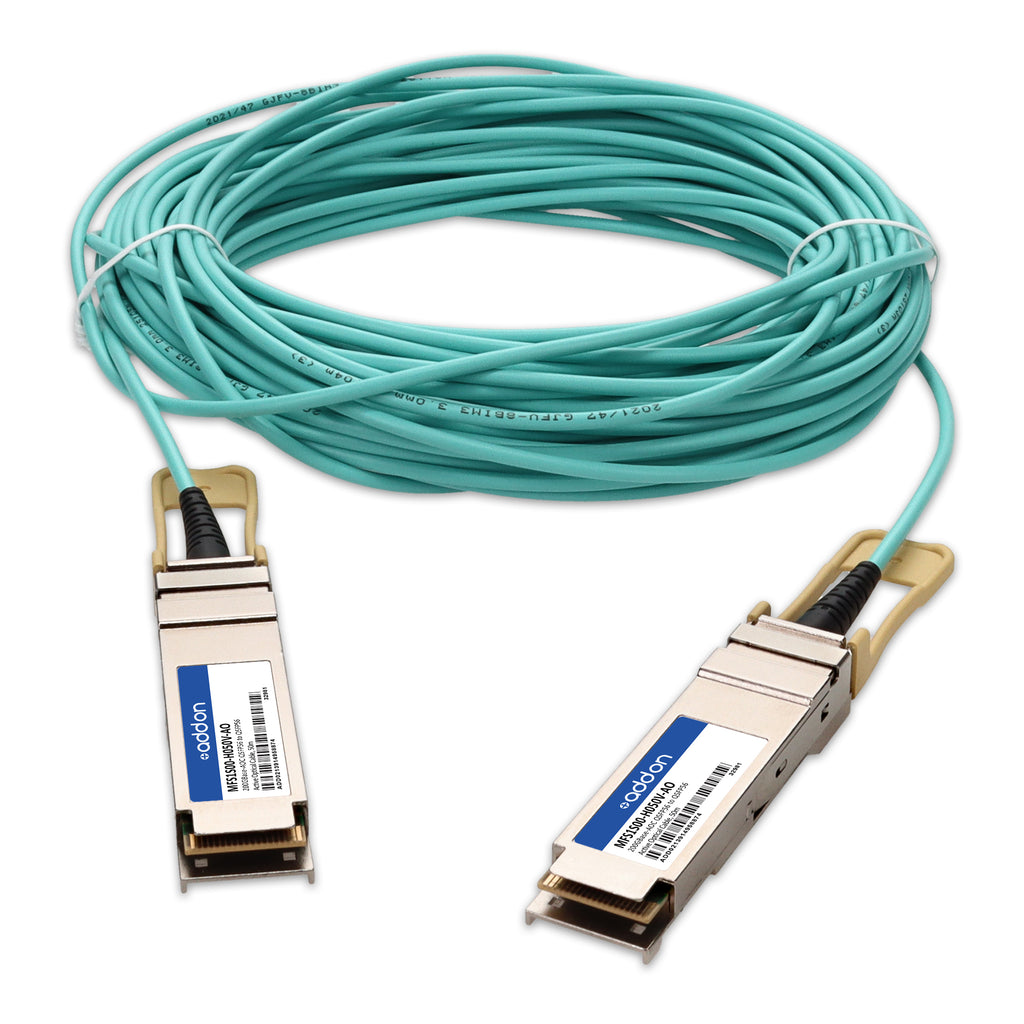

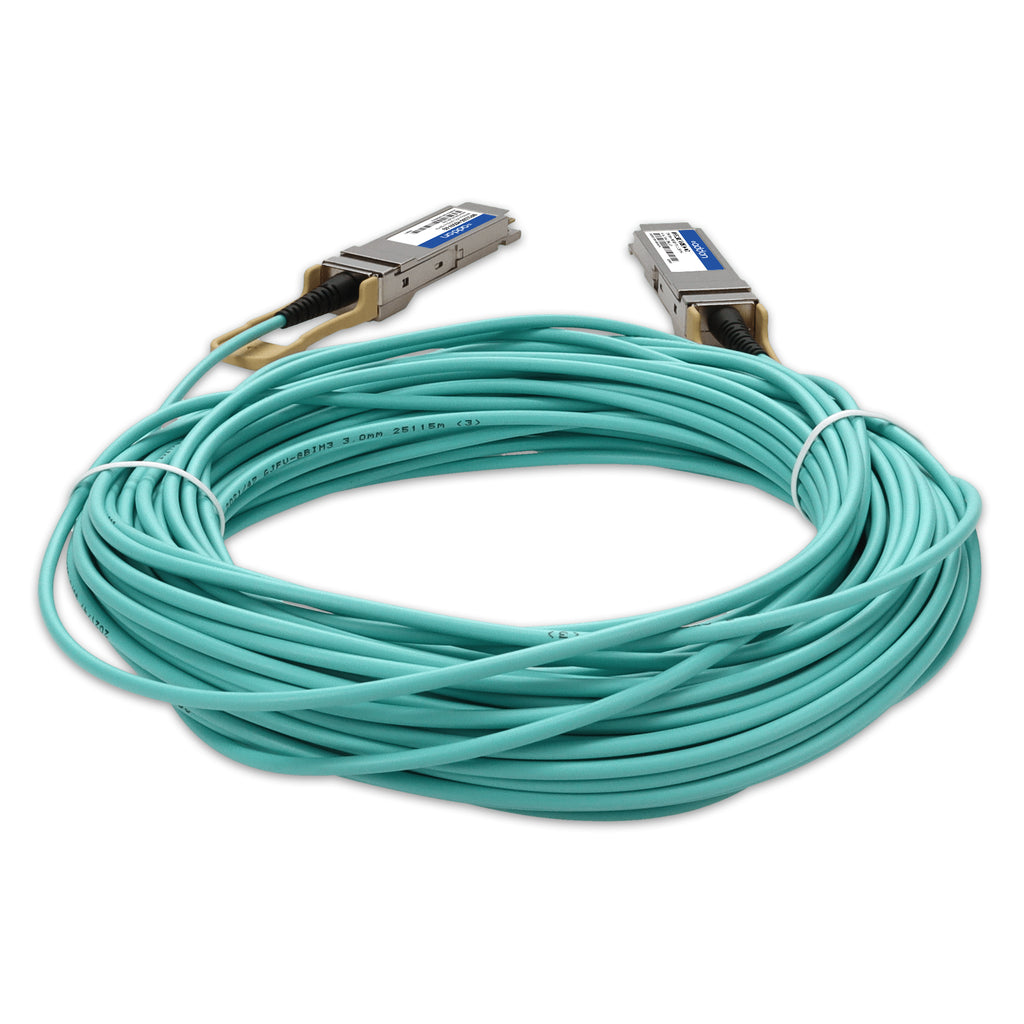

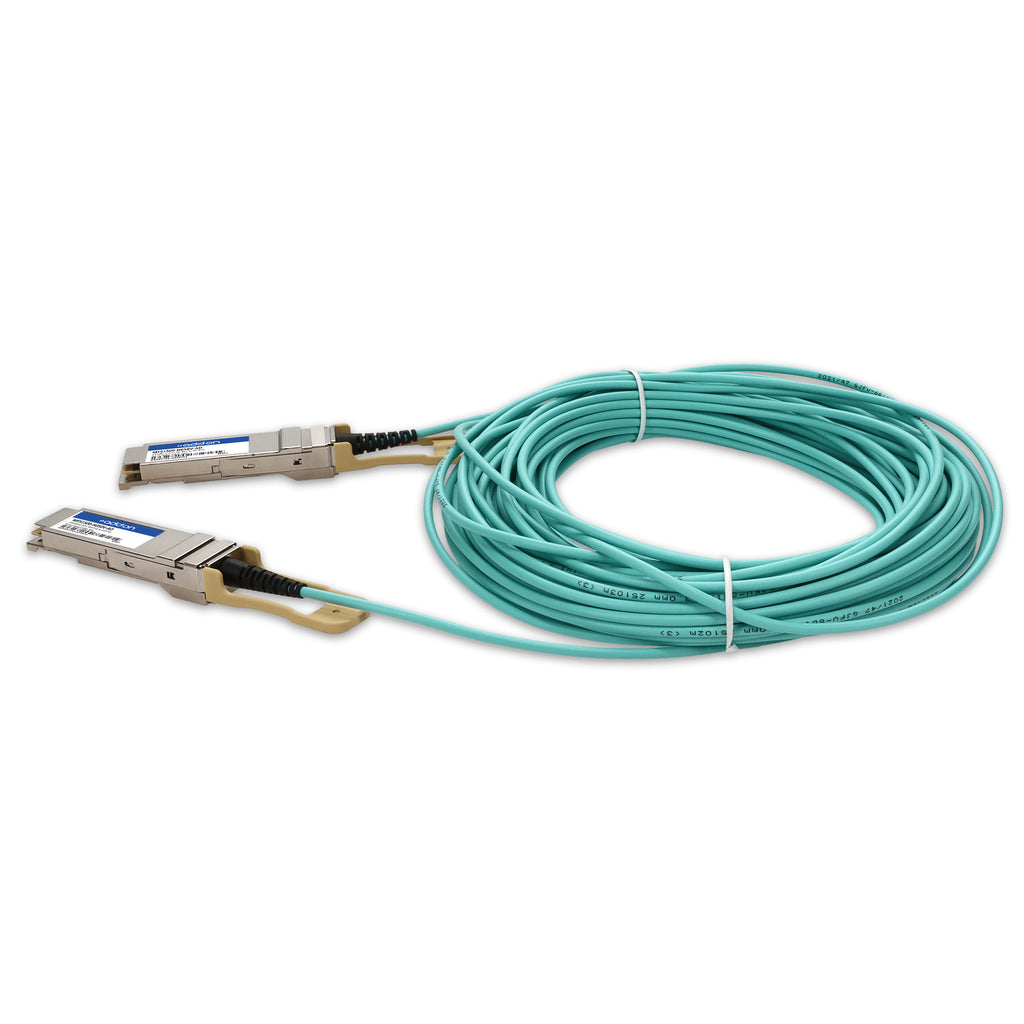

The AddOn Mellanox® MFS1S00-H050V Compatible 200GBase-AOC QSFP56 Active Optical Cable delivers high-speed, low-latency connectivity for data centers, high-performance computing, and enterprise networking environments. Designed for seamless 200G Ethernet transmission, this active optical cable features four independent parallel optical channels, each supporting data rates up to 26.56 GBaud.
Operating over OM3 multi-mode fiber, this cable provides a reach of up to 50 meters at a wavelength of 850 nm, offering reliable, high-bandwidth performance for short-range interconnects. The hot-pluggable design ensures simplified installation and upgrades, while built-in CML-compatible electrical I/O enables smooth integration into existing network infrastructures.
Each unit is programmed, uniquely serialized, and rigorously tested for data traffic and application performance to ensure 100% functionality and compliance. Built to meet MSA standards and TAA requirements, this RoHS-compliant, lead-free cable includes a limited lifetime warranty, making it a dependable and cost-effective alternative to OEM solutions.
| Parameter | Specification |
|---|---|
| SKU | MFS1S00-H050V-AO |
| Compatible OEM | Mellanox® |
| Form Factor | QSFP56 to QSFP56 |
| Data Rate | 200 Gbps |
| Cable Type | Active Optical Cable (AOC) |
| Wavelength | 850 nm |
| Fiber Type | OM3 Multi-Mode |
| Number of Channels | 4 parallel optical channels |
| Per-Channel Signaling Rate | Up to 26.56 GBaud |
| Reach / Length | Up to 50 m |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | –40 °C to 85 °C |
| Supply Voltage | 3.14 V – 3.46 V |
| Typical Supply Current | 1150 mA – 1350 mA |
| Transmitter Differential Input Voltage | 300 mV – 900 mV |
| Receiver Differential Output Voltage | Up to 900 mV |
| Input/Output Impedance | 100 Ω |
| Link BER | ≤ 5 × 10⁻⁵ |
| Minimum Bend Radius | 30 mm |
| Cable Diameter | 3.0 mm ± 0.15 mm |
| Compliance | TAA Compliant, RoHS Compliant, MSA Standard |
| Color | Aqua |
| Warranty | Limited Lifetime Warranty |
