Description

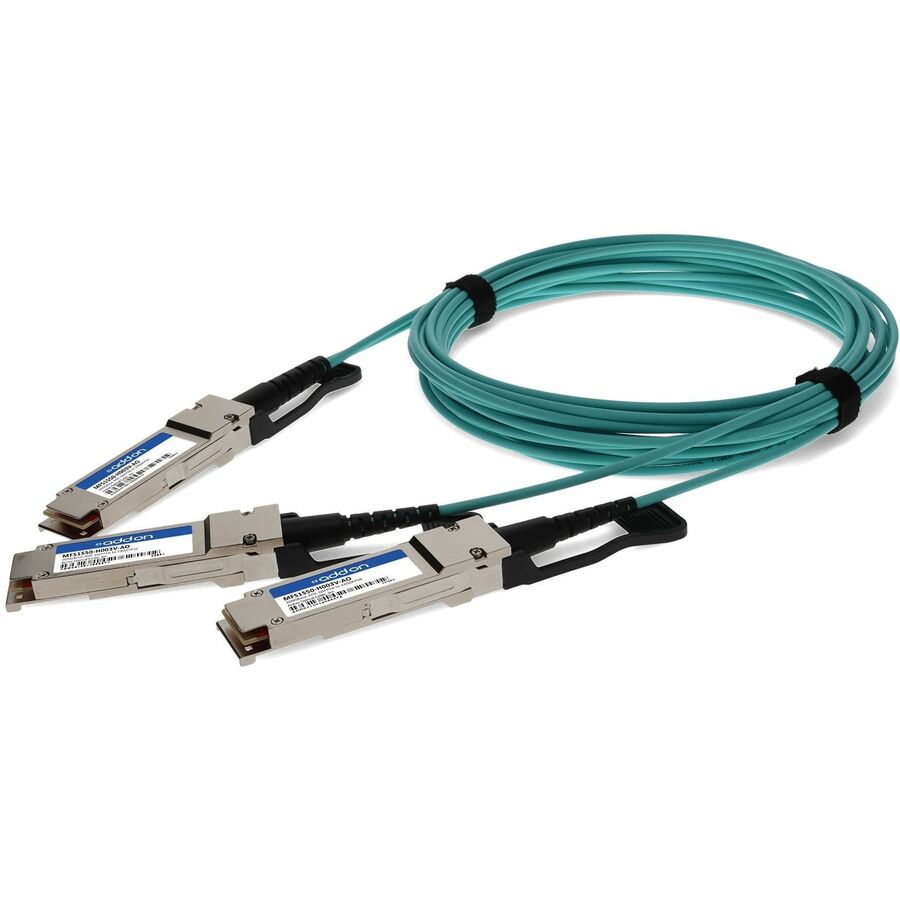

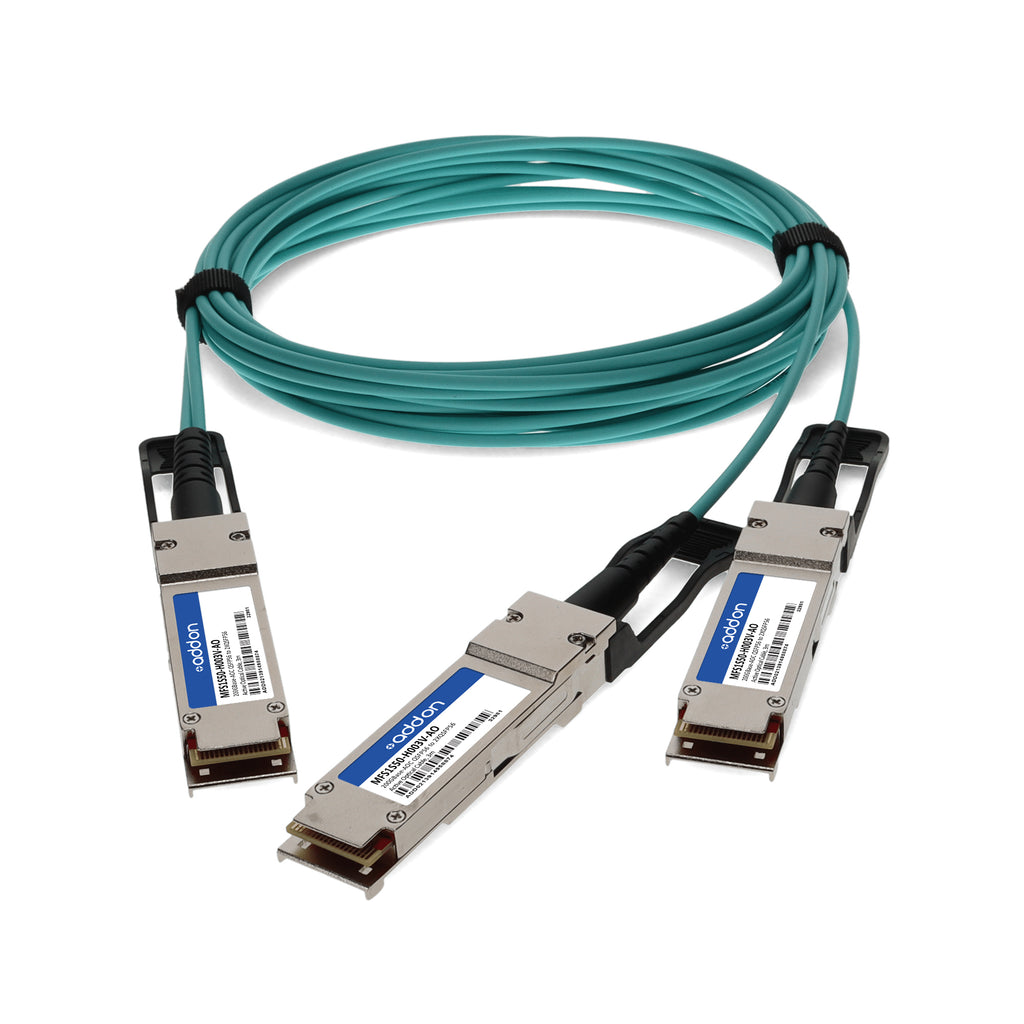

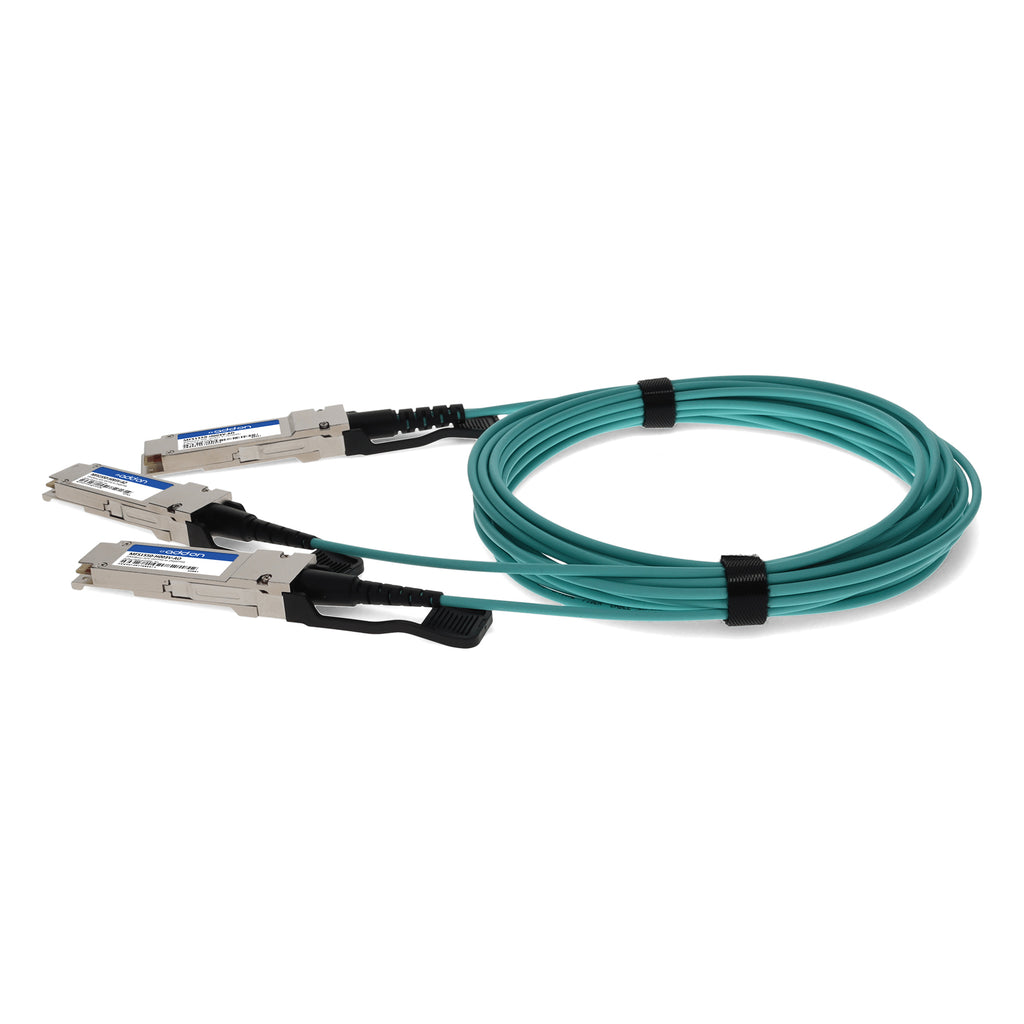

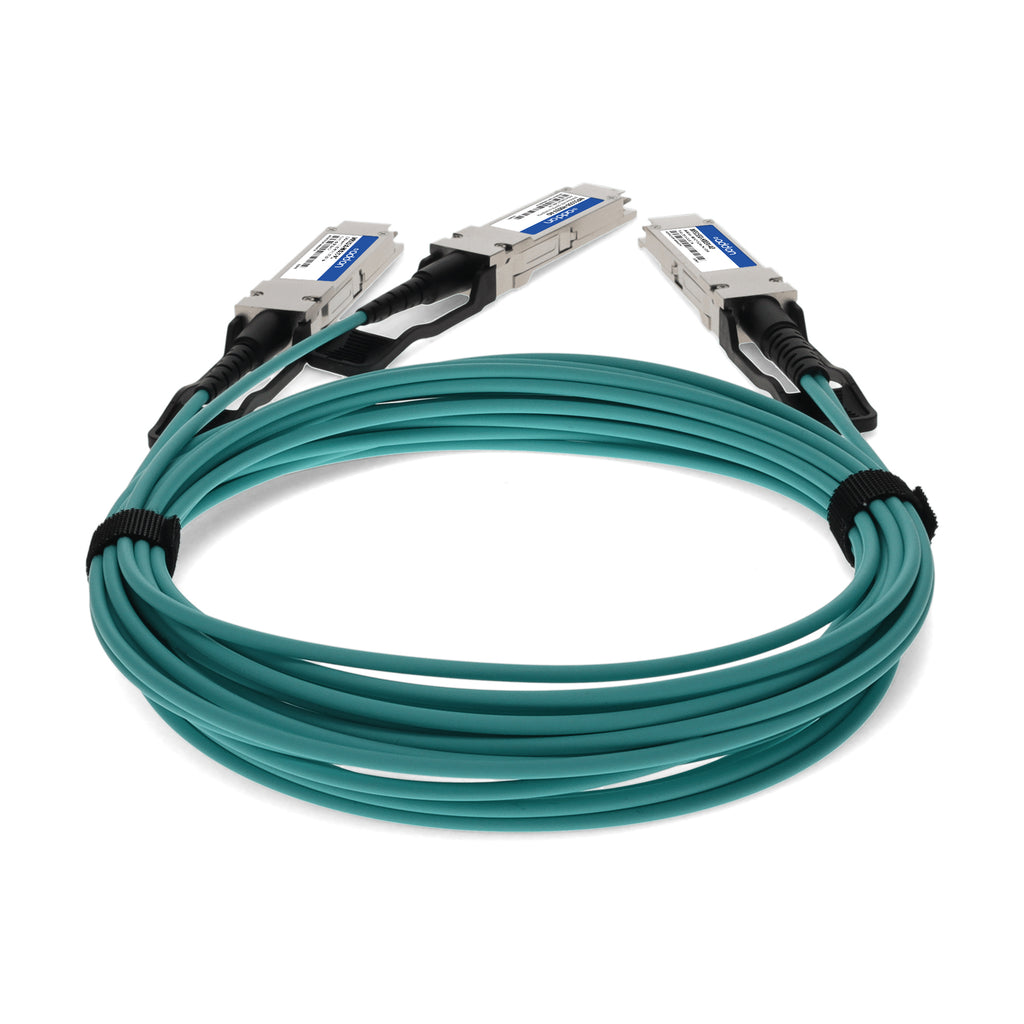

The AddOn Mellanox® MFS1S50-H003V Compatible TAA 200G QSFP56 to 2xQSFP56 Infiniband HDR Active Optical Cable delivers high-performance, low-latency connectivity for data center and high-performance computing applications. Designed for use with InfiniBand HDR and IEEE 802.3cd 200GBASE-SR4 standards, this active optical cable operates over multimode fiber (MMF) with a reach of up to 3 meters.
It supports PAM4 modulation and data rates up to 56.15 Gbps per lane, offering reliable and efficient high-speed interconnects. With low power consumption (3.6W at the 200G end) and hot-pluggable design, this LSZH aqua-jacketed cable ensures safe deployment, easy installation, and superior signal integrity. Fully TAA compliant and built to MSA standards, each cable is programmed, serialized, and tested for 100% interoperability and performance reliability — backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Part Number | MFS1S50-H003V-AO |
| Compatible OEM | Mellanox® |
| Cable Type | 200G QSFP56 to 2xQSFP56 Active Optical Cable |
| Application | Infiniband HDR, IEEE 802.3cd 200GBASE-SR4 |
| Wavelength | 850nm |
| Data Rate | Up to 56.15 Gbps per lane |
| Reach / Length | 3 meters |
| Fiber Type | Multimode Fiber (MMF) |
| Modulation | PAM4 |
| Cable Jacket | LSZH, Aqua |
| Power Consumption (200G End) | 3.6W (All CDRs Enabled) |
| Power Consumption (100G End) | 2.3W (All CDRs Enabled) |
| Operating Case Temperature | 0°C to 70°C |
| Voltage | 3.3V |
| Connector Type | QSFP56 |
| Compliance | TAA Compliant, MSA Compliant, RoHS Compliant |
| Features | Hot Pluggable, Low Latency, DSP-Free CDR, Digital Optical Monitoring |
| Minimum Bend Radius | 30mm (Without Tension) |
| Cable Diameter | 3.0 ± 0.15 mm |
| Warranty | Limited Lifetime Warranty |
