Description

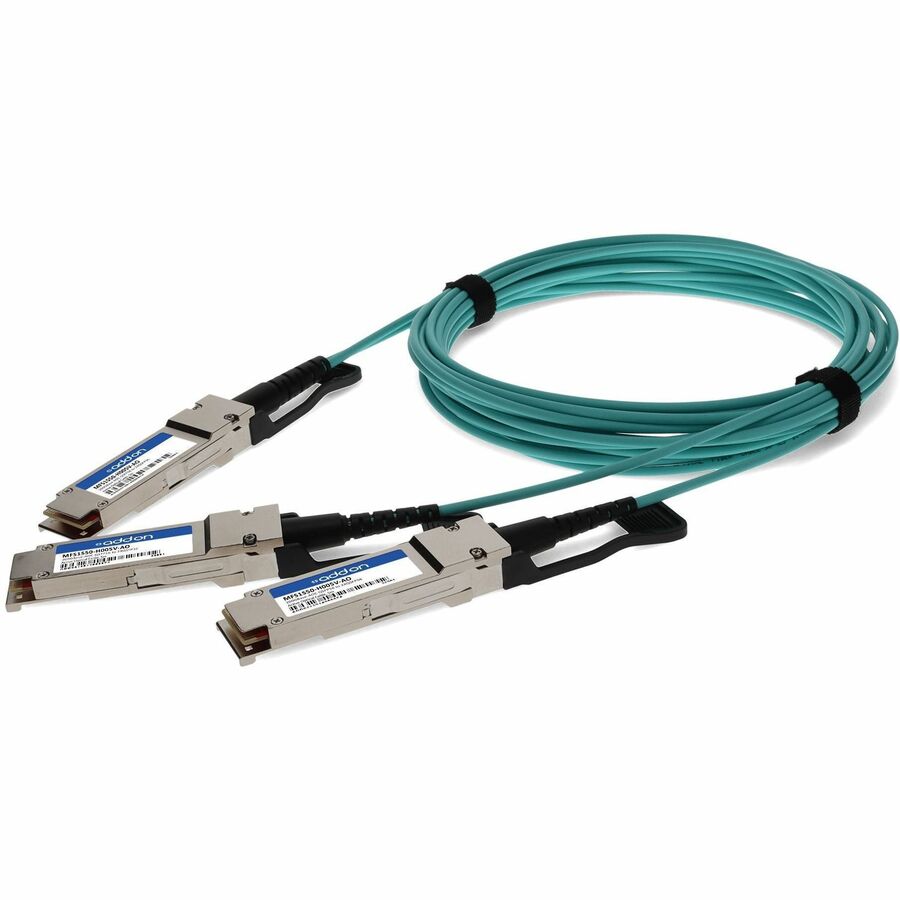

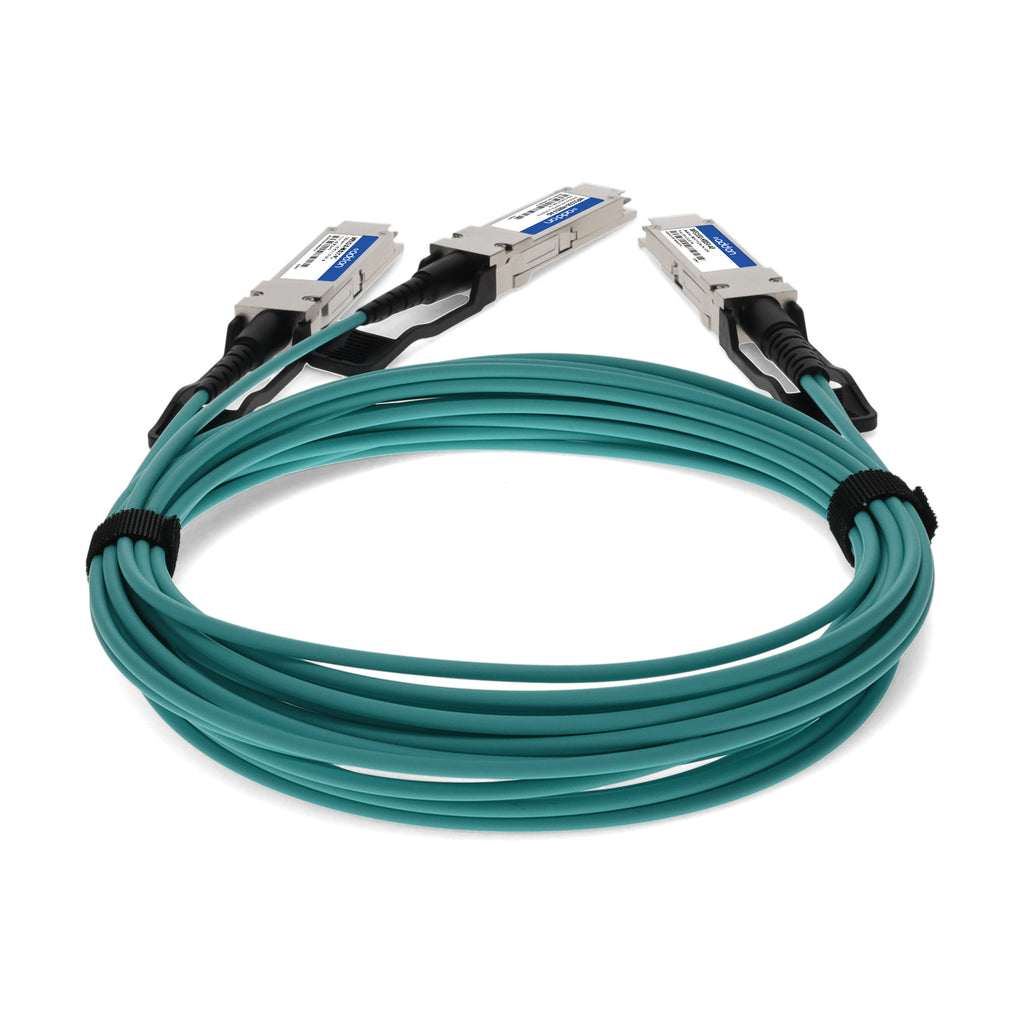

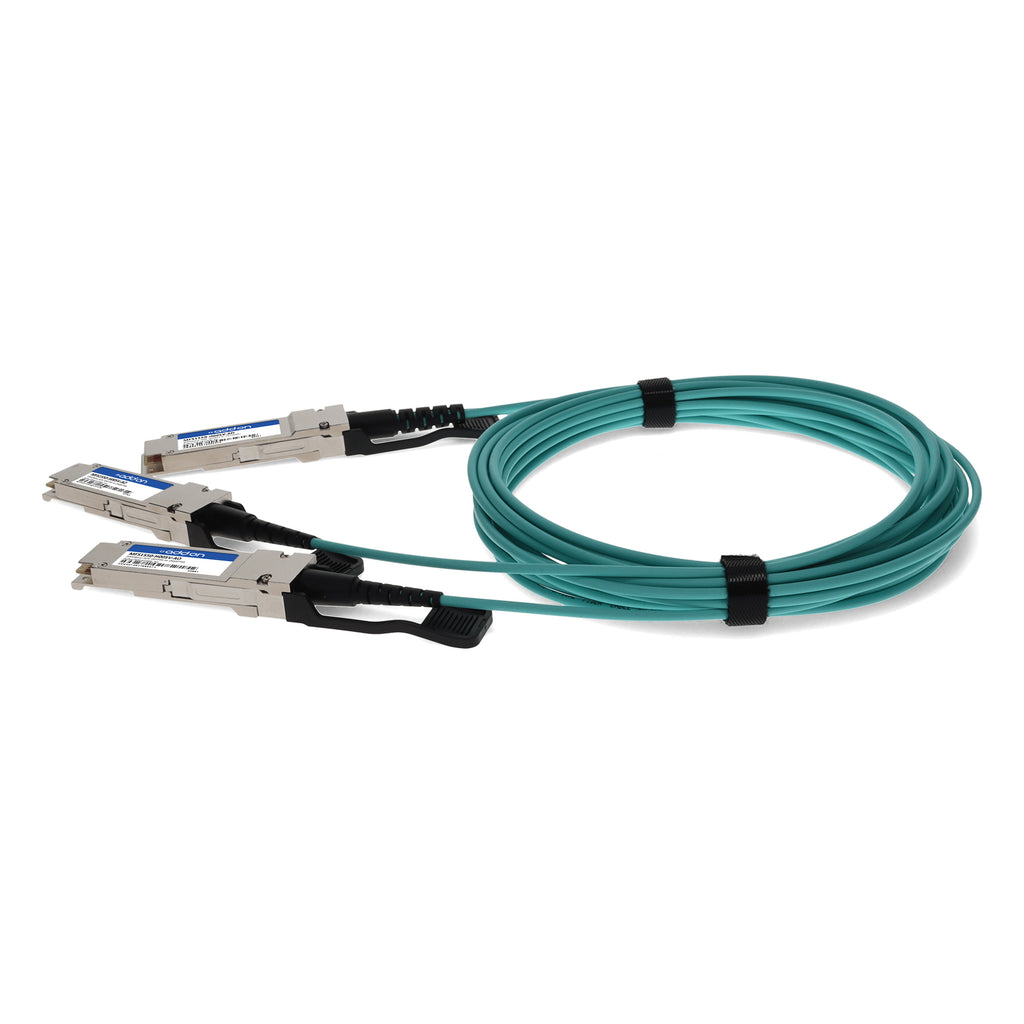

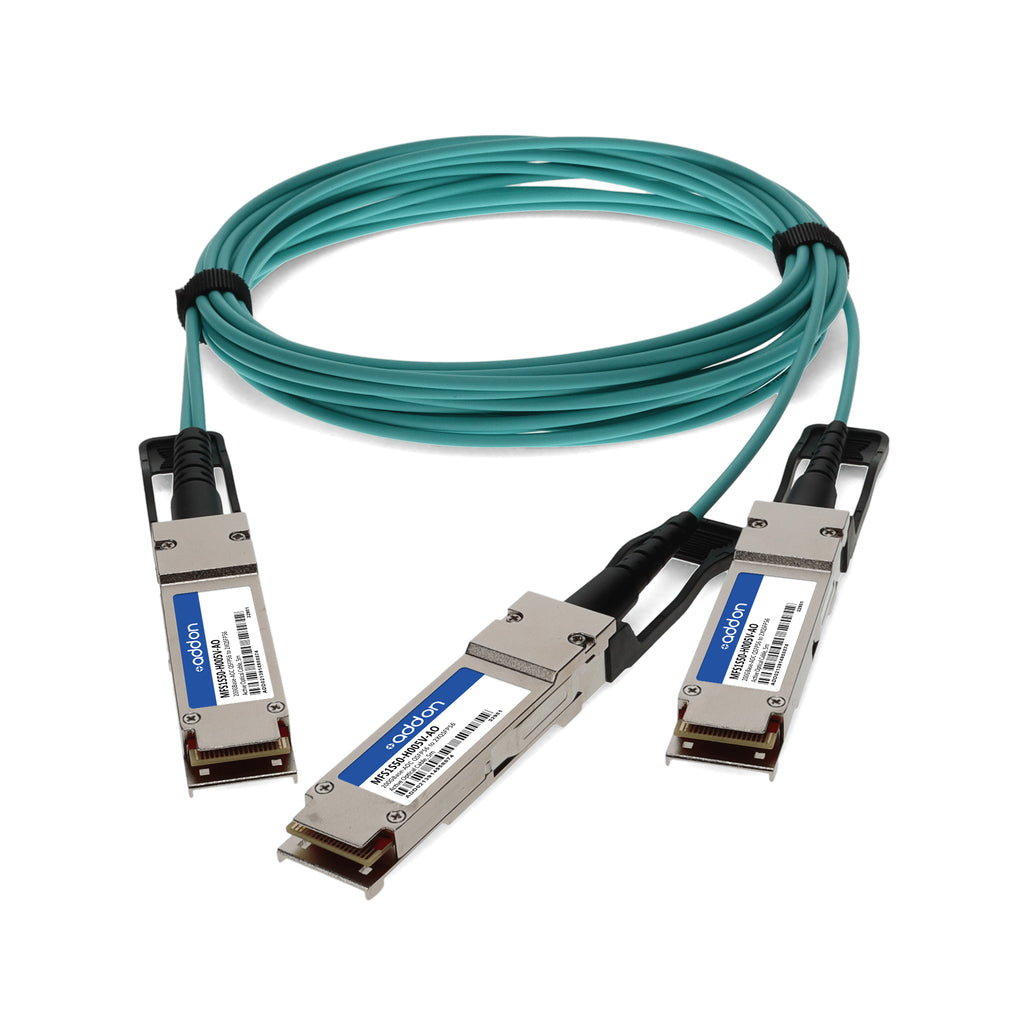

The AddOn Mellanox® MFS1S50-H005V Compatible 200G-AOC Active Optical Cable is designed for high-performance InfiniBand HDR and 200GBASE-SR4 applications. This QSFP56 to 2xQSFP56 active optical cable operates over multi-mode fiber (MMF) with a maximum reach of 5 meters, delivering exceptional signal integrity and low latency without DSP, thanks to its advanced PAM4 modulation and electronics-based CDR technology.
Engineered for reliability and seamless integration, this cable supports data rates up to 56.15Gbps per lane and consumes only 3.6W on the 200G end with all CDRs enabled. It is fully hot-pluggable, compliant with IBTA InfiniBand HDR and IEEE 802.3cd 200GBASE-SR4 standards, and built with an LSZH aqua cable jacket for enhanced safety and environmental compliance.
Each unit is programmed, uniquely serialized, and thoroughly tested for traffic and application performance to ensure 100% compatibility and functionality. Backed by AddOn’s limited lifetime warranty, this TAA-compliant solution guarantees high reliability and performance for demanding data center and HPC environments.
| Specification | Details |
|---|---|
| SKU | MFS1S50-H005V-AO |
| Compatible OEM | Mellanox® |
| Cable Type | Active Optical Cable (AOC) |
| Form Factor | QSFP56 to 2xQSFP56 |
| Standards Compliance | IBTA InfiniBand HDR, IEEE 802.3cd 200GBASE-SR4 |
| Data Rate (Per Lane) | Up to 56.15 Gbps |
| Aggregate Data Rate | 200 Gbps |
| Reach | 5m |
| Wavelength | 850nm |
| Cable Jacket | LSZH, Aqua |
| Cable Diameter | Ø3.0 ± 0.15 mm |
| Minimum Bend Radius | 30 mm (without tension) |
| Power Consumption (200G End) | 3.6W (typical), 4.0W (max) |
| Power Consumption (100G End) | 2.3W (typical), 2.5W (max) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Supply Voltage | 3.15V – 3.47V |
| Bit Error Rate (Pre-FEC) | ≤ 2.4 × 10⁻⁴ |
| Input Differential Impedance | 100 Ω |
| Output Differential Impedance | 100 Ω |
| Connector Type | QSFP56 |
| Hot Pluggable | Yes |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
