Description

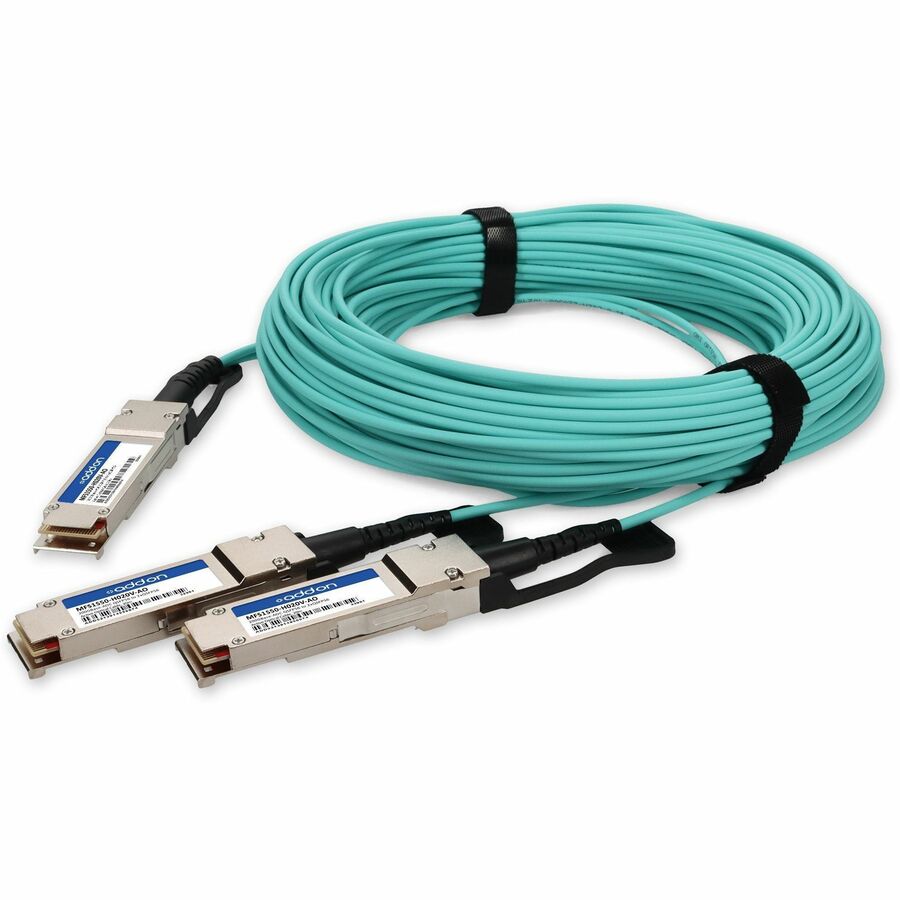

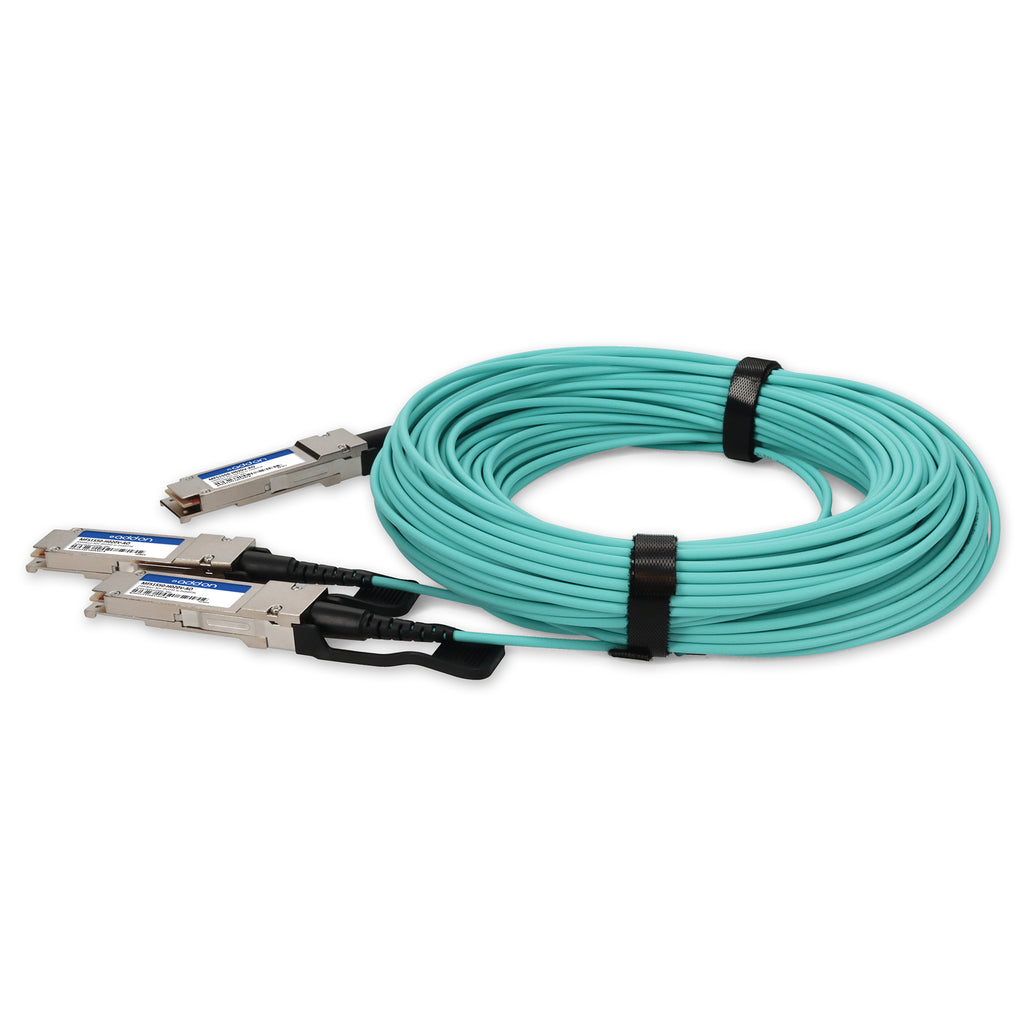

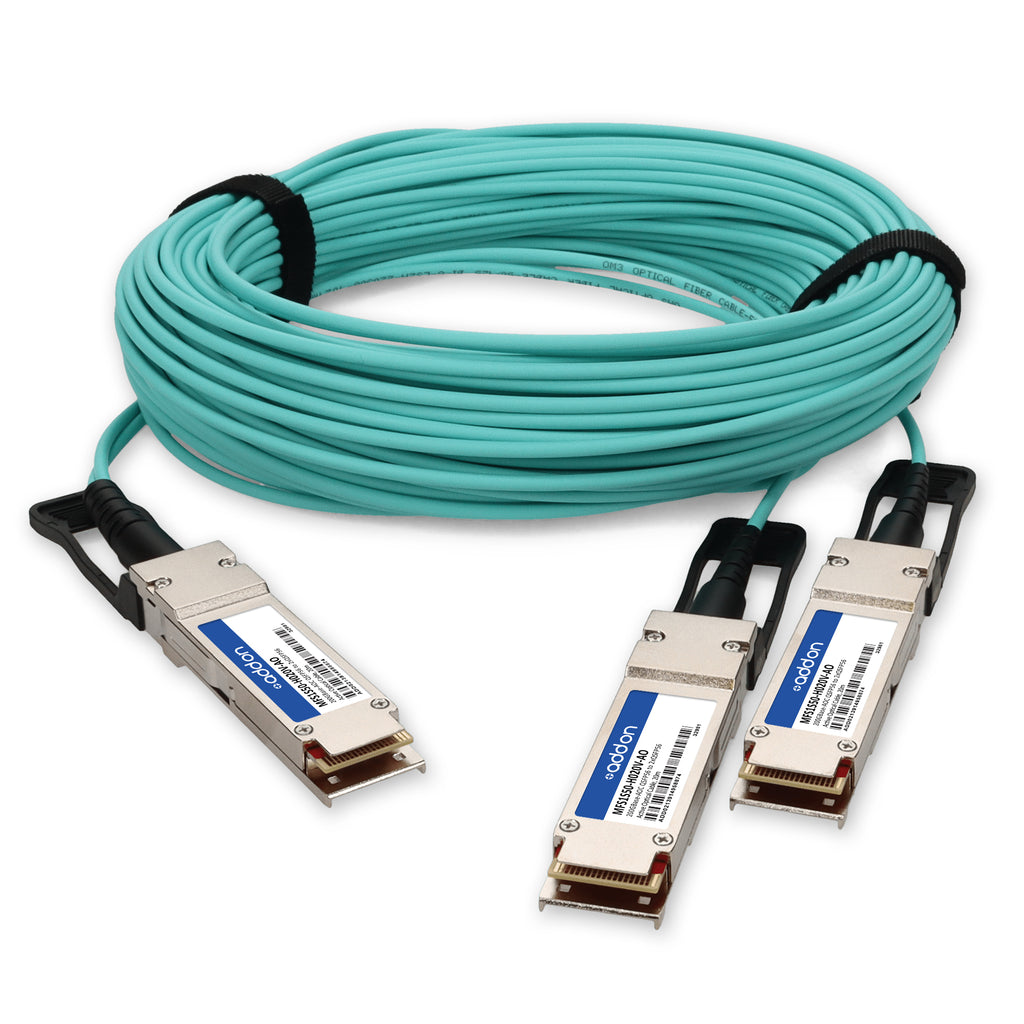

The AddOn Mellanox® MFS1S50-H020V Compatible 200G QSFP56 to 2xQSFP56 InfiniBand HDR Active Optical Cable delivers high-speed, low-latency connectivity for data center and high-performance computing environments. Operating over multimode fiber (MMF) with a maximum reach of 20 meters, this LSZH aqua-jacketed cable provides 200GBase-AOC throughput using PAM4 modulation and supports multi-data rates up to 56.15Gbps per lane.
Designed for InfiniBand HDR and IEEE 802.3cd 200GBASE-SR4 applications, this cable ensures reliable, high-bandwidth data transmission with low power consumption (3.6W at 200G end) and hot-pluggable installation. Each unit is programmed, uniquely serialized, and fully application-tested for 100% compliance and performance, and includes Digital Clock Data Recovery (CDR) on all channels.
This TAA-compliant, RoHS-certified solution meets MSA (Multi-Source Agreement) standards, making it ideal for scalable networking environments demanding reliable, cost-effective, and high-performance interconnects.
| Specification | Details |
|---|---|
| SKU | MFS1S50-H020V-AO |
| Brand | AddOn |
| Compatibility | Mellanox® MFS1S50-H020V |
| Cable Type | Active Optical Cable (AOC) |
| Form Factor | QSFP56 to 2xQSFP56 |
| Data Rate | Up to 200Gbps (56.15Gbps per lane) |
| Modulation | PAM4 |
| Wavelength | 850nm |
| Reach | Up to 20m |

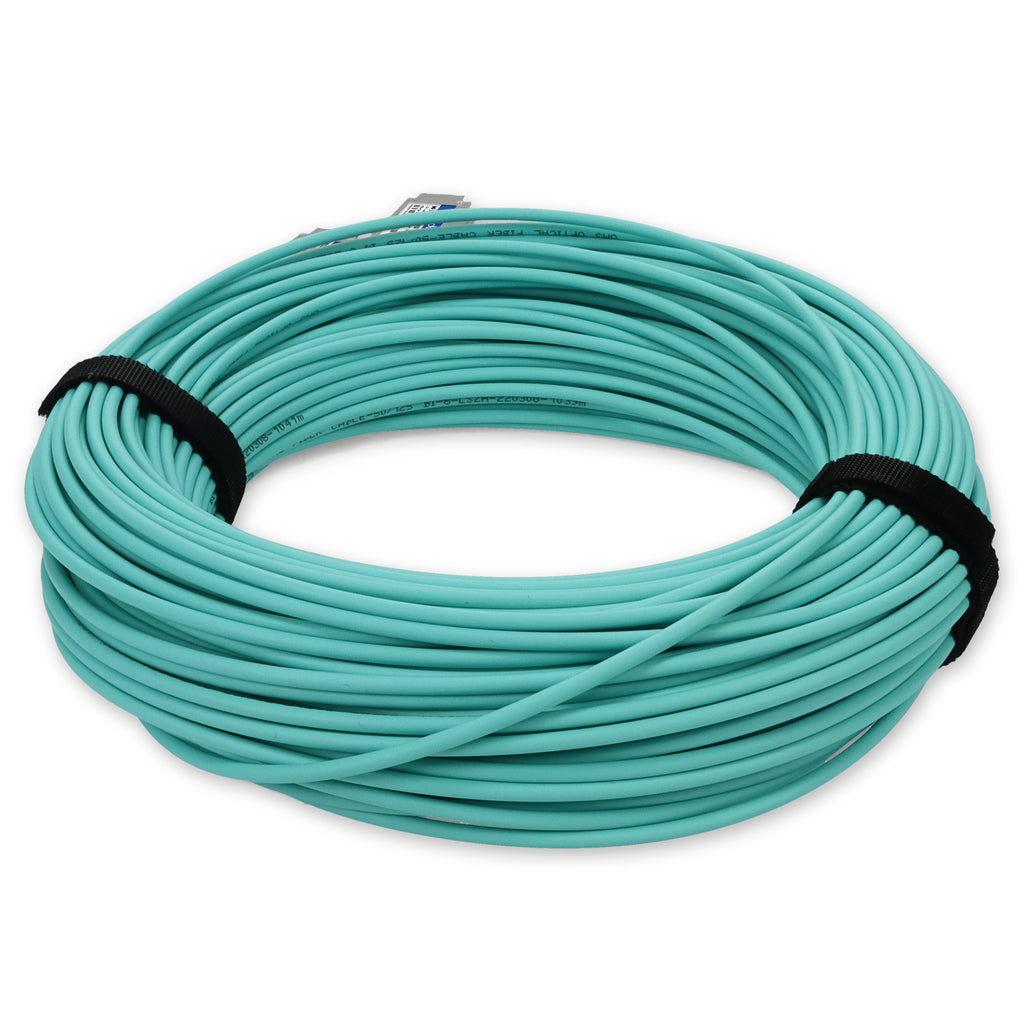

| Cable Jacket | LSZH, Aqua |
| Minimum Bend Radius | 30mm (without tension) |
| Cable Diameter | Ø3.0 ± 0.15 mm |
| Power Consumption (200G End) | 3.6W (typical), 4.0W (max) |
| Power Consumption (100G End) | 2.3W (typical), 2.5W (max) |
| Power Supply Voltage | 3.15V – 3.47V |
| Operating Case Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% – 85% (non-condensing) |
| Input Swing | 300 – 900 mV |
| Output Swing | 300 – 900 mV |
| Bit Error Ratio | ≤ 2.4 × 10⁻⁴ (Pre-FEC) |
| Compliance Standards | IBTA InfiniBand HDR, IEEE 802.3cd 200GBASE-SR4, MSA |
| Certifications | RoHS Compliant, Lead-Free, TAA Compliant |
| Warranty | Limited Lifetime Warranty |
