Description

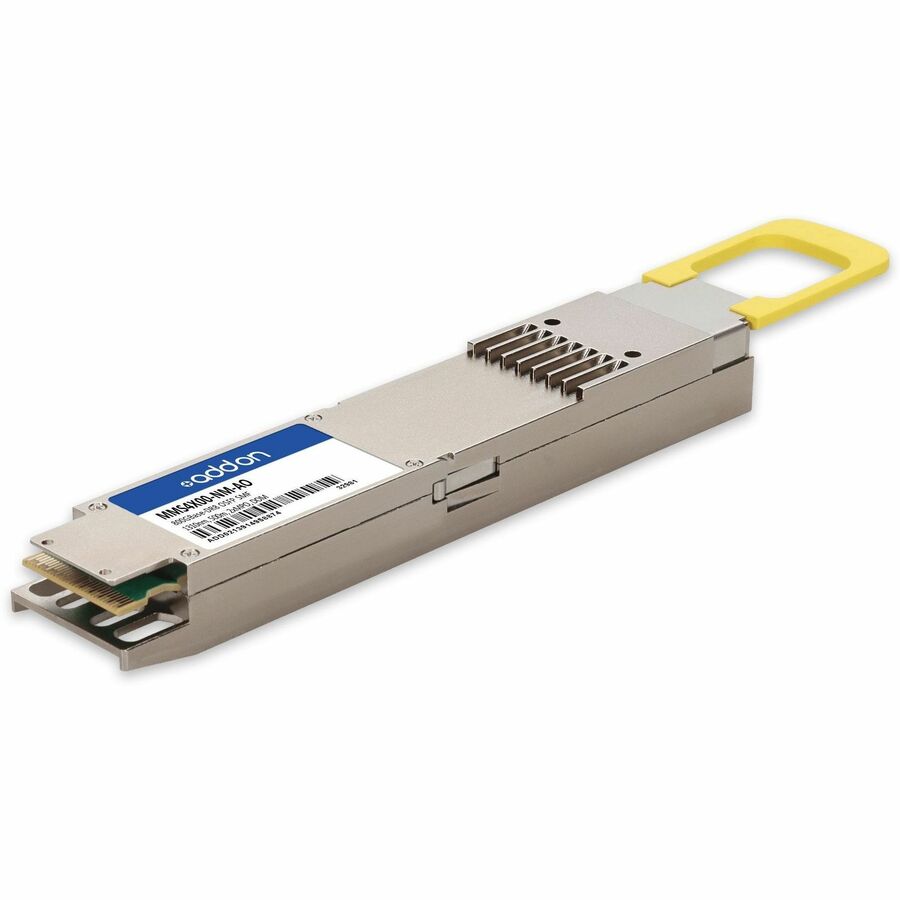

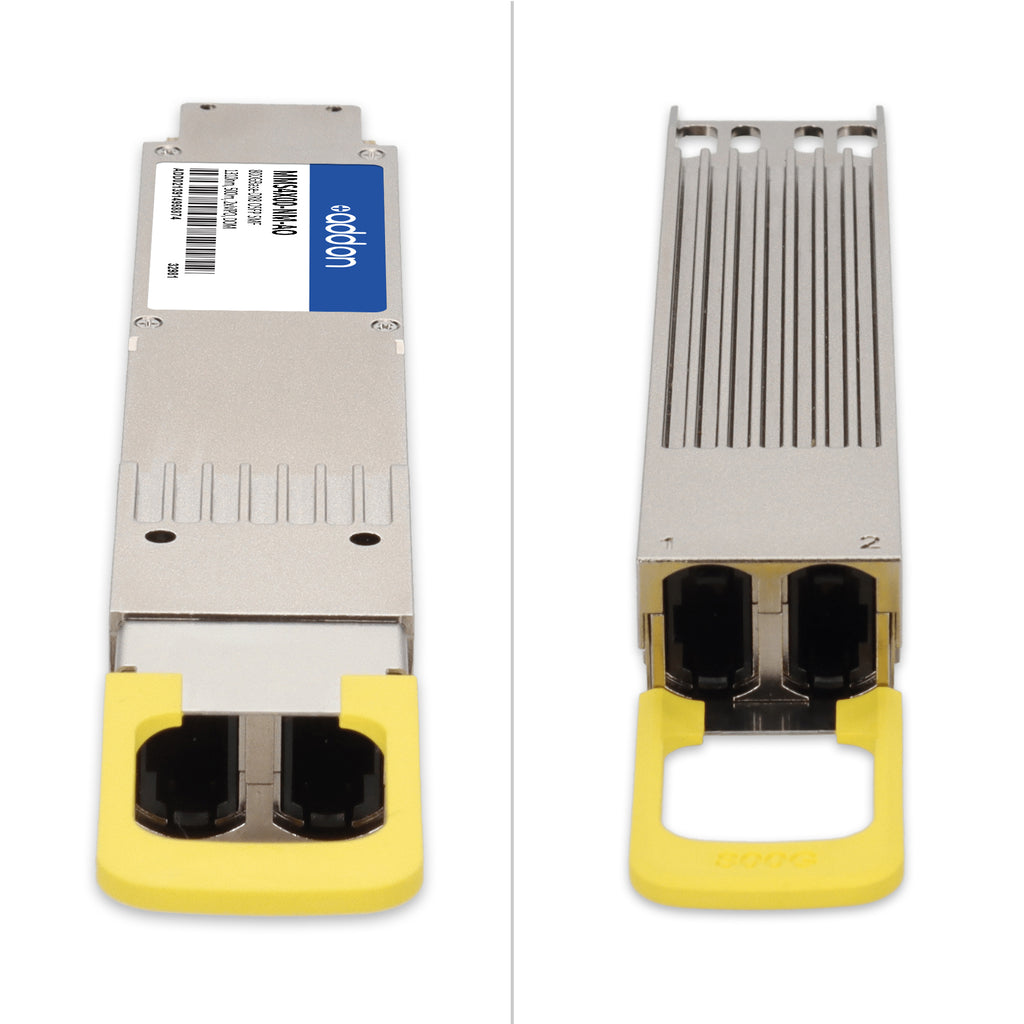

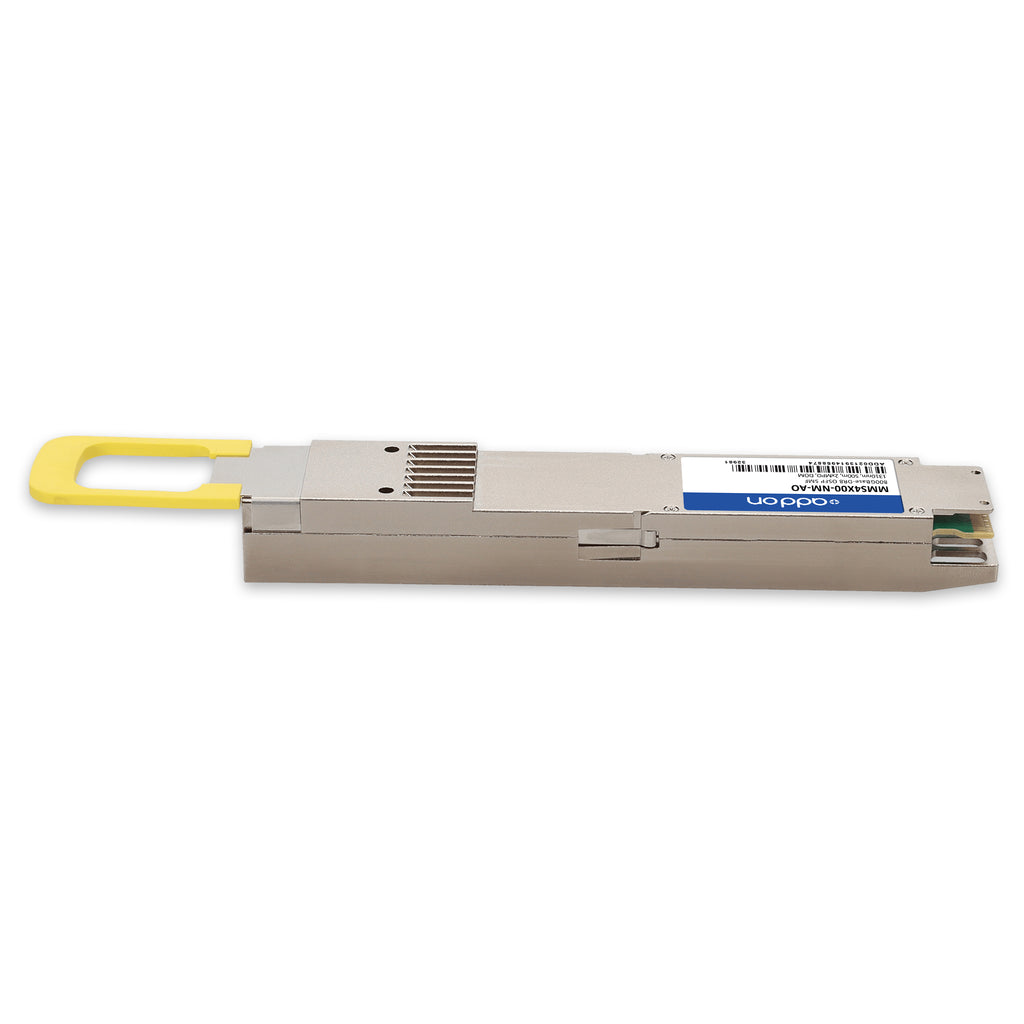

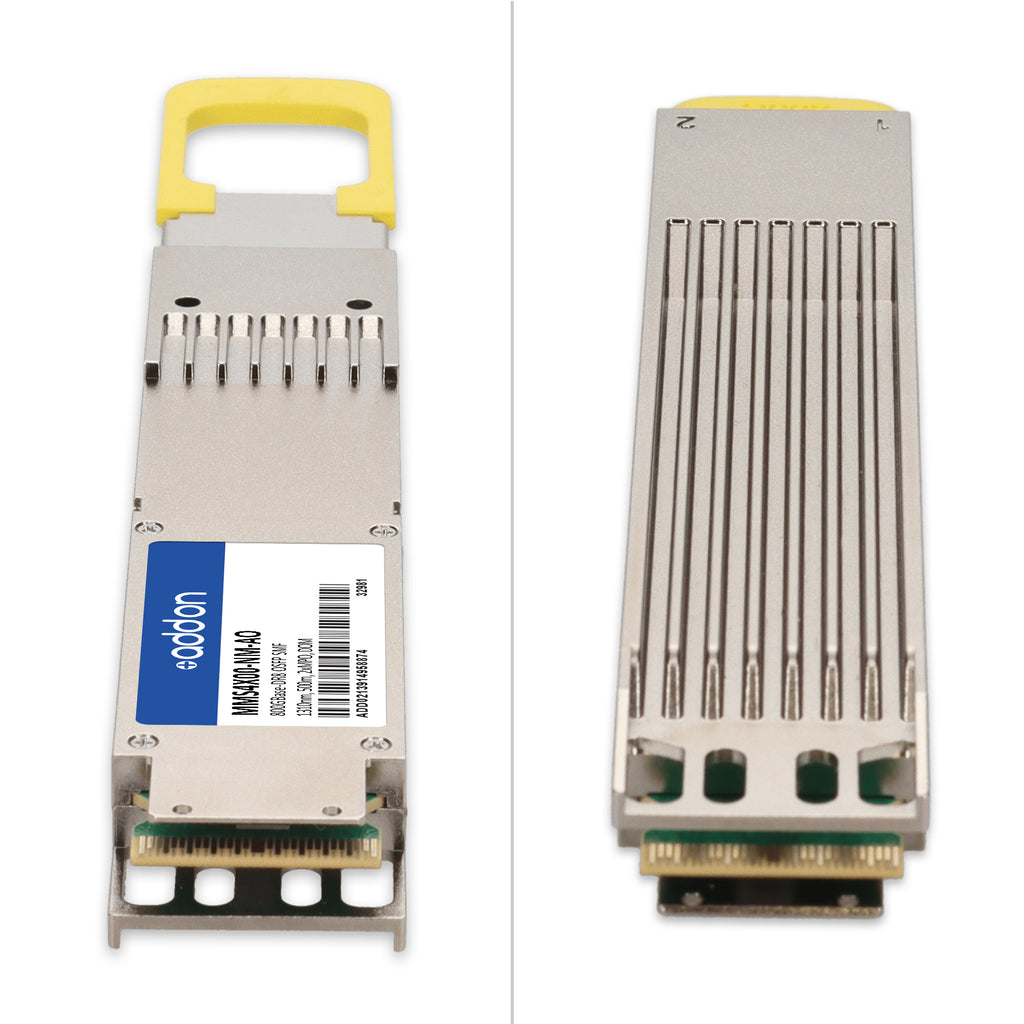

The AddOn Mellanox® MMS4X00-NM Compatible TAA 800GBase-DR8 PAM4 OSFP Transceiver delivers high-speed optical connectivity with support for 800G Ethernet throughput up to 500 m over single-mode fiber (SMF). Operating at a 1310 nm wavelength and utilizing 2×MPO-12 APC connectors, this hot-swappable transceiver ensures seamless integration into high-performance data center, cloud, and AI network infrastructures.
Built to meet or exceed OEM specifications, it is 100% compatible with the equivalent Mellanox® transceiver and fully compliant with IEEE 802.3cu-2021 and IEEE 802.3ck-2022 standards. Featuring 8×53.125 GBd PAM4 lanes, EML transmitters, PIN PD receivers, and DOM (Digital Optical Monitoring) support, it enables precise monitoring of real-time operating parameters. The module is also CMIS 5.0 compliant, TAA (Trade Agreements Act) compliant, RoHS-certified, and comes backed by AddOn’s limited lifetime warranty for unmatched reliability and performance.
Ideal for hyperscale data centers, HPC clusters, and next-generation Ethernet or InfiniBand NDR deployments, this OSFP transceiver offers scalable, high-bandwidth connectivity for the most demanding network environments.
| Specification | Details |
|---|---|
| SKU | MMS4X00-NM-AO |
| Compatible OEM | Mellanox® |
| Form Factor | OSFP |
| Data Rate | 800 Gbps |
| Ethernet Support | 2×400G Ethernet, 8×100G Ethernet |
| Interface Type | PAM4 |
| Wavelength | 1310 nm |
| Reach | Up to 500 m |
| Fiber Type | SMF (Single-Mode Fiber) |
| Connector | 2×MPO-12 APC |
| Optical Interface Standard | IEEE 802.3cu-2021 (8×100GBASE-DR) |
| Electrical Interface Standard | IEEE 802.3ck-2022 (8×100GAUI-1 C2M) |
| Electrical Signaling | 8×53.125 GBd |
| Transmitter Type | EML |
| Receiver Type | PIN PD |
| Digital Diagnostics | DOM (Digital Optical Monitoring) |
| Management Interface | CMIS 5.0 |
| Laser Class | Class 1 |
| Operating Temperature | 0 °C to 70 °C |
| Power Dissipation (Max) | 16.5 W |
| Hot-Swappable | Yes |
| Compliance | OSFP MSA, RoHS, TAA |
| Warranty | Limited Lifetime Warranty |
