Description

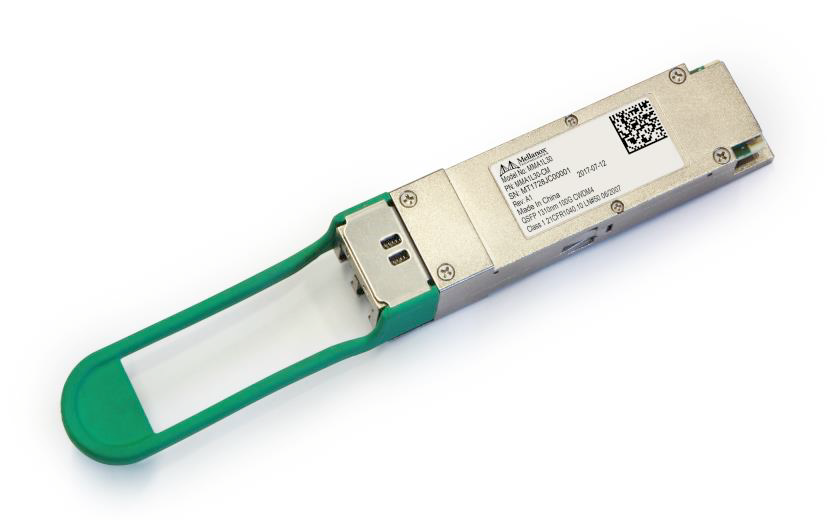

The NVIDIA Mellanox MMA1L30-CM is a single-mode, 4-channel CWDM4 QSFP28 optical transceiver for 100 Gigabit Ethernet links of up to 2km over single-mode fiber. It is also qualified for InfiniBand EDR end-to-end systems. The module converts four 25Gb/s electrical channels into four CWDM optical signals and multiplexes them onto a single fiber at a nominal 1310nm wavelength. On the receive side, it demultiplexes the incoming signal back into four electrical channels.
The transceiver uses a duplex LC/UPC connector for a pair of single-mode fibers and supports selectable retiming as specified in SFF-8636, which allows use in both 40GbE and 100GbE applications. Digital diagnostic monitoring of temperature, supply voltage and optical power is available through the I²C management interface. Maximum power consumption is 3.5W from a single 3.3V supply.
Product Highlights
- 100GbE QSFP28 CWDM4 single-mode optical transceiver
- Reach up to 2km over single-mode fiber
- 1310nm nominal wavelength, duplex LC/UPC connector
- Qualified for InfiniBand EDR end-to-end systems
- Selectable retiming for 40GbE and 100GbE applications
- Digital diagnostic monitoring through the I²C interface
- 3.5W maximum power consumption, Class 1 laser, RoHS compliant
Technical Specifications
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| Manufacturer Part Number | MMA1L30-CM |
| Product Type | Optical Transceiver |
| Data Rate | 100Gb/s (4x 25.78Gb/s per lane) |
| Applications | 100G Ethernet; qualified for InfiniBand EDR end-to-end systems |
| Form Factor | QSFP28 |
| Optical Technology | CWDM4, CWDM EML laser and PIN receiver array |
| Wavelength | 1310nm nominal |
| Optical Connector | Duplex LC/UPC |
| Fiber Type | Single-mode |
| Link Distance | 2m to 2,000m with G.652 rated fiber |
| Electrical Interface | CAUI-4 |
| Standards | SFF-8665 Rev 1.9, SFF-8636 Rev 2.6, CWDM4 MSA Rev 1.1, IEEE 802.3bm CAUI-4 |
| Supply Voltage | 3.3V (3.135–3.465V) |
| Power Consumption | 3.5W max |
| Operating Case Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Management | Two-wire serial interface with digital diagnostic monitoring |
| Laser Safety | Class 1 |
| Other | RoHS compliant |
