Description

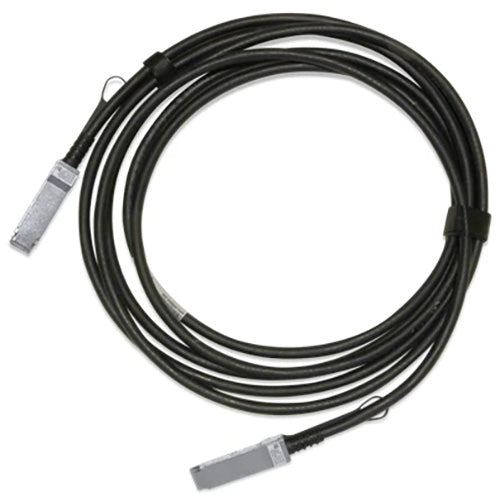

The NVIDIA Mellanox MCP1600-E001E30 is a 1m passive direct attach copper cable for 100Gb/s InfiniBand EDR applications. It connects two QSFP28 ports through four high-speed copper pairs, each running at up to 25Gb/s.
Designed for short in-rack links, the cable draws a maximum of 0.1W and is rated for a BER better than 1E-15 with Mellanox systems. The black 30AWG cable has an LSZH jacket and a 7.1mm diameter. Each QSFP28 port includes an EEPROM that the host can read through an SFF-8636 compliant I²C management interface.
Product Highlights
- InfiniBand EDR QSFP28 to QSFP28 DAC cable, up to 100Gb/s
- 1m length, 30AWG passive copper
- BER better than 1E-15 with Mellanox systems
- 0.1W max power consumption, single 3.3V supply
- LSZH jacket
- Hot pluggable, RoHS compliant
Technical Specifications
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| Manufacturer Part Number | MCP1600-E001E30 |
| Product Type | Passive Copper Direct Attach Cable (DAC) |
| Protocol | InfiniBand EDR |
| Data Rate | Up to 100Gb/s |
| Connectors | QSFP28 to QSFP28 |
| Cable Length | 1m |
| Length Tolerance | ±25mm |
| Wire Gauge | 30AWG |
| Cable Diameter | 7.1 ± 0.35mm |
| Minimum Bend Radius | Single bend: 35.5mm; repetitive and assembly bend: 71mm |
| Color | Black |
| Jacket | LSZH (Low Smoke Zero Halogen) |
| Supply Voltage | 3.3V (3.135–3.465V) |
| Power Consumption | 0.1W max |
| Characteristic Impedance | 90–110Ω (100Ω typical) |
| Operating Case Temperature | 0°C to 70°C |
| Operating Relative Humidity | 5% to 85% |
| Storage Temperature | -40°C to 85°C |
| Standards | SFF-8665, SFF-8636 |
| Other | Hot pluggable, RoHS compliant, lead-free and halogen-free PCB |
