Description

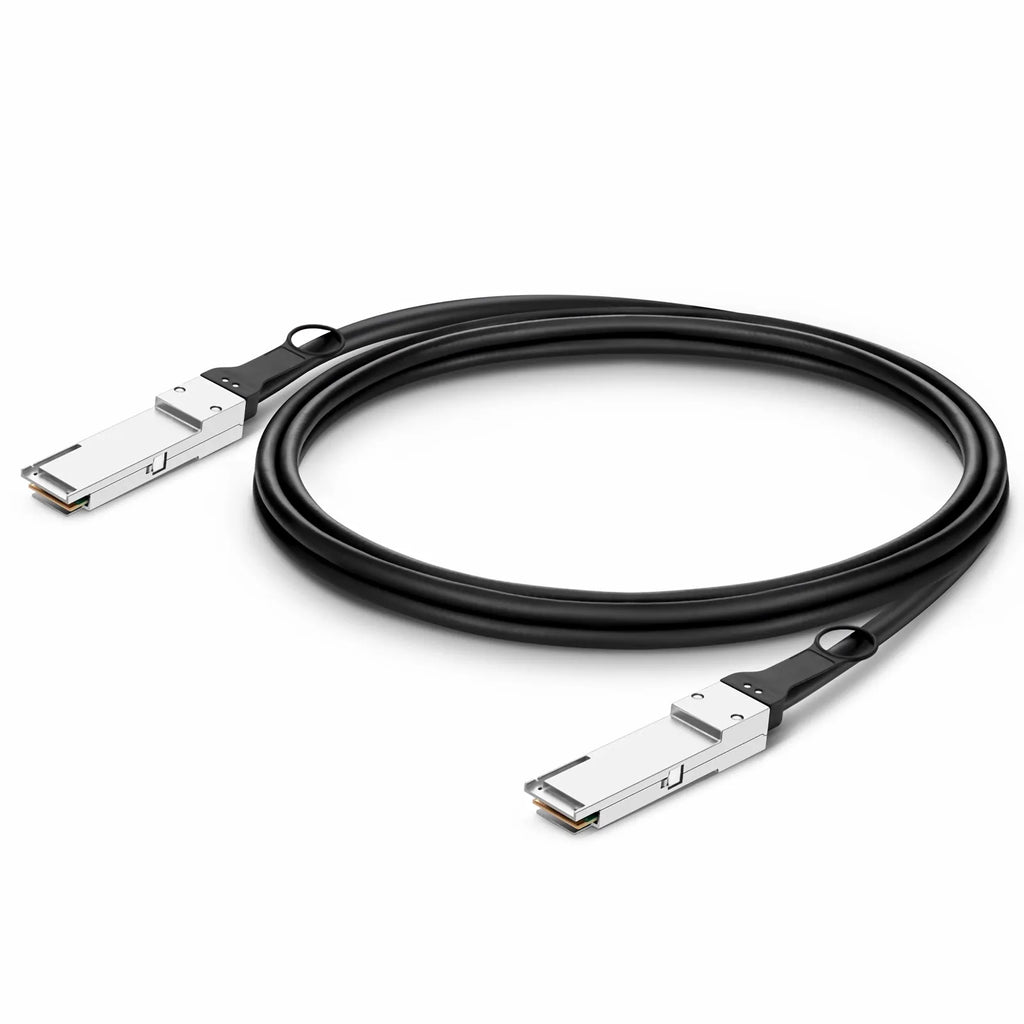

The NVIDIA Mellanox MCP1650-H002E26 is a 2m passive direct attach copper cable for 200Gb/s InfiniBand HDR. It links two QSFP56 ports. It contains eight high-speed copper pairs, each running at up to 50Gb/s, and uses 4x 50Gb/s PAM4 modulation.
As a power-efficient alternative to optical links for short distances, this cable draws a maximum of 0.1W and is rated for a BER better than 1E-15 with Mellanox InfiniBand HDR systems. The 26AWG cable has an LSZH jacket and a black pulltab. Each QSFP56 end includes an EEPROM that the host can read through an SFF-8636 compliant I²C interface.
Product Highlights
- 200Gb/s InfiniBand HDR QSFP56 to QSFP56 DAC cable
- 2m length, 26AWG passive copper
- 4x 50Gb/s PAM4 modulation
- BER better than 1E-15 with Mellanox InfiniBand HDR systems
- 0.1W max power consumption, single 3.3V supply
- LSZH jacket, black pulltab
- Hot pluggable, RoHS compliant
Technical Specifications
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| Manufacturer Part Number | MCP1650-H002E26 |
| Product Type | Passive Copper Direct Attach Cable (DAC) |
| Protocol | InfiniBand HDR |
| Data Rate | Up to 200Gb/s |
| Connectors | QSFP56 to QSFP56 |
| Modulation | 4x 50Gb/s PAM4 |
| Cable Length | 2m |
| Wire Gauge | 26AWG |
| Cable Diameter | 9.4 ± 0.4mm |
| Minimum Bend Radius | Single bend: 47mm; assembly/repeated bend: 94mm |
| Jacket | LSZH (Low Smoke Zero Halogen) |
| Pulltab | Black |
| Supply Voltage | 3.3V (3.135–3.465V) |
| Power Consumption | 0.1W max |
| Characteristic Impedance | 90–110Ω (100Ω typical) |
| Operating Case Temperature | 0°C to 70°C |
| Operating Relative Humidity | 5% to 85% |
| Storage Temperature | -40°C to 85°C |
| Standards | IBTA InfiniBand HDR, SFF-8665, SFF-8636 |
| Other | Hot pluggable, RoHS compliant, lead-free and halogen-free PCB |
