Description

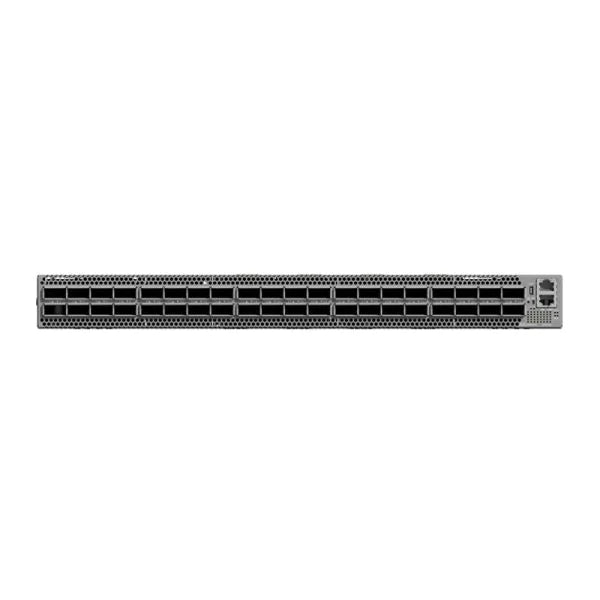

The NVIDIA Mellanox MQM8700-HS2R is a 40-port, non-blocking, managed HDR 200Gb/s InfiniBand smart switch in a 1U chassis. Built on the Mellanox Quantum switch device, it delivers up to 16Tb/s of aggregate throughput with sub-130ns port-to-port latency. It suits top-of-rack leaf connectivity and clusters of any size. With splitter cables and ConnectX-6 adapters, it can run up to 80 ports of HDR100 100Gb/s.
The switch supports in-network computing through SHARP (Scalable Hierarchical Aggregation and Reduction Protocol), which accelerates collective operations used in MPI and machine learning workloads. Adaptive routing, congestion control, and VL mapping support modern topologies such as SlimFly, Dragonfly+, and 6DT. An onboard x86 CPU runs MLNX-OS and a built-in subnet manager for fabrics of up to 2K nodes. Management is available through CLI, WebUI, SNMP, and JSON. This model ships with two hot-swappable AC power supplies, hot-swappable fans, C2P (connector-side inlet) airflow, and a rail kit.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | NVIDIA Mellanox |
| MPN | MQM8700-HS2R |
| Product Type | Managed HDR InfiniBand Switch |
| Switch Device | Mellanox Quantum |
| Ports | 40 x QSFP56, HDR 200Gb/s, non-blocking |
| HDR100 Support | Up to 80 x 100Gb/s ports with splitter cables |
| Aggregate Throughput | 16Tb/s |
| Latency | Sub-130ns port-to-port |
| Standards | IBTA 1.21 and 1.3 compliant |
| Virtual Lanes | 9 (8 data + 1 management) |
| MTU | 256 bytes to 4KB |
| Forwarding Database | 4X48K entry linear |
| Advanced Features | SHARP collective offloads, adaptive routing, congestion control, port mirroring, VL2VL mapping |
| CPU | x86 ComEx Broadwell, dual core |
| Fabric Management | Onboard subnet manager (up to 2K nodes), UFM agent |
| Management Interfaces | CLI, WebUI, SNMP v1/v2/v3, JSON, IPv6, DHCP |
| Management Ports | 100/1000 RJ45 Ethernet, RS232 console, USB |
| Cabling | Passive copper, active fiber, optical modules |
| Power Supplies | 2 x AC, 1+1 redundant, hot-swappable, 80 Plus Gold+ and ENERGY STAR certified |
| Input Range | 100β127VAC, 200β240VAC, 50β60Hz single phase, 4.5A / 2.9A |
| Cooling | N+1 redundant hot-swappable fans |
| Airflow | C2P (connector-side inlet) |
| Chassis | 1U, 19-inch rack mount, standard depth |
| Included | Rail kit |
| Indicators | Per-port link/activity LEDs; system, fan, and PSU LEDs; unit ID LED |
| Operating Temperature | 0Β°C to 40Β°C |
| Non-Operating Temperature | -40Β°C to 70Β°C |
| Operating Humidity | 10% to 85% non-condensing |
| Altitude | Up to 3200m |
| Safety | CB, cTUVus, CE, CU |
| EMC | CE, FCC, VCCI, ICES, RCM |
| Acoustic | ISO 7779, ETS 300 753 |
| Compliance | RoHS |
| Warranty | 1 year |
