Description

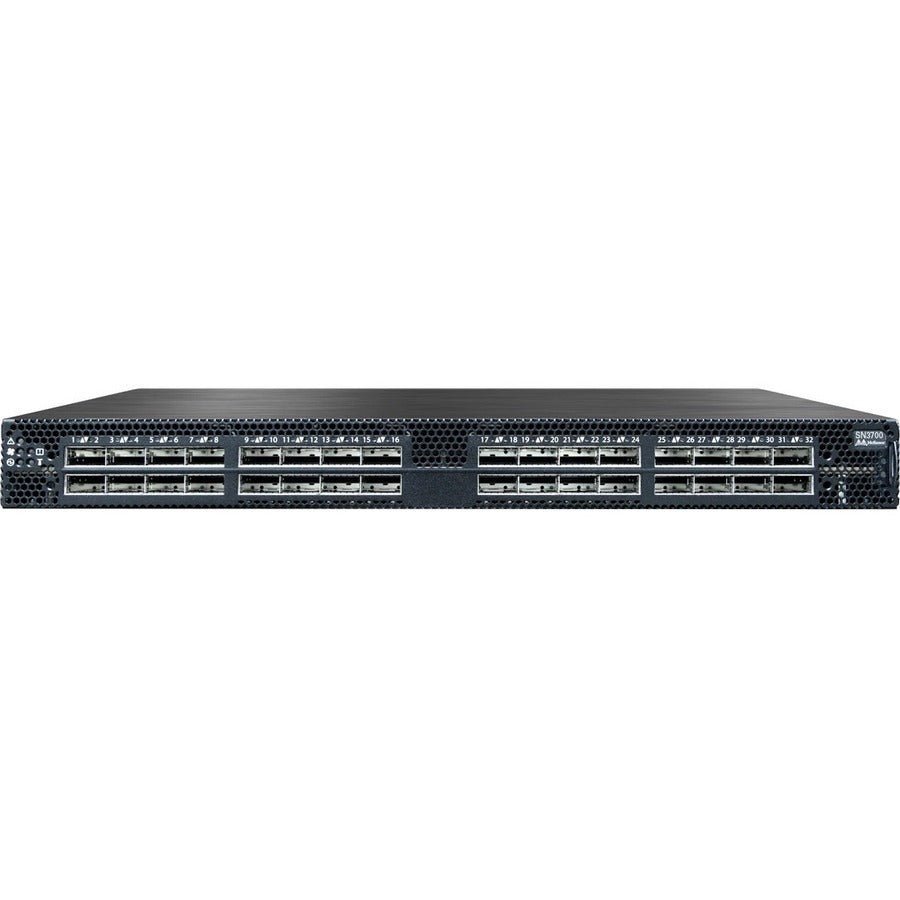

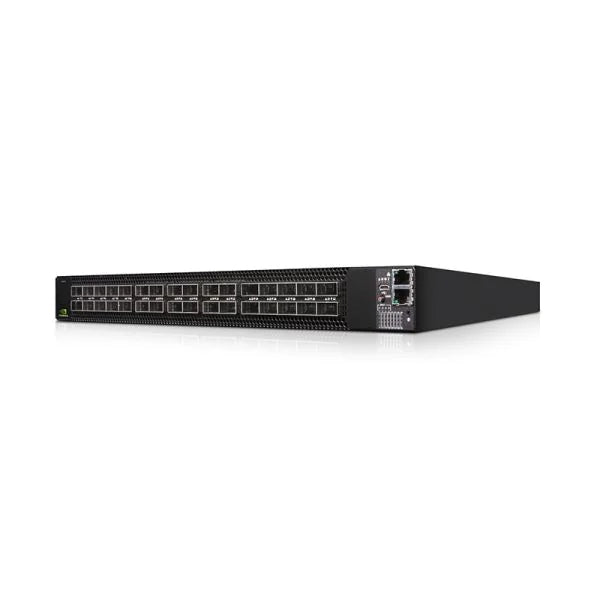

The NVIDIA Mellanox Spectrum-2 MSN3700-VS2RC is a high-performance 200GbE Open Ethernet switch built for next-generation data centers. Designed on the advanced Spectrum-2 ASIC, it delivers 12.8 Tbps switching capacity and 8.33 billion packets per second (Bpps) throughput in a compact 1U form factor.
Pre-installed with Cumulus Linux, the MSN3700-VS2RC brings open networking flexibility to operators seeking full control over their software environment. It supports 32 QSFP56 ports configurable for multiple speeds (10GbE to 200GbE), enabling seamless integration into leaf, spine, and super-spine architectures.
Engineered for superior reliability and efficiency, this model features dual hot-swappable AC power supplies, N+1 redundant fans with C2P airflow, and advanced telemetry with What Just Happened® (WJH) technology for deep visibility. Combined with programmable pipelines, VXLAN routing, and RoCE transport, the SN3700 series ensures cloud-scale agility, consistent low latency, and maximum uptime for demanding workloads such as AI/ML, cloud, and hyperscale environments.
| Specification | Description |
|---|---|
| Model | NVIDIA Mellanox Spectrum-2 MSN3700-VS2RC |
| Switch ASIC | Mellanox Spectrum-2 |
| Form Factor | 1U Rackmount |
| Operating System | Cumulus Linux |
| Ports | 32 × QSFP56 (up to 200GbE each) |
| Port Speeds Supported | 10/25/40/50/100/200GbE |
| Throughput | 12.8 Tbps |
| Packets per Second | 8.33 Bpps |
| Latency | 425 ns |
| CPU | x86 Quad-core |
| System Memory | 8 GB |
| Storage (SSD) | 32 GB |
| Packet Buffer | 42 MB |
| Power Supplies | 2 × AC (1+1 Redundant, Hot-swappable) |
| Fan Modules | 6 × Hot-swappable, N+1 Redundant (C2P airflow) |
| Airflow Direction | C2P (Cold to Power) |
| Management Ports | 1 × 100/1000MbE, 1 × RJ45 serial, 1 × USB |
| Dimensions (H × W × D) | 1.72" × 16.84" × 22" (44 mm × 428 mm × 559 mm) |
| Weight | 11.1 kg (24.5 lb) |
| Power Requirements | 100–264V AC, 50–60Hz |
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | 5%–85% |
| Compliance | CE, FCC, VCCI, RCM, cTUVus, RoHS |
| Warranty | 1-Year Limited Hardware Return-and-Repair Warranty |
| Included Accessories | Rail Kit, Power Cables |
