Description

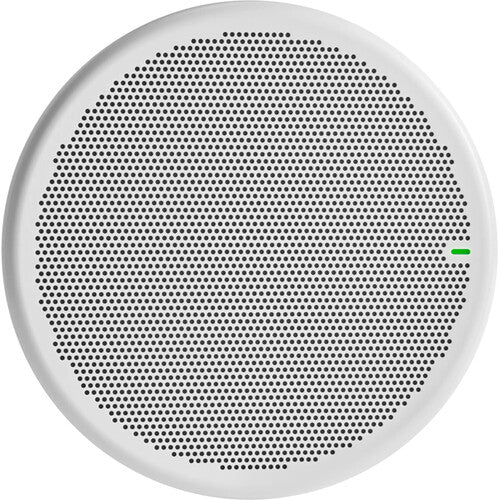

The Shure Microflex Advance MXA901-R Ceiling Array Microphone in white delivers premium, discreet audio capture for modern conferencing environments. Designed with a sleek 13.5-inch round form factor, it blends seamlessly into any ceiling while providing powerful, room-filling voice pickup. Equipped with 85 integrated MEMS microphones, the MXA901 offers Single-Zone Automatic Coverage™, capturing every participant clearly within a 20 x 20 ft area without requiring complex setup.
Built-in IntelliMix DSP ensures consistently clear communication by automatically focusing on active speakers while applying acoustic echo cancellation, noise reduction, and automatic gain control. This results in natural, intelligible speech for meetings, presentations, and collaboration sessions. Its networked audio capabilities with Dante and AES67, combined with PoE power and seamless integration into the Shure Microflex ecosystem, make it an enterprise-ready solution for scalable AV deployments.
Whether used in small meeting rooms or combined across larger spaces, the MXA901-R provides reliable, secure, and high-performance audio conferencing with minimal installation effort.
| Specification | Details |
|---|---|
| Compatibility | Shure Microflex Advance Ecosystem |
| Microphone Type | 85 x MEMS Microphones |
| Coverage Area | 20 x 20 ft (6.1 x 6.1 m) |
| Coverage Type | Single-Zone Automatic Coverage™ |
| Frequency Response | 100 Hz to 20 kHz |
| Dynamic Range | 71.5 dB |
| Signal-to-Noise Ratio | 67.1 dB A-Weighted |
| Maximum SPL | 98.4 dB SPL |
| Sensitivity | -4.4 dBFS/Pa at 1 kHz |
| Self Noise | 26.9 dB SPL (A-Weighted) |
| Latency | 33.5 ms (excluding Dante latency) |
| DSP Functions | Automatic Mixing, AEC, Noise Reduction, AGC, Compressor, Delay, 4-Band EQ, Mute, Gain |
| AEC Tail Length | Up to 250 ms |
| Audio Networking | Dante, AES67 |
| Digital Output | 1 x RJ45 |
| Channels | 2 (1 Automix Output, 1 AEC Reference) |
| Sample Rate | 48 kHz |
| Bit Depth | 24-bit |
| Power Source | Power over Ethernet (PoE) |
| Power Consumption | 10.1 W Maximum |

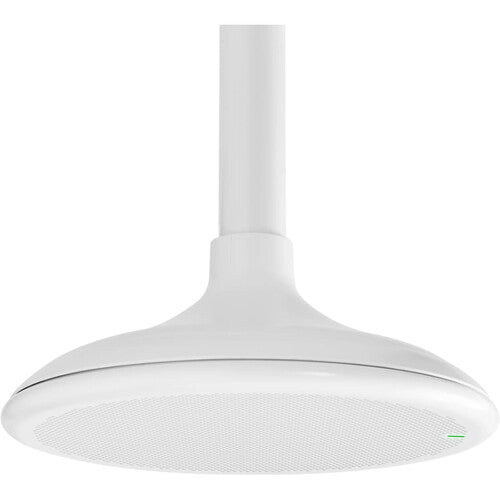

| Mounting Options | Ceiling-mounted (flush, surface, or suspended) |
| Environmental Protection | Dust-resistant (IP5X) |
| Operating Temperature | 20°F to 104°F (-6°C to 40°C) |
| Storage Temperature | -20°F to 165°F (-28°C to 73°C) |
| Dimensions | 13.5 in (342.9 mm) Diameter |
| Weight | 5 lb (2.3 kg) |
| Certifications | CE, FCC, REACH, UKCA, UL2043, WEEE |
| Included Accessories | Network Port Cover, Surface Mount, Round VESA Bracket, Mounting Screws |
| Warranty | 2-Year Limited Manufacturer Warranty |
